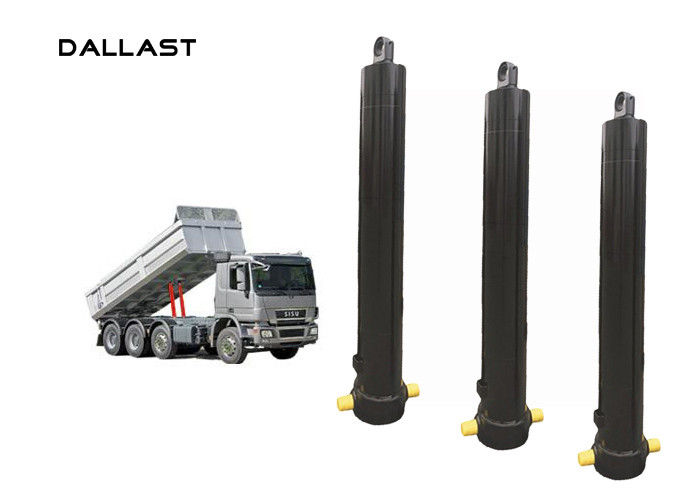

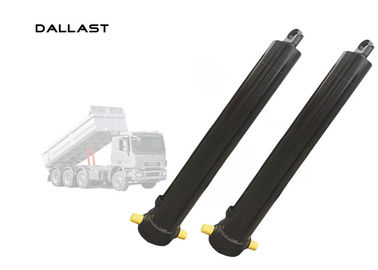

Single Acting Telescopic Long Stroke Dump Truck Hydraulic Cylinder

Single Acting Telescopic Long Stroke Dump Truck Hydraulic Cylinder

    • Single Acting Telescopic Long Stroke Dump Truck Hydraulic Cylinder
    • Single Acting Telescopic Long Stroke Dump Truck Hydraulic Cylinder
  • Single Acting Telescopic Long Stroke Dump Truck Hydraulic Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Painting: Anti Rust Painting Maximum Stroke: Requirements
    Factory Visit: Available Type: Hydraulic Single Cylinder
    Extended Stages: 3-7 Stages Hydraulic System: Multi-Stage

    Single Acting Telescopic Long Stroke Dump Truck Hydraulic Cylinder



    Specification

    Type Lifting capacity pressure Bore diameter (mm)
    FE-3-E158*3880 28.3  Ton 16 MPa 158/136/115
    FE-3-E158*4090 28.3 Ton 16MPa 158/136/115
    FE-4-E158*4280 28.3Ton 16MPa 158/136/115/95
    FE-4-E158*4650 28.3Ton 16MPa 158/136/115/95
    FE-4-E158*4940 28.3Ton 16MPa 158/136/115/95
    FE-4-E175*4280 49Ton 16MPa 175/158/136/115
    FE-4-E175*4620 49Ton 16MPa 175/158/136/115
    FE-4-E175*5180 49Ton 16MPa 175/158/136/115
    FE-5-E175*5780 49Ton 16MPa 175/158/136/115/95
    FE-5-E175*6180 49Ton 16MPa 175/158/136/115/95
    FE-6-E175*6060 49Ton 16MPa 175/158/136/115/95/70
    FE-6-E175*6060 49Ton 16MPa 175/158/136/115/95/70
    FE-5-E200*6180 64Ton 16MPa 200/175/158/136/115
    FE-5-E200*6350 64Ton 16MPa 200/175/158/136/115



    Model

    Largest Stage Diameter

    mm

    Stroke

    mm

    Mounting distance

    mm

    DALLAST FE-3-110-3205 110 3205 1449
    DALLAST FE-3-110-3460 110 3460 1609
    DALLAST FE-3-129-3460 129 3460 1449
    DALLAST FE-3-129-3880 129 3880 1609
    DALLAST FE-3-149-2900 149 2900 1320
    DALLAST FE-3-149-3200 149 3200 1420
    DALLAST FE-3-149-3500 149 3500 1520
    DALLAST FE-3-149-3880 149 3880 1644
    DALLAST FE-4-149-4280 149 4280 1450
    DALLAST FE-4-149-4940 149 4940 1529
    DALLAST FE-4-149-4620 149 4620 1484
    DALLAST FE-4-169-4280 169 4280 1394
    DALLAST FE-4-169-4450 169 4450 1437
    DALLAST FE-4-169-4620 169 4620 1479
    DALLAST FE-4-169-4940 169 4940 1529
    DALLAST FE-4-169-5000 169 5000 1574
    DALLAST FE-4-169-5180 169 5180 1604



    Good choice for our hydraulic cylinder

    1. Merge together with Europe security idea
    Our whole set hydraulic cylinder system with multi-protection can protect the safety of worker &truck and cargo.

    2. Specialized system configuration
    Specialized system configuration that greatly improve work efficiency and reduce system weight.

    3. Custom made is available

    We can design different hydraulic system for truck, lifting platform, construction machine, engineering machine, marine and so on.



    Quality Control
    1. Cylinder products from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ TS 16949: 2009)

    2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.

    3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding





    FAQ:

    Q1: Have you been exported high pressure hydraulic cylinder to overseas?

    A1: We have been exporting agriculture hydraulic cylinder to USA, Canada, Germany, Italy, France, Russia, etc.



    Q2: How long does it take to process orders?

    A2: It usually takes 20-30 days to process.



    Q3: Can I order high pressure hydraulic cylinder samples for testing?

    A3: Of course, our high pressure hydraulic cylinder quality will satisfy you.



    Q4: high pressure hydraulic cylinder Quality control

    A4: All the high pressure hydraulic cylinder is calibrated with real working condition, and tested before shipping as qualified product.



    Q5: How long is your warranty period?

    A5: We offer 12 months warranty period after on board.



    Q6: Lifetime service

    A6: Any problem happened to our high pressure hydraulic cylinder, we will do our best to help client to solve it
