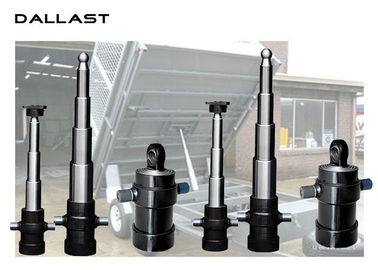

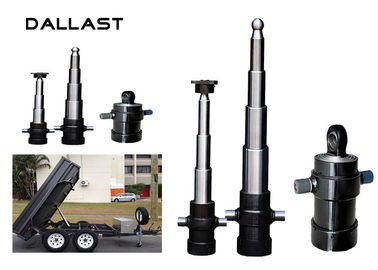

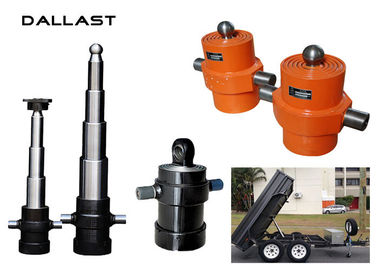

Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder

Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder

    • Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder
    • Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder
    • Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder
  • Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Adjusted Form: Regulated Type Hydraulic System: Multi-Stage
    Body Material: According To User Requirements Place Of Origin: Shandong
    Model Number: 3TG/4TG/5TG Material: Hard Chrome Piston Rod

    Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder



    Application and types

    This series of hydraulic cylinder includes multistage single acting telescopic front end hydraulic cylinder and underbody hydraulic cylinder, mainly used for all kinds of dump trucks, tippers, trailers, tractors, other dump vehicles and machine

    Material 45#
    Tempering hardness HB240-260
    The depth of the high frequency 2mm-3mm
    High frequency hardness HRC55°±2°
    Chrome plating thickness 0.03mm-0.06mm
    Chromium layer hardness HV800-1000vpn
    Straightness ≤0.08mm/m
    Surface roughness Ra0.03um- Ra0.06um
     Heat Treatment Quenching
    Structure Telescopic Sleeve Cylinder



    Specifications:

    1. Piston rod end connection mode: rod end screw
    In the end of the thread rod (for D-63mm diameter)
    End of the rod end of the threaded rod end of the earrings with bushing
    Rod end inner threaded rod head earrings with bushing
    Rod end threaded rod head earrings for joint bearing
    Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
    Integral piston rod and ring belt bushing
    Integral piston rod ring joint bearing



    2. Installation: cylinder head earrings with bushing
    Cylinder head earrings with joint bearing/hinge axis/end flange/middle flange



    Special Features:

    1. Plate hard chrome, copper to prevent corrosion;

    2. Used for steering;

    3. ISO9001

    4. Good service





    Advantage of our production

    1. Use a new rolling technology to ensure the precision of cylinder inside hole is very high

    2. The thickness of cylinder up to 16mm, it can meet the strength requirement when the truck is overloaded

    3. The diameter of piston rod reaches 90mm, it will not be bending under normal use

    4. Use 3 seal-rings to seal piston rod, it can life-long use



    40-200 mm diameter up to 10 meters length all kind of hydraulic cylinders are in our product range. Contact with us and we will solve your all kind of hydraulic problems. We can easily competitive with our high-quality equipment’s and with our quite less prices.

    We can produce all kind of special designs according to your requests.



    FAQ:

    1. What is the price of the product?
    Our prices are based on the size, special treatment and type of mounting style, if you can give me the information, then we can give you an estimated price is for reference only. We can do any size and any color.

    2. How about your delivery time?
    Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    3. How to ship?
    Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.






    Telescopic Multi stage Dumper Long Stroke Single Acting Hydraulic Lift Cylinder
