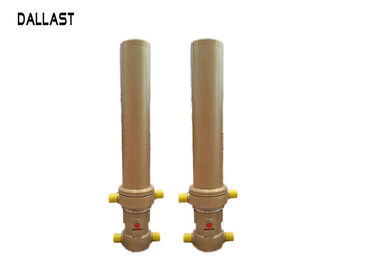

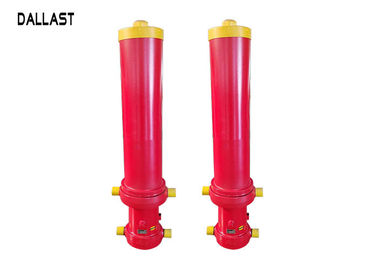

    Single Acting Hollow Plunger Hydraulic Cylinder Telescopic Multistage for Dump Truck



    Product introduction:

    Telescopic hydraulic cylinder consists of two or more piston-cylinder assembly, the piston is a cylinder piston cylinder after the cylinder, can get a long working stroke. An important part of DALLAST Corporation's extensive list of custom capabilities is multistage telescopic hydraulic cylinders. Many applications needs for exceptionally long strokes coming from shorter, more compact units. Other applications require unique mounting to achieve their required stroke.

    DALLAST has years of rich experience to meet customers’ requirements by manufacturing these type cylinders for these type needs.



    Application:

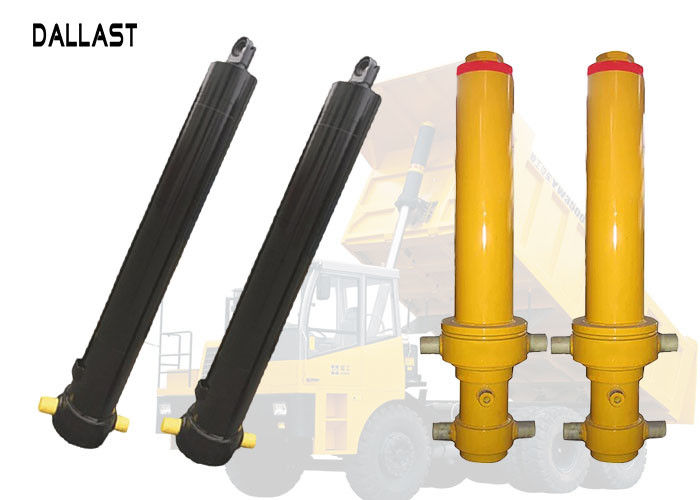

    It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements. Truck front lifting cylinder is the dumper hydralic lifting system for lifting actuator, truck compartment or tank.






    Models
    Extension First Stage
    Bore Dia (mm)

    Stroke
    (mm)

    Top trunnion (mm)

    Bottom trunnion
    (mm)

    Lug dia (mm)


    Closed length (mm )

    Pressure (MPa)
            ID OD ID OD
    3TG-F85*2743EZ-00 3 85 2743 / / 165.1 228.5 32 195 20
    4TG-F150*4280EZ-00 4 150 4280 / / 201 331 60 1394 20
    4TG-F172*4280ZZ-00 4 172 4280 340 470 245 385 60 343 20
    4TG-F182*4280ZZ-00 4 182 4280 340 470 245 385 60 343 20
    5TG-F196*6180ZZ-00 5 196 6180 360 490 270 400 60 343 20
    5TG-F206*7300ZZ-00 5 206 7300 360 490 270 400 65 343 20
    5TG-F221*9030ZZ-00 5 221 9030 360 490 290 420 65 486 20
    5TG-F248*9030ZZ-00 5 248 9030 420 560 342 480 75 486 20


    Any model could be customized, Please note that the regularly stocked telescopic cylinders above.

    Feel free to contact our office to place an order for quick delivery.









    Benefits:

    a. Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation.

    b. All cylinder products carry an 12 months warranty.

    c. Single-acting cylinders transfer force and motion in one direction only.

    d. It has FC, FE, FEE.

    e. It could be mounted in any position so that it could be used in a wide range of mobile and industrial applications.



    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional. The seal is the use of rubber or plastic seal of the elastic ring so that a variety of cross-section ring in the static and dynamic fit between the surface to prevent leakage. Common seal are O-shaped, Y-shaped, V-shaped and so on. It has the advantages of simple structure, easy manufacture, automatic compensation after wear, reliable performance, and can be used between the cylinder and the piston, between the cylinder head and the piston rod, between the piston and the piston rod, between the cylinder tube and the cylinder head.



    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.


    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension (Center of pin to center of pin)

    B. Stroke length (Inches)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI)

    F. Bore Diameter (Inches)

    G. Application details





    Warrenty:

    We offer 12 months warranty.


    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    5. Service Center all over the world for after sales problems.
