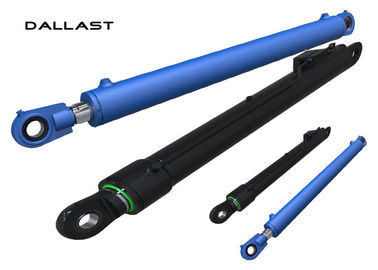

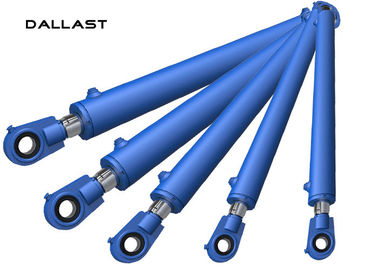

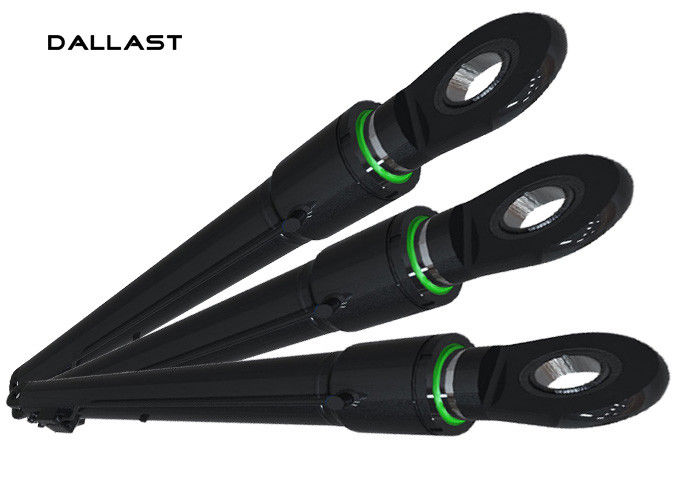

Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering

Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering

    • Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering
    • Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering
    • Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering
  • Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Model Number: OEM Service: After-sale Service
    Working Temperature: -30℃-80℃ Color: Optional
    Heat Treatment: Quenching Maximum Stroke: Requirements
    High Light:

    double acting hydraulic ram

    ,

    double ended hydraulic ram

    Industrial Heavy Marine Steering Double Acting Hydraulic Cylinder



    Related parameter:

    Type Hydraulic steering cylinder for vessel
    Model customized
    Bore diameter(mm)  70 80 63
    Piston rod diameter(mm)  40 50 35
    Stroke(mm)  300 300 356
    Working pressure(Psi)  2500 2500 2500
    Max torque(kg*m)  983 1363 707
    Volume(cc)  1932 2427 1350
    Anti-corrosion treatment Anti-corrosion paint & hard chrome and copper plating



    Specifications:

    1. Oil port connection: internal thread or flange

    2. cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80 mm diameter)

    3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffrt)

    Both ends with buffer

    without the rod side buffer(-2 ratio, only the clinder head with buffer)

    Rod side band buffer

    4. piston rod end connection mode: rod end screw

    In the end of the thread rod (for D-63 mm diameter)

    End of the rod end of the threaded rod end of the earrings with bushing

    Rod end inner threaded rod head earring with bushing

    Rod end threaded rod head earring for joint bearing

    Screw piston rod and ring belt bushing

    Integral piston rod ring joint bearing



    Models

    models strock bore(mm) the diameter of rod(mm) push(KN) tension(KN)
    HSGK01-160/90E-131 715 160 90 321.7 219.9
    HSGL01-100/60E-131 1200 100 60 125.66 87.65
    HSGK01-80/50E-131 700 80 50 101.79 70.37
    HSGK01-80/50E-131 640 80 50 101.79 70.37
    HSGK01-80/50/E-131 550 80 50 101.79 70.73
    HSGL01-80/50-131 500 80 50 80.43 54.98
    HSGL01-80/50E-131 440 80 50 80.43 43.41
    HSGL01-63/35E-131 200 63 35 50 34.5
    HSGL01-63/35E-131 300 63 35 50 34.5
    HSGL01-50/28E-131 140 50 28 31.42 21.56

    Features:

    Low friction hydraulic steering

    Easy installation on single and dual rudders

    Supplied with bleeder fittings

    Heavy duty brass construction

    hydraulic cylinder used for marine steering factory, welcome to contact us at any time!



    QC:

    1. Cylinder products from purchased materials, processing, assembly, have strict quality control. (we passed the certification of ISO/ TS 16949:2009)

    2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.



    3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding quality of the seal parts



    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.










    Industrial Double Acting Hydraulic Cylinder Heavy Marine Steering
