| Place of Origin: | shan dong |
| Brand Name: | DALLAST |
| Certification: | GS, RoHS, CE, ISO9001 |
| Model Number: | could be customized |
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | negotiated |
| Packaging Details: | carton box |
| Delivery Time: | 20-30 work days per year |
| Payment Terms: | T/T, Western Union, D/P, D/A, L/C |
| Supply Ability: | 60000 pieces |
| Acting Way: | Single Acting | Work Method: | Straight Trip |
|---|---|---|---|
| Stroke: | 200-12000mm | Temperature: | Normal Temperature |
| Pressure: | Medium Pressure | Function: | Dumper |
| High Light: | dump truck hydraulic ram,dump trailer hydraulic cylinder |
||

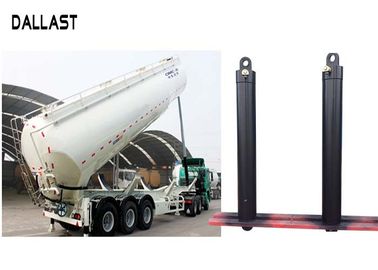

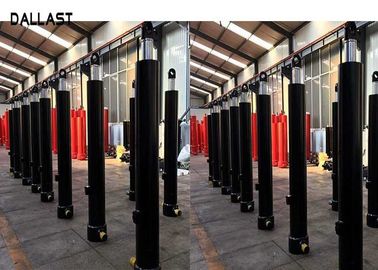

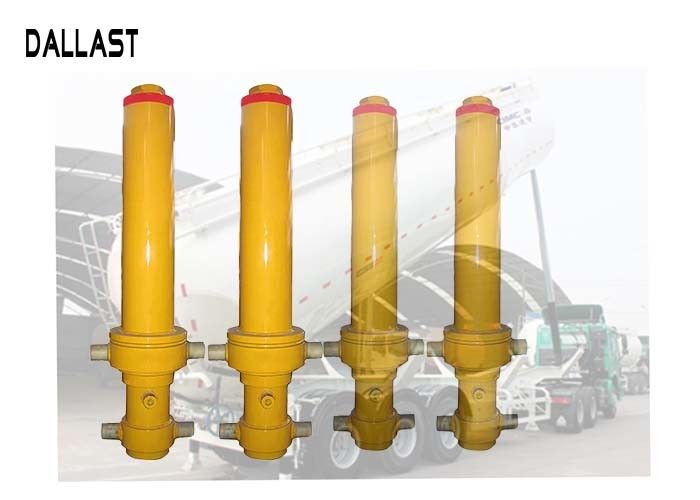

Sleeve Dump Truck Hydraulic Cylinders 200-12000 mm Stroke with Piston Rod
Features:
• The great advantage telescopic cylinders have over any other type of cylinders is their ability to provide an exceptionally long stroke from a compact initial package.
• Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
• Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
• Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
nuts backing off.
• Single-acting cylinders transfer force and motion in one direction only.
DALLAST offers the highest quality replacement cylinders for your truck dumper/tipper system. We can customize the dumper/tipper cylinders to suite your exact needs.
| some models | |||
|
Please note that the regularly stocked telescopic cylinders follows. |
|||
| Feel free to contact our office to place an order for quick delivery. | |||
| model |
pressure (BAR) |
stroke (mm) |
diatance length (mm) |
| 4TG-E180*5390ZZ | 160 | 5390 | 425 |
| 3TG-E180*3850ZZ | 160 | 3850 | 425 |
| 4TG-E180*5390ZZ | 160 | 5390 | 325 |
| 3TG-E150*3830EZ | 160 | 3830 | 1635 |
| 3TG-E150*3360EZ | 160 | 3360 | 1370 |
| 4TG-E150*4400EZ | 160 | 4400 | 1390 |
| material | stainless steel, alloy steel, carbon steel, 27SIMN, 20#, or on request. | ||
| seal kit | Nok, Hallite, Parker etc | ||
| color | Any color you can choose. | ||
| application | It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements. | ||
| Notes |
If you are interested in our products, contact us and send us the drawings |
||
Mounting option:
It has FC, FE, FEE.
Piston Seals:
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
Quality control:
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
Warranty:
Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
A. Retract dimension (Center of pin to center of pin)
B. Stroke length (Inches)
C. Mounting types
D. Port Size and Type (SAE or NPT)
E. Pressure rating (PSI)
F. Bore Diameter (Inches)
G. Application details
After-sales service:
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
