Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder

Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder

    • Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder
    • Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder
    • Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder
  • Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Hardness: HRC 45-55 Seals: Parker, Merkel, Hallite
    Working Method: Straight Trip HS Code: 8412210000
    Standard: Standard, Nonstandard Power: Hydraulic
    Origin: Shandong, China Delivery Time: 15-25 Days



    Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder




    Product Description:



    Sealing system
    All the hydraulic cylinders produced by our company adopt the seal ring products of Parker, Merkel.



    Piston rod
    The piston rod is made of high strength carbon steel with precision grinding treatment. With the design concept of improving the rod strength and the high performance heat treatment, hard chrome plating and CNC tumbling, the even veins and high degree of finish of the surface is guaranteed, and it has good oil membrane at the surface, which improves the service life of the seal parts.



    Guide sleeve

    The sleeve is made of high strength spheroidal graphite cast iron and high strength steel under buffering inner bore copper welding treatment.



    Cylinder block
    The cylinder block is made of high strength carbon steel. The internal surface of the cylinder is designed with proper strength, size, and thickness of cylinder body, and it has good degree of finish and rigidity under the tumbling treatment which minimizes the inner friction, improves the wear resistance and prolongs the service life.



    Piston and piston seals
    The standard piston is of one-piece steel structure. The firm lock-up between the long screw thread and the steel ball is convenient for the installation and it also guarantees the reliable operation under high speed load. New design of screwing parts greatly improved the cross section where the piston rod bears the axial load and improves the strength of piston rod to the maximum.



    Application

    Construction vehicle,excavator,crane,construction machinery,shipbuilding,metallurgy industry,hydro power project,agriculture machinery etc.



    Custom hydraulic cylinder (OEM).

    Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
    trucks according to the drawing from customers,but also we could make a design according to
    customers’requirements . If you require our engineer to make a design , please advise us the
    following specification :
    1. Rated pressure
    2. Working pressure
    3. Test pressure
    4. Working condition and environment ,for example ,temperature ,working frequency
    5. Pulling force ,and return stroke force
    6. Pulling and return speed
    7. Assembly size
    8. Seal ring requirements .For example , brand ,seal material etc .
    9. Tube and piston rod raw material requirements
    10. Piston rod surface treatment requirements, for example chromating film thickness ,
    Surface hardness etc .
    11. Painting and other spare parts requirements .


    Main Parameters:


    Single-acting Hydraulic Cylinder Details:

    This is for single-acting application, and with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).

    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    FC129-3E-3880 3 16-19 129 3880 20-35 5.2
    FC149-3E-3880 3 16-19 149 3880 25-45 5.2
    FC149-3E-4280 3 16-19 149 4280 25-45 5.6
    FC149-4E-3880 4 16-19 149 3880 25-40 5.2
    FC149-4E-4280 4 16-19 149 4280 25-40 5.6
    FC169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    FC169-4E-4640 4 16-19 169 4640 32-55 5.6-6.1
    FC185-4E-4280 4 16-19 185 4280 25-45 5.6
    FC185-4E-4640 4 16-19 185 4640 30-45 5.6-6.1
    FC185-4E-5000 4 16-19 185 5000 32-50 6.2-6.5
    FC185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    FC185-4E-5460 4 16-19 185 5460 40-65 6.5-7.3
    FC185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    FC185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    FC191-5E-5780 5 16-19 191 5780 40-70 6.9-7.7
    FC191-5E-6200 5 16-19 191 6200 45-80 7.3-8.2
    FC191-5E-7130 5 16-19 191 7130 50-85 7.8-8.5
    FC191-5E-9030 5 16-19 191 9030 55-90 10.0-11.0
    FC220-5E-7130 5 16-19 220 7130 65-100 7.8-8.5
    FC220-5E-9030 5 16-19 220 9030 65-100 10.0-11.0
    Customization is also available according to your requirements.



    Company Profiles:



    Dallast Technology Co., Ltd is one of the largest and most professional hydraulic cylinder manufacturer in China. We own an over 90,000 square meters modern standard factory, and more than 220 sets of state-of-the-art large digital equipments, ball rolling machines, honing machines, CNC, Boring machine, lathe, cutting machine, welding machine, auto welding robot, sand blast, painting etc.



    FAQ:


    1. How can I decide which model to buy?
    We will recommend the most suitable machines for you after informed by your requirements.

    2. OME Service Available?
    (1) Usually, we will manufacture the products as our design.
    (2) We also can make any products according to clients’ requirements.

    3. Do your products come with a warranty?
    Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.

    4. Delivery Time?
    (1) For standard specification products, usually 15-25 days.
    (2) For non-standard products, usually more than 1 month.

    5. How about the warranty and after-sale service?
    All of our products have one year warranty, and we can offer you long-distance after-sale
    service 7/24h.



    6. Can we design our own package or print our own logo?

    Yes! Package and logo will be made according to your requirements.



    Product Show:

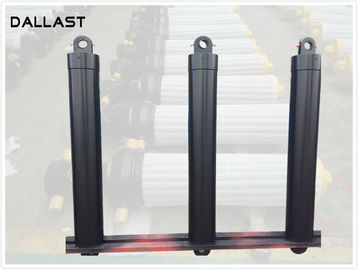

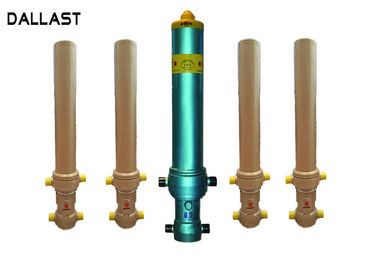

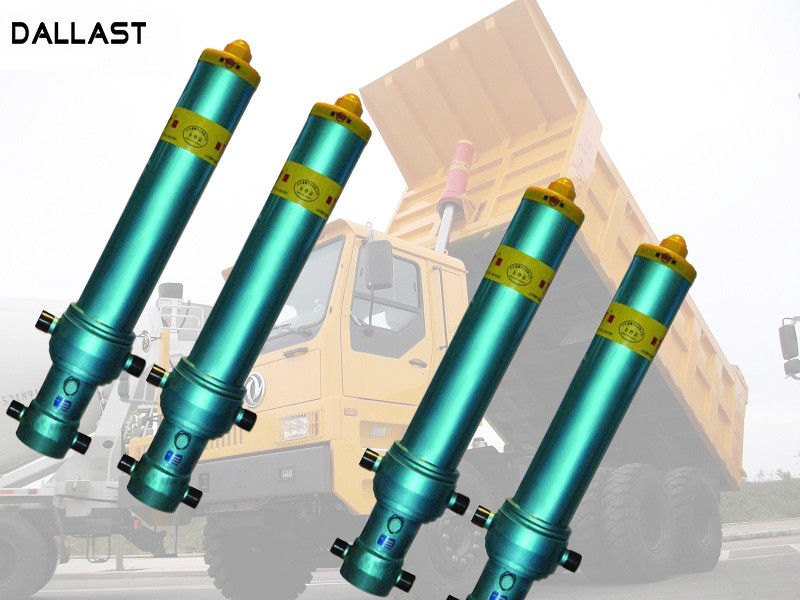

    Single Acting Dump Truck Tipping Truck Farm Truck Hydraulic Cylinder
