Name: Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder
Brand: DALLAST
SKU: Customized
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (169 reviews)

Home Products Dump Truck Hydraulic Cylinder

Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder

Product Details:

Place of Origin:	shangdong
Brand Name:	DALLAST
Certification:	ISO9001-2009 ,TS16949
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	shrink film, pallet, plywood case and carton
Delivery Time:	20- 25 days after down payment
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	3000PCS per year

Contact Now

Detailed Product Description

Material:	Alloy Steel,Carbon Steel,27SiMn	Paint Color:	As Customer′s Requirement
Size:	Customized As Your Request	Power Source:	Hydraulic Oil
Pressure Direction:	Single-Acting Cylinder	Model:	Telescopic Hydraulic Cylinder
High Light:	dump truck hydraulic ram , dump trailer hydraulic cylinder

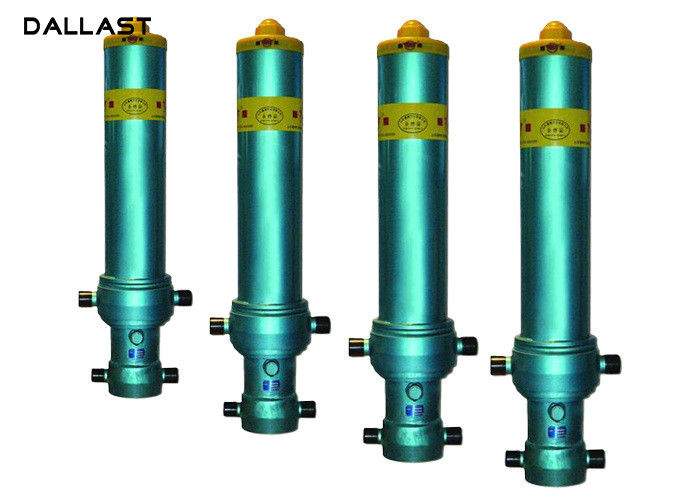

Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder

Products Discription:

Professional manufacturer supplier of Hydraulic Cylinders for more than 22 years;
Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
Experience in export North America, Australia, Asia, Middle East, Africa;
Hydraulic Cylinders can be Make according to client's requirements;
The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;
We are most of famous manufacturing company in telescopic cylinders.

HS Code	8412210000
Application	Dump truck, Tipper, Dump Trailer
Material of cylinder tube	Carbon steel, Alloy steel, 27SiMn
Seal	Parker, Merkel, Hallite, Kaden
Coating	All tubes are chrome plated
Working pressure	16mpa-32mpa
Stroke	2980mm-9530mm
Color	red black blue gray, according to customer's requirement
Mounting Type	Earring-trunnion, double trunnion, double earring (eye end)
Package	shrink film, pallet, plywood case
Warranty	12 months after shipping arrival
Main export market	US, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Kenya, Philippines, Bolivia, the United Arab Unites, Singapore
Delivery time	20-25 days after down payment

Honed tube	20-2000mm, Heat treatment, honing, rolling
Piston rod	10-1500mm,tempering, plated nickel, Chrome or ceramic
Temperature range	-30°C - +100°C
Work medium	Hydraulic Oil
Piston speed	maximum 0.5m/s
Mounting style	Earrings, flange, foot mounting, screw thread.

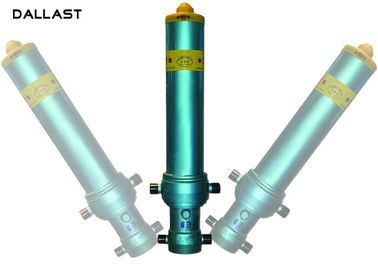

Single Acting Chrome Tipper Trailer Dump Truck Hydraulic Cylinder

Model	Lifting	Pressure	Bore Dia	A	B	C	D	E	F	L	G	H
Model	(ton)	(Mpa)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
FC-4TG-E158x4280	31.4	16	158/136/115/95	245	385	360	490	335	272	1450	195±10	420±10
FC-5TG-E158x4280	31.4	16	158/136/115/95/75	245	385	360	490	335	272	1195	195±10	420±10
FC-4TG-E166x4280	34.6	16	166/141/115/95/75	245	385	360	490	335	272	1450	195±10	420±10
FC-4TG-E166x5390	34.6	16	166/141/115/95/75	245	385	360	490	335	272	1725	195±10	420±10
FC-4TG-F181x4280	51.4	20	181/158/136/115	245	385	360	490	335	272	1460	195±10	420±10
FC-4TG-F181x4650	51.4	20	181/158/136/115	245	385	360	490	335	272	1555	195±10	420±10
FC-4TG-F181x5000	51.4	20	181/158/136/115	245	385	360	490	335	272	1645	195±10	420±10
FC-4TG-F181x5390	51.4	20	181/158/136/115	245	385	360	490	335	272	1740	195±10	420±10
FC-4TG-F181x5790	51.4	20	181/158/136/115	245	385	360	490	335	272	1820	195±10	420±10
FC-5TG-F181x4280	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1195	195±10	420±10
FC-5TG-F181x5000	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1355	195±10	420±10
FC-5TG-F181x5390	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1455	195±10	420±10
FC-5TG-F181x5700	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1500	195±10	420±10
FC-4TG-F191x4650	57.3	20	191/166/141/115	245	385	360	490	335	272	1560	195±10	420±10
FC-4TG-F191x5000	57.3	20	191/166/141/115	245	385	360	490	335	272	1645	195±10	420±10
FC-4TG-F191x5390	57.3	20	191/166/141/115	245	385	360	490	335	272	1740	195±10	420±10
FC-4TG-F191x6000	57.3	20	191/166/141/115	260	405	340	470	325	244	1890	215±10	420±10
FC-4TG-F191x4650	57.3	20	191/166/141/115	265	405	360	490	345	260	1555	215±10	420±10
FC-4TG-F206x6000	66.6	20	206/181/158/136	280	420	360	490	345	272	1900	230±10	420±10
FC-5TG-F206x6180	66.6	20	206/181/158/136/115	270	410	360	490	325	272	1630	220±10	420±10
Advantage: Professional, skilled, reliable. One-stop total solution Ready stock goods with fast delivery Customizable: Non-standard sizes are also available Small quantity is acceptable Refund or replacement for any product faulty
