ISO9001 Single Acting Telescopic Hydraulic Cylinder for Farm Truck

    • ISO9001 Single Acting Telescopic Hydraulic Cylinder for Farm Truck
    • ISO9001 Single Acting Telescopic Hydraulic Cylinder for Farm Truck
    • ISO9001 Single Acting Telescopic Hydraulic Cylinder for Farm Truck
  • ISO9001 Single Acting Telescopic Hydraulic Cylinder for Farm Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Model No.: Customized Acting Way: Single Acting
    Material: Stainless Steel, Alloy Steel Usage: Automation And Control
    Hardness: HRC 45-55 Power: Hydraulic
    Available Temperature: -40℃ To 80℃ Warranty: One Year

    Customized Single Acting Telescopic Hydraulic Cylinder for Farm Truck



    Hydraulic cylinder:

    1. Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

    2. Underbody telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pa
    using and falling. And the product can be designed and made according to the demands of customers.

    hydraulic cylinder for farm truck

    3. Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.

    4. customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.


    Cylinder Details:

    1. Mounting type: turning, flange, earring, according to your demand
    2. Seal: use parker, NOK and other famous seal parts to ensure the quality
    3. Piston rod: 20#, 45# steel with high frequency quenching
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
    5. Bore size: 20-500mm (7/8-20"), stroke can reach to 3000mm
    6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval

    hydraulic cylinder for engineering
    1. Max stroke: 190" or 10000mm
    2. Max bore inner diameter: 32" or 800mm
    3. Various structure form


    Parameters:





    ISO9001 Single Acting Telescopic Hydraulic Cylinder for Farm Truck



    To get an immediate quotation,please provide us with the following necessary parameters:
    1) Bore diameter
    2) Piston rod diameter
    3) Stroke length
    4) Working pressure
    5) Mounting method
    Product Name Hydraulic Cylinder
    Bore of Hydraulic Cylinder 40mm-1000mm(1 1/2 inch-40 inch)
    Diameter of piston rod 12mm-500mm(1/2 inch-20 inch)
    Stroke of Hydraulic cylinder Max 10000mm
    Working pressure of hydraulic cylinder 16Mpa-60Mpa
    Brand of Seal kits PARKER(USA) HALLITE(ENGLAND) NOW(JAPA)
    Technical Treatment of Piston Rod Quenched and tempered.chromed
    Materials of Hydraulic cylinder tube 35# steel,45# steel,27SiMn,Q345B steel
    Warranty One Year
    Color Red, Black, Blue, etc.
    Payment Terms T/T, Western Union, D/P, L/C
    Power Hydraulic



    FAQ:

    Q1. What are the same aspects of your cylinder with Hyva cylinder?
    1. Same inside structure.
    2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's

    Q2. Compared with Hyva cylinder, what are your cylinder advantages?
    1. Tubes are chrome plated.
    2. Tubes are quenched and tempered.
    3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
    4. Good quality yet lower price.

    Q3. How long is the production time?
    Generally the production time is 15-25 days.

    Q4. Can we design our own package or print our own logo?
    Yes! Package and logo will be made according to your requirements.



    Company Profile:


    Dallast Technology Co., Ltd established in 2002, It is situated in Shandong province,and occupies about 58000 square meters. We have passed ISO9001&TS16949 certified,now we export to US,Canada,South America,Russia,Korea,Australia,Southeast Asia and so on. We have more than 100 sets of equipments. The main ones include automatic gas shielded welding machine,deep hole boring machines, CNC lathes, cylindrical grinder, automatic washing machine, automatic installing machines,automatic hydraulic cylinder performance test bench, automatic painting line, automatic plating equipments and so on.


    Product Show:

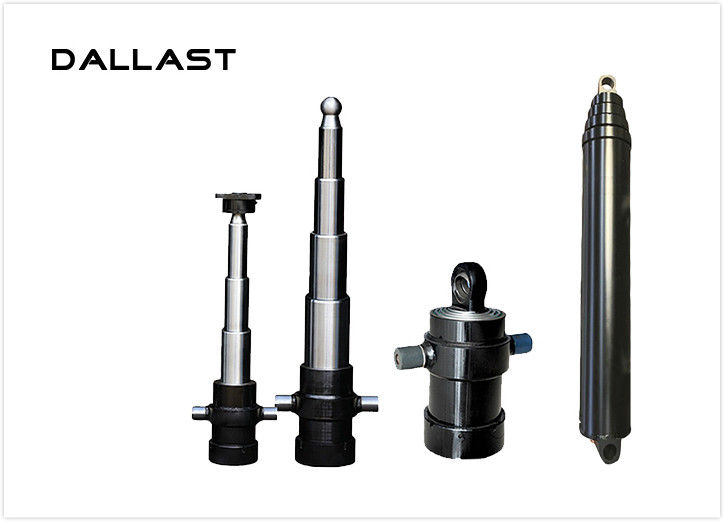

    ISO9001 Single Acting Telescopic Hydraulic Cylinder for Farm Truck
