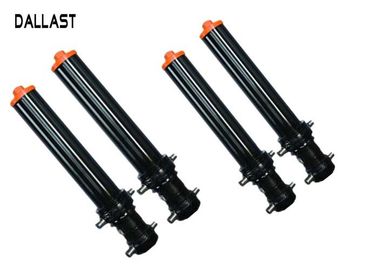

Dump Truck and Trailer Hydraulic Cylinder Single Acting For Engineering Machinery

    • Dump Truck and Trailer Hydraulic Cylinder Single Acting For Engineering Machinery
    • Dump Truck and Trailer Hydraulic Cylinder Single Acting For Engineering Machinery
    • Dump Truck and Trailer Hydraulic Cylinder Single Acting For Engineering Machinery
  • Dump Truck and Trailer Hydraulic Cylinder Single Acting For Engineering Machinery

    Product Details:

    Place of Origin: shan dong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Type: TG Series Piston Rod: Customized
    Brand: Hyva, Or Customized Stroke: 2200-12000mm
    Temperature: Normal Temperature Pressure: Medium Pressure

    Dump Truck and Trailer Hydraulic Cylinder Single Acting For Engineering Machinery


    1. A hydraulic cylinder consists of a piston sliding within a hollow tube, moved by the pressure of a liquid. The piston, or rod is usually machined.

    2. Truck front lifting cylinder is the dumper hydralic lifting system for lifting actuator, truck compartment or tank.



    application It mainly used in various types of heavy truck front lifting, such as 8*4 truck, semi-trailer, can be widely used in mining, iron and steel, port conditions relatively poor use places can meet from13 tons to 90 tons lifting requirements.
    Notes:

    If you are interested in our products, contact us and send us the drawings

    FC Type Hydraulic Cylinder
    MODEL NO Stage

    Working pressure



    Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
    (MPa) (mm) (mm) (mm) (mm)
    FC-3-110-3205 3 16 110 3205 168 343
    FC-3-110-3460 3 16 110 3460 168 343
    FC-3-129-2980 3 16 129 2980 218 343
    FC-3-129-3205 3 16 129 3205 218 343
    FC-3-129-3460 3 16 129 3460 218 343
    FC-3-129-3880 3 16 129 3880 218 343
    FC-3-129-4270 3 16 129 4270 218 343
    FC-4-129-4280 4 16 129 4280 218 343
    FC-4-129-4280 4 16 129 4280 218 343
    FC-4-129-5180 4 16 129 5180 218 343
    FC-4-149-3680 4 16 149 3680 218 343
    FC-4-149-3980 4 16 149 3980 218 343



    Features:
    Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.
    • Snap on glass filled bearings that absorb contaminants without damaging cylinder walls.
    • Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
    nuts backing off.
    • Single-acting cylinders transfer force and motion in one direction only.



    Mounting option:
    It has FC, FE, FEE.

    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.


    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.



    Quality control:
    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.


    Warranty:
    Every DALLAST single acting telescopic cylinder is individually tested before leaving our plant to assure proper performance and leak-free operation. All cylinder products carry an 12 months warranty.




    The most common problems when selecting a hydraulic cylinder are as follows:

    A. Retract dimension

    B. Stroke length (Inches/mm)

    C. Mounting types

    D. Port Size and Type (SAE or NPT)

    E. Pressure rating (PSI/MPa)

    F. Bore Diameter (Inches/mm)

    G. Application details


    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.

    Dump Truck and Trailer Hydraulic Cylinder Single Acting For Engineering Machinery
