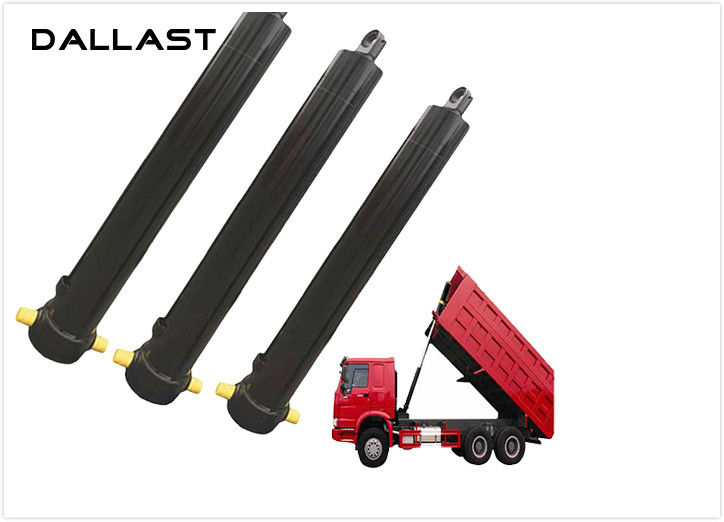

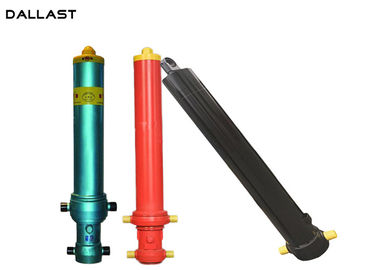

Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome

Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome

    • Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome
    • Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome
    • Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome
  • Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Model No.: Customized Material: Stainless Steel
    Working Method: Straight Trip Working Pressure: 16-32 Mpa
    Standard: Standard, Nonstandard Special Cylinder Type: Custom Hydraulic Cylinder
    Hardness: HRC 45-55 Available Temperature: -40 ℃ To 80 ℃


    Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome


    Key specifications/special features:
    1. Oil port connection: internal thread or flange
    2. Cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80mm diameter)
    3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffer)
    Both ends with buffer
    Without the rod side buffer (-2 ratio, only the cylinder head with buffer)
    Rod side band buffer
    4. Piston rod end connection mode: rod end screw
    In the end of the thread rod (for D-63mm diameter)
    End of the rod end of the threaded rod end of the earrings with bushing
    Rod end inner threaded rod head earrings with bushing
    Rod end threaded rod head earrings for joint bearing
    Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
    Integral piston rod and ring belt bushing
    Integral piston rod ring joint bearing

    Our hydraulic cylinders range in size from 50mm bores up to 100mm bores, with push power ranging from 3.8 tonnes up to 16.5 tonnes. We stock both single acting and double acting hydraulic cylinders and rams.Ramko also design and manufactures bespoke hydraulic cylinders and professional sub-contract CNC machining, plus tipping rams, trailer brake rams, cylinder supplies, accessories, hoses, kits, quick release couplings and valves. Ramko also offers a range of hydraulic log splitter cylinders and kits to build your own hydraulic log splititter cylinders and kits to build your own hydraulic log splitter. The push power available on log splitter cylinders include 13.4 tonne, 25 tonne and a heavy duty 30 tonne hydraulic log splitter cylinder.

    Characteristics:
    We are manufacturing various kinds of hydraulic cylinders like:

    1. Double Acting Hydraulic cylinders
    2. Telescopic Cylinders
    3. Piston Hydraulic cylinders
    4. Single-acting cylinder

    This product is used in numerous application including:

    1. Dump truck,
    2. Pump trucks,
    3. Truck mounted crane,
    4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders,

    Parameters:

    ModelExtended
    Stages
    Working PressureMax. stageMax. strokeLifting
    Capacity
    Suitable Length of Truck Body
      (MPa)Diameter(mm)(mm)(ton)(m)
    129-3E-3880316-19129388020-355.2
    149-3E-3880316-19149388025-455.2
    149-3E-4280316-19149428025-455.6
    149-4E-3880416-19149388025-405.2
    149-4E-4280416-19149428025-405.6
    169-4E-4280416-19169428030-505.2-5.6
    169-4E-4640416-19169464032-555.6-6.1
    169-4E-5000416-19169500032-606.2-6.8
    169-4E-5180416-19169518032-606.2-6.9
    169-4E-5390416-19169539032-606.2-6.9
    185-4E-4640416-19185464030-455.6-6.1
    185-4E-5000416-19185500032-506.2-6.5
    185-4E-5390416-19185539040-606.2-6.8
    185-4E-5460416-19185546040-656.5-7.3
    185-4E-6000416-19185600050-807.3-8.2
    191-5E-5780516-19191578040-706.9-7.7
    191-5E-6200516-19191620045-807.3-8.2
    191-5E-7130516-19191713050-857.8-8.5
    191-5E-9030516-19191903055-9010.0-11.0


    FAQ:
    Q1. What are the same aspects of your cylinder with Hyva cylinder?
    1. Same inside structure.
    2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's

    Q2. Compared with Hyva cylinder, what are your cylinder advantages?
    1. Tubes are chrome plated.
    2. Tubes are quenched and tempered.
    3. Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.
    4. Good quality yet lower price.

    Product Show:

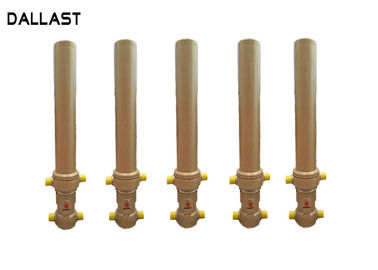

    Stainless Steel Telescopic Hydraulic Cylinder FC Agricultural Farm Truck Chrome
