Place of Origin: | Shandong |
Brand Name: | Dallast |
Certification: | Gs, RoHS, Ce, ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood Box or Pallet |
Delivery Time: | 15-25 Days |
Payment Terms: | T/T, Western Union, D/P, L/C |
Supply Ability: | 50,000 Pieces/Year |
Pressure Environment: | Medium Pressure | Model No.: | Customized |
---|---|---|---|
Working Pressure: | 16-32 Mpa | Standard: | Standard, Nonstandard |
Special Cylinder Type: | Custom Hydraulic Cylinder | Test: | 100% Test |
Business Type: | Manufacturer | Steel Material: | 20#, 45# Steel, 21#, 27# SiMn |
High Light: | custom hydraulic cylinders,hydraulic ram cylinder |

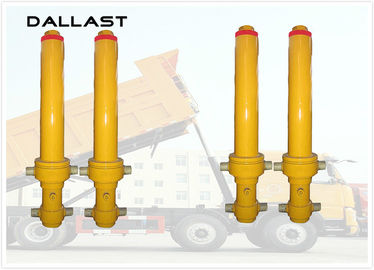

Front End Chrome Telescopic Hydraulic Cylinder for Agricultural Farm Truck
Parameters:
|
|
Sealing system | Choose PARKER, MERKEL, NOK and other imports of high-end seal, combined with the company's unique sealing system design to prevent sand and dust, reduce oil leakage, access to the best piston rod film. |
Cylinder | Cylinder body made according to suitable strength and size, the inner surface of which is processed by rolling to improve the surface hardness and abrasion resistance while ensuring the dimensional accuracy and roughness. |
Tube |
1.Tubes are quenched and tempered. 2.Tube inner hole goes through deephole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025. |
Piston rod | based on high-frequency quenching, has been coated with a hard chrome surface to improve rust, abrasion and damage resistance. Surfaces obtained after precision polishing have a uniform texture and high finish to ensure Good surface oil film, improve product life. |
Buffer / Safety Functions | Built-in cushioning mechanism that absorbs impact at the stroke end, as required, and also allows easy installation of various valves with functions such as slow return, balance and emergency shutdown. |
Price | Good quality yet lower price. |
Quality control
|
Special features:
1. Oil port connection: internal thread or flange
2. Cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80mm diameter)
3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffer)
Both ends with buffer
Without the rod side buffer (-2 ratio, only the cylinder head with buffer)
Rod side band buffer
4. Piston rod end connection mode: rod end screw
In the end of the thread rod (for D-63mm diameter)
End of the rod end of the threaded rod end of the earrings with bushing
Rod end inner threaded rod head earrings with bushing
Rod end threaded rod head earrings for joint bearing
Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
Integral piston rod and ring belt bushing
Integral piston rod ring joint bearing
5. Installation: cylinder head earrings with bushing
Cylinder head earrings with joint bearing/hinge axis/end flange/middle flange
Our hydraulic cylinders range in size from 50mm bores up to 100mm bores, with push power ranging from 3.8 tonnes up to 16.5 tonnes. We stock both single acting and double acting hydraulic cylinders and rams.Ramko also design and manufactures bespoke hydraulic cylinders and professional sub-contract CNC machining, plus tipping rams, trailer brake rams, cylinder supplies, accessories, hoses, kits, quick release couplings and valves. Ramko also offers a range of hydraulic log splitter cylinders and kits to build your own hydraulic log splititter cylinders and kits to build your own hydraulic log splitter. The push power available on log splitter cylinders include 13.4 tonne, 25 tonne and a heavy duty 30 tonne hydraulic log splitter cylinder.
Characteristics:
- Larger diameter, more lifting capacity.
- Max working pressure reaches 250 bar, better anti-pressure ability.
- Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
- New model guide ring combined with lubricating material, guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
- 100% tested, guarantee high quality.
We are manufacturing various kinds of hydraulic cylinders like:
1. Double Acting Hydraulic cylinders
2. Telescopic Cylinders
3. Piston Hydraulic cylinders
4. Single-acting cylinder
This product is used in numerous application including:
1. Dump truck,
2. Pump trucks,
3. Truck mounted crane,
4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders,
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer with Exporting License.
Q2: How long have you been in Hydraulic Cylinder industry?
A2: Our factory is built in year 2002 and start by manufacturing Pneumatic Cylinder. From year 2007, we start manufacturing Hydraulic Cylinder.
Q3: How long is your warranty period?
A3: We offer 12 months warranty period after on board.
Q4: How long does it take to process orders?
A4: It usually takes 15-25 days to process. We don’t have stock.
Q5: What’s your cylinder PPM?
A5: 5000 PPM. We do 100% inspection before delivery.
Q6: Do your products support trade assurance?
A6: Yes, our products are all supported.

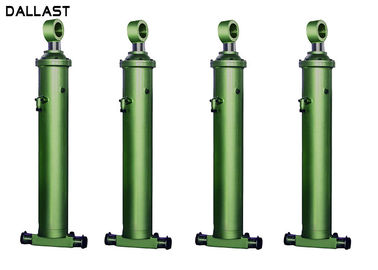

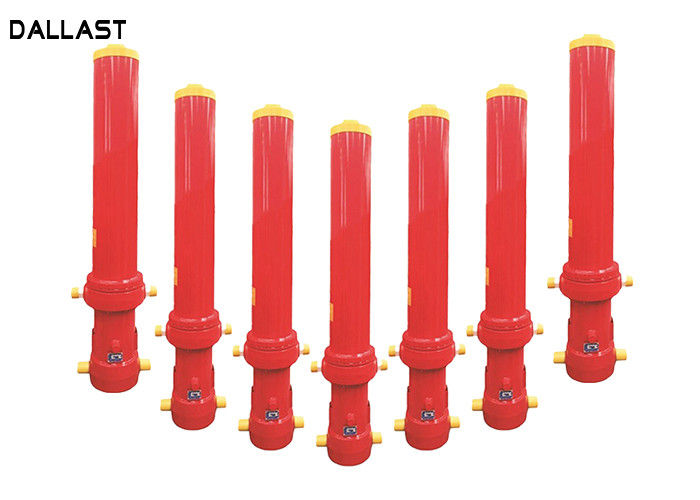

Product Show:
