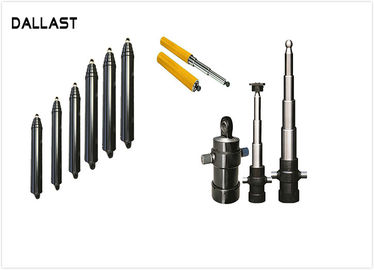

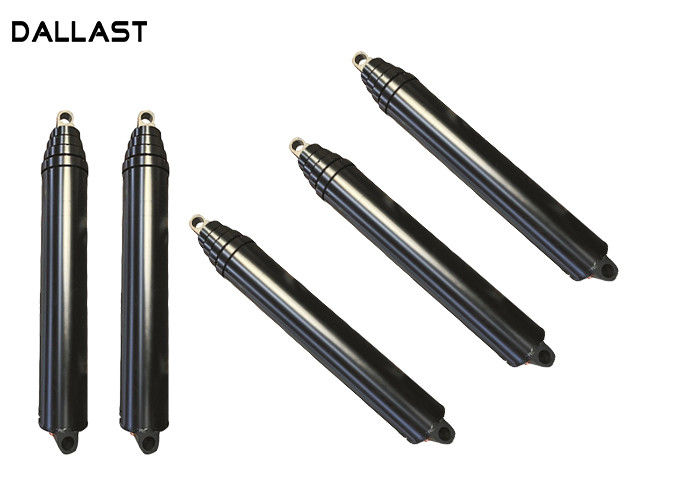

Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck

Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck

    • Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck
    • Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck
    • Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck
  • Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Model No.: Customized Acting Way: Single Acting
    Material: Stainless Steel Working Method: Straight Trip
    Working Pressure: 16-32 Mpa Special Cylinder Type: Custom Hydraulic Cylinder
    Usage: Automation And Control Steel Material: 20#, 45# Steel, 21#, 27# SiMn
    High Light:

    custom hydraulic cylinders

    ,

    hydraulic ram cylinder

    Single Acting Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck





    The information about our company:



    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.



    FAQ:



    Q1: Are you a trading company or manufacturer?

    A1: We are the manufacturer with Exporting License.



    Q2: How long have you been in Hydraulic Cylinder industry?

    A2: Our factory is built in year 2002 and start by manufacturing Pneumatic Cylinder. From year 2007, we start manufacturing Hydraulic Cylinder.



    Q3: How long is your warranty period?

    A3: We offer 12 months warranty period after on board.



    Q4: How long does it take to process orders?

    A4: It usually takes 15-25 days to process. We don’t have stock.



    Q5: What’s your cylinder PPM?

    A5: 5000 PPM. We do 100% inspection before delivery.



    Q6: Have you been exported to overseas?

    A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.



    Q7: Do your products support trade assurance?

    A7: Yes, our products are all supported.



    Key specifications/special features:


    1. Oil port connection: internal thread or flange
    2. Cylinder head and cylinder connection: thread (less than 80mm diameter) card key (more than 80mm diameter)
    3. Buffer parts: without buffer (Phi 40, Phi 50, Phi 63 without buffer)
    Both ends with buffer
    Without the rod side buffer (-2 ratio, only the cylinder head with buffer)
    Rod side band buffer
    4. Piston rod end connection mode: rod end screw
    In the end of the thread rod (for D-63mm diameter)
    End of the rod end of the threaded rod end of the earrings with bushing
    Rod end inner threaded rod head earrings with bushing
    Rod end threaded rod head earrings for joint bearing
    Screw head mounted within the rod end joint bearing earrings (D-63 for bore diameter)
    Integral piston rod and ring belt bushing
    Integral piston rod ring joint bearing
    5. Installation: cylinder head earrings with bushing
    Cylinder head earrings with joint bearing/hinge axis/end flange/middle flange



    Dallast has a strong commitment to supply the world-class quality products, our factory has strict control system, advanced production equipment, including Kuka robots, friction welding machine and advanced CNC processing center and more.

    Dallast front end tipping solution with standard operating pressure up to 250 bar providing the best performance through the combination of reducing weight, increasing tipping speed and stability.

    Dallast has a complete range of front-end cylinders: with cover (FC), top eye (FE), top and bottom eye(FEE) with max. Lifting capacity up to 120 tons.

    Characteristics:


    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.



    We are manufacturing various kinds of hydraulic cylinders like:


    1. Double Acting Hydraulic cylinders

    2. Telescopic Cylinders

    3. Piston Hydraulic cylinders

    4. Single-acting cylinder



    This product is used in numerous application including:


    1. Dump truck,

    2. Pump trucks,

    3. Truck mounted crane,

    4. sanitation truck Earth moving equipment, Drilling Rigs, Road and Construction equipments, Cranes, Material handling equipments, Mining Equipments, Plastic Mould Machine, Cement Factories, Special Purpose Cylinders



    Parameters:



    To get an immediate quotation,please provide us with the following necessary parameters:

    1) Bore diameter

    2) Piston rod diameter

    3) Stroke length

    4) Working pressure

    5) Mounting method



    Model Extended
    Stages
    Working Pressure Max. stage Max. stroke Lifting
    Capacity
    Suitable Length of Truck Body
    (MPa) Diameter(mm) (mm) (ton) (m)
    129-3E-3880 3 16-19 129 3880 20-35 5.2
    149-3E-3880 3 16-19 149 3880 25-45 5.2
    149-3E-4280 3 16-19 149 4280 25-45 5.6
    149-4E-3880 4 16-19 149 3880 25-40 5.2
    149-4E-4280 4 16-19 149 4280 25-40 5.6
    169-4E-4280 4 16-19 169 4280 30-50 5.2-5.6
    185-4E-5390 4 16-19 185 5390 40-60 6.2-6.8
    185-4E-5780 4 16-19 185 5780 45-70 6.9-7.7
    185-4E-6000 4 16-19 185 6000 50-80 7.3-8.2
    220-5E-7130 5 16-19 220 7130 65-100 7.8-8.5
    220-5E-9030 5 16-19 220 9030 65-100 10.0-11.0
    Customization is also available according to your requirements.

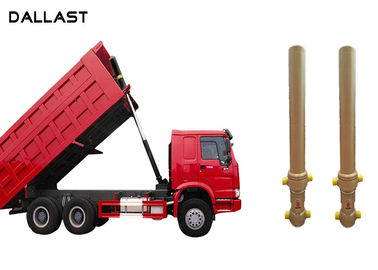

    Product Show:



    Front End Telescopic Hydraulic Cylinder for Agricultural Farm Truck
