|OD:||Customized||Piston Rod:||27SIMN, Or Customized|
|Inner Diameter:||On Request||Action Type:||Single Acting|

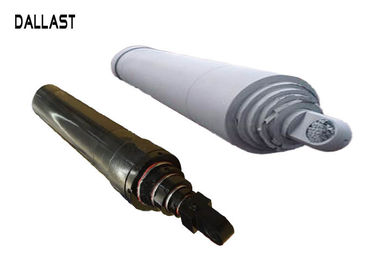

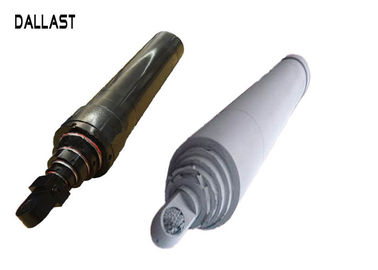

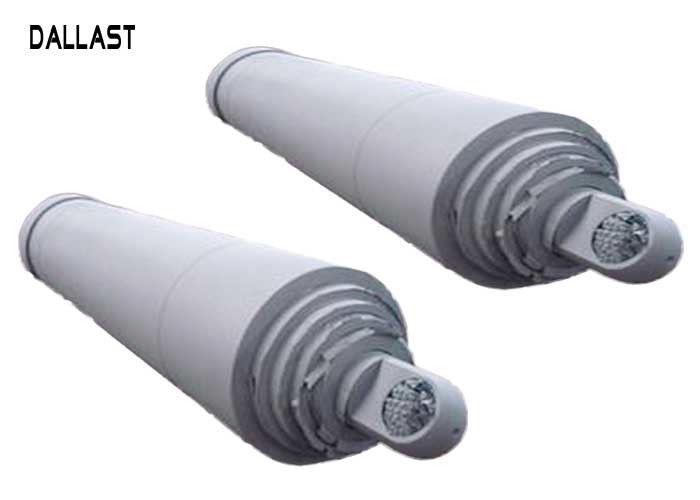

Single Acting Long Stroke Telescopic Hydraulic Cylinder for Vehicle
When pressure oil enters from the rodless chamber, the cylinder with the largest effective area of the piston starts to protrude. When the line reaches the end point, the cylinder with the effective area of the piston begins to protrude. Telescopic hydraulic stretching out in order from large to small in order to obtain a long working stroke, the effective cylinder extending the smaller the area, the faster the rate of extension. Therefore, the slow out of the slow speed, the corresponding hydraulic thrust from large to small; this thrust, speed changes, is suitable for a variety of automatic loading and unloading machinery on the thrust and speed requirements. The order of retraction is generally followed by small to large retraction, the retraction of the axial length is shorter, smaller footprint, compact structure. Commonly used in construction machinery and other mobile machinery, such as cranes, dump trucks and other hydraulic systems.
Various options available based on application requirements
1. bore size (INCH): up to 17''
2. length (INCH): up to 500
3. rod diameter (INCH):up to 16''
4. temperature range (F): -40 DEG TO 275 DEGF
• Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing
nuts backing off
• Snap on glass filled bearings that absorb contaminants without damaging cylinder walls
1.. Single-acting cylinders transfer force and motion in one direction only.
2. Use an external device, such as a spring, weight, or another opposite installed cylinder, to move the rod in the opposite direction.
3. Telescopic front hydraulic cylinder increases lift capacity and lifting stability
4. The Single-Acting Hydraulic Cylinder block models a device that converts hydraulic energy into mechanical energy in the form of translational motion.
5. Hydraulic fluid pumped under pressure into the cylinder chamber forces the piston to move and exert force on the cylinder rod.
If you are interested in our products, contact us and send us the drawings:
The drawing details are as follows.
|A. The drawing details are as follows.|
Paint color requirement
B. The product application description details
|1. Type of machine(loader, steer loader, excavator, and etc.)|
2. Type of function(hoist, swing, steering, and etc.)
3. Type of structure(piston, telescopic)
|4. Single or double acting|
|5. Operating pressure|
Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.
About piston rod:
High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.
1. Seiko secret agents, to ensure quality of the piston rod.
2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.
1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
2. Pre-sale service and free consultation service.
3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
6. Service Center all over the world for after sales problems.
How to choose:
1. Choice will depend on the operating conditions of the unit. It is necessary to determine the precise physical characteristics and geometry of the installation.
2. The bore, or cylinder diameter will determine the amount of force the piston can apply. Rod characteristics, usually standardized, fastening system, damping and stroke are other important factors.
3. Stroke, in particular, is an essential specification, since it defines the distance the piston travels between its initial and its final position.
4. Additional criteria include the use of presence sensors to indicate the position of the piston, the seals, purge and drain valves, type and temperature of the hydraulic fluid.
