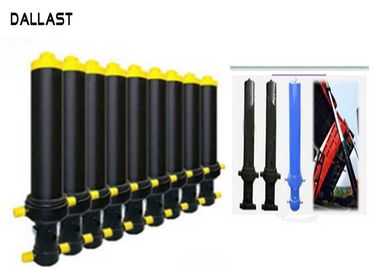

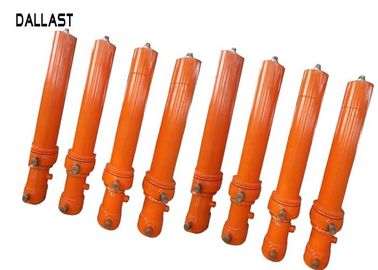

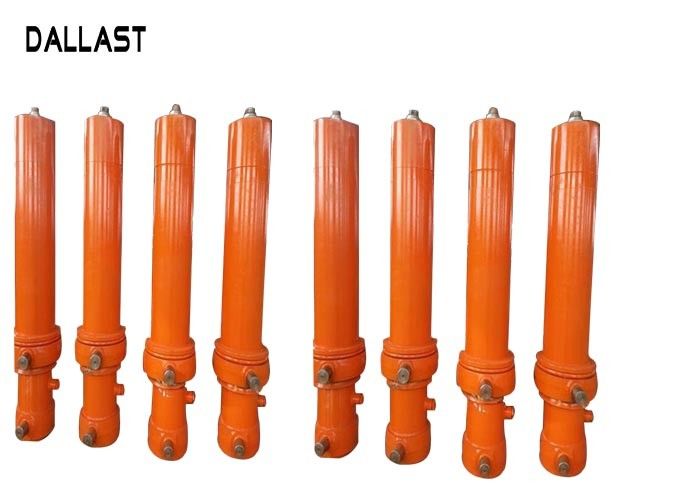

Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End

Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End

    • Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End
    • Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End
    • Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End
  • Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End

    Product Details:

    Place of Origin: shan dong
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 20-30 work days per year
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 60000 pieces
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Temperature: Normal Temperature
    Seal: Customized Struction: Sleeve Single Acting
    OD: Customized Piston Rod: Stainless Steel
    High Light:

    single acting hydraulic ram

    ,

    single acting telescopic hydraulic cylinders



    Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End



    Introduction:

    1. DALLAST single acting sleeve cylinders provide value through proven reliability, efficient performance and the quality that you expect from every DALLAST Cylinder Division product line.

    2. The length of a hydraulic cylinder is the total of the stroke, the thickness of the piston, the thickness of bottom and head and the length of the connections. Often this length does not fit in the machine.



    Benefits:
    • Snap on glass filled bearings that absorb contaminants without damaging cylinder walls
    • Nylon tipped set screws that conform to packing nut threads to decrease the probability of packing

    nuts backing off
    • 12 months warranty

    • Single-acting cylinders transfer force and motion in one direction only.



    Mounting option:

    It has FC, FE, FEE.



    TG type FC series hydraulic cylinder for vehicle
    MODEL NO Stage

    Largest Stage

    Diameter



    Stroke



    The largest

    sleeve OD



    Mounting

    distance



    (mm) (mm) (mm) (mm)
    FC-3-110-3205 3 110 3205 168 343
    FC-3-110-3460 3 110 3460 168 343
    FC-3-129-2980 3 129 2980 218 343
    FC-3-129-3205 3 129 3205 218 343
    FC-3-129-3460 3 129 3460 218 343
    FC-3-129-3880 3 129 3880 218 343
    FC-3-129-4270 3 129 4270 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-5180 4 129 5180 218 343
    FC-4-149-3680 4 149 3680 218 343
    FC-4-169-4940 4 169 4940 244 343
    FC-4-169-5180 4 169 5180 244 343
    FC-4-169-5460 4 169 5460 244 343
    FC-5-169-5355 5 169 5355 244 343
    FC-5-169-5780 5 169 5780 244 343
    FC-5-169-6180 5 169 6180 244 343
    FC-5-169-6830 5 169 6830 244 343









    Piston Seals:
    Low friction, high load piston seals with outboard wear bands are standard. Loaded lip seals and cast iron rings are optional.

    About piston rod:

    High strength damage resistant piston rod provides 100,000 PSI minimum yield material in 1" through 4 1/2" diameters. Larger diameters vary between 50,000 and 75,000 PSI minimum yield material. All rods are case hardened to 50-55 RC and hard chrome plated to provide maximum wear life. Stainless steel is also available. The hard chrome plated of the piston rod according to your requirement.

    Quality control:

    1. Seiko secret agents, to ensure quality of the piston rod.
    2. The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.
    3. The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.

    After-sales service:
    1. Various operation instructions such as: products inspect and control ,Receiving inspection control ,sampling inspection operation instruction, process quality inspection operation instruction etc
    2. Pre-sale service and free consultation service.
    3. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
    4. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
    5. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
    6. Service Center all over the world for after sales problems.



    How to choose:
    1. Choice will depend on the operating conditions of the unit. It is necessary to determine the precise physical characteristics and geometry of the installation.
    2. The bore, or cylinder diameter will determine the amount of force the piston can apply. Rod characteristics, usually standardized, fastening system, damping and stroke are other important factors.
    3. Stroke, in particular, is an essential specification, since it defines the distance the piston travels between its initial and its final position.
    4. Additional criteria include the use of presence sensors to indicate the position of the piston, the seals, purge and drain valves, type and temperature of the hydraulic fluid.



    Stainless Steel Single Acting Hydraulic Cylinder Sleeve FC for Dump Truck Front End
