Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery

Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery

    • Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery
    • Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery
    • Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery
  • Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 3000PCS per year
    Contact Now
    Detailed Product Description
    Usage: Automation And Control Sructure: Piston Cylinder
    Pressure Direction: Double-acting Cylinder Cylinder Case/Tube Material: Carbon Steel, Alloy Steel, Stainless Steel
    Standard: Standard, Nonstandard Mounting Type: Double Earring


    Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery

           We can design according to user requirements, manufacturing various types of standards, non-standard hydraulic cylinders,
    Hydraulic Cylinder: HSG-01 Engineering Cylinder, Y-HG1 (YG) Metallurgical Cylinder, CD250 CD350 CG250 CG350 Heavy Metallurgical Cylinder, DG Vehicle Cylinder, Heavy Duty Hydraulic Cylinder, Plunger Cylinder, Woodworking Machinery Hydraulic Cylinder, Corrosion Resistant Hydraulic Cylinder and special non-standard large diameter, long stroke hydraulic cylinder

           Piston hydraulic cylinder can be divided into single-rod and double-rod two structures, the fixed way by the cylinder fixed and fixed piston rod two, according to the role of hydraulic pressure has a single role and double-acting. In a single role In the hydraulic cylinder, the pressure oil is only provided in a cavity of the hydraulic cylinder, which realizes unidirectional movement of the cylinder by hydraulic pressure and external force (such as spring force, self-weight or external load) in the opposite direction; and the double-acting hydraulic cylinder piston movement in both directions alternately into the two chambers through the oil, the role of hydraulic pressure to complete, it is only one side of the piston with a piston rod, so the effective area of ​​the two chambers are different. In the oil the same amount, the different chamber into the oil, the piston speed of movement is different; in the same load force to be overcome, the different chamber into the oil, the required oil pressure is different, or set in the system pressure, sanitation Garbage truck hydraulic cylinder movement in both directions can overcome the load force is different.


    HSG series hydraulic cylinder for construction machinery
    Model

     Strock
    (mm)

    Bore Diameter
    (mm)

    Rod Diamter
    (mm)

    Push(KN) Pull(KN)
    HSGK01-160/90E-131 715 160 90 321.7 219.9
    HSGL01-100/60E-131 1200 100 60 125.66 87.65
    HSGK01-80/50E-131 700 80 50 101.79 70.37
    HSGK01-80/50E-131 640 80 50 101.79 70.37
    HSGK01-80/50/E-131 550 80 50 101.79 70.73
    HSGL01-80/50-131 500 80 50 80.43 54.98
    HSGL01-80/50E-131 440 80 50 80.43 43.41
    HSGL01-63/35E-131 200 63 35 50 34.5
    HSGL01-63/35E-131 300 63 35 50 34.5
    HSGL01-50/28E-131 140 50 28 31.42 21.56


    Model: variety of specifications
    Type: Engineering hydraulic cylinder

    The maximum stroke: 3000MM

    Bore diameter: 40 ~ 1000mm
    Rod diameter: 22-480MM

    Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.

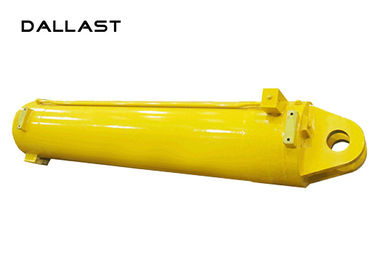

    Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery

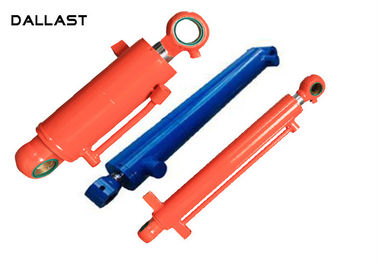

        Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery

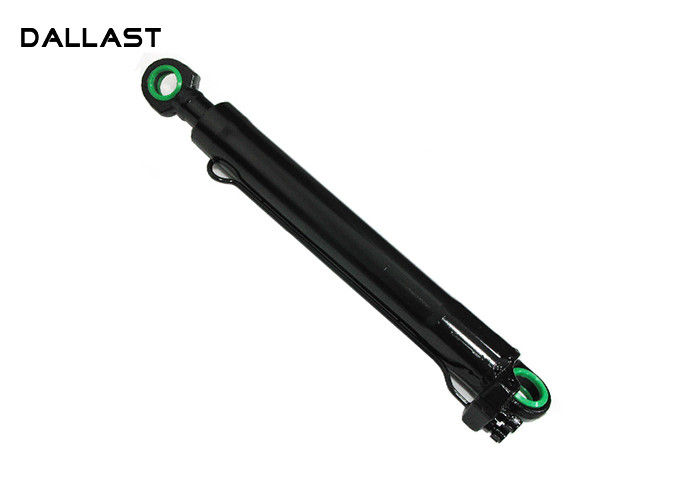

    Eye Cross tube Double Acting Hydraulic Cylinder for Construction Machinery
