Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck

    • Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck
    • Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck
    • Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck
  • Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Usage: Automation And Control Seals: Parker, Merkel, Hallite
    Working Method: Straight Trip Power: Hydraulic
    Origin: Shandong, China Color: Any Color
    Trademark: Dallast Available Temperature: -40℃ To 80℃



    Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck




    Product description:



    Sealing system
    All the hydraulic cylinders produced by our company adopt the seal ring products of Parker, Merkel.



    Piston rod
    The piston rod is made of high strength carbon steel with precision grinding treatment. With the design concept of improving the rod strength and the high performance heat treatment, hard chrome plating and CNC tumbling, the even veins and high degree of finish of the surface is guaranteed, and it has good oil membrane at the surface, which improves the service life of the seal parts.



    Guide sleeve

    The sleeve is made of high strength spheroidal graphite cast iron and high strength steel under buffering inner bore copper welding treatment.



    Cylinder block
    The cylinder block is made of high strength carbon steel. The internal surface of the cylinder is designed with proper strength, size, and thickness of cylinder body, and it has good degree of finish and rigidity under the tumbling treatment which minimizes the inner friction, improves the wear resistance and prolongs the service life.



    Piston and piston seals
    The standard piston is of one-piece steel structure. The firm lock-up between the long screw thread and the steel ball is convenient for the installation and it also guarantees the reliable operation under high speed load. New design of screwing parts greatly improved the cross section where the piston rod bears the axial load and improves the strength of piston rod to the maximum.



    Buffering
    The buffering sleeve of the cylinder is made o



    Application

    Construction vehicle,excavator,crane,construction machinery,shipbuilding,metallurgy industry,hydro power project,agriculture machinery etc.


    Main Parameters:





    Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck



    This is for single-acting application, and with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).
    No. Model Extension

    Primary

    bushing

    diameter

    Stroke

    upper

    trunnion

    bottom trunnion

    Lug

    Dia

    Closed

    Length

    Pressure

    ID From

    withins

    From the

    outside

    From

    within

    From

    the

    outside

    1 37TG-F85 x 2743EZ-00 3 85 2726     165.1 228.5 32 195 20
    2 4TG-F 150 X 4280EZ-00 4 150 4280     201 331 60 1394 20
    3 4TG-F172 X 4280 4 172 4280 340 470 245 385 60 343 20
    5 5TG-F196, X 6180ZZ-00 5 196 6180 360 490 270 400 60 343 20
    6 5TG-F206 X 7300ZZ-00 5 206 7300 360 490 270 400 65 343 20
    7 5TG-F221 x 903022-00 5 221 9030 360 490 290 420 65 486 20
    8 5TG-F248*9030ZZ-00 5 248 9030 420 560 342 480 75 486 20

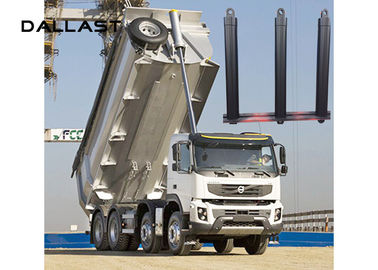

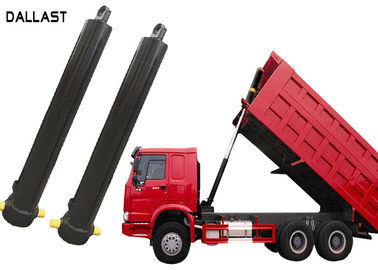

    hydraulic cylinder for dump truck , trail truck,garbage truck,crane



    1. Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

    2. underbody telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

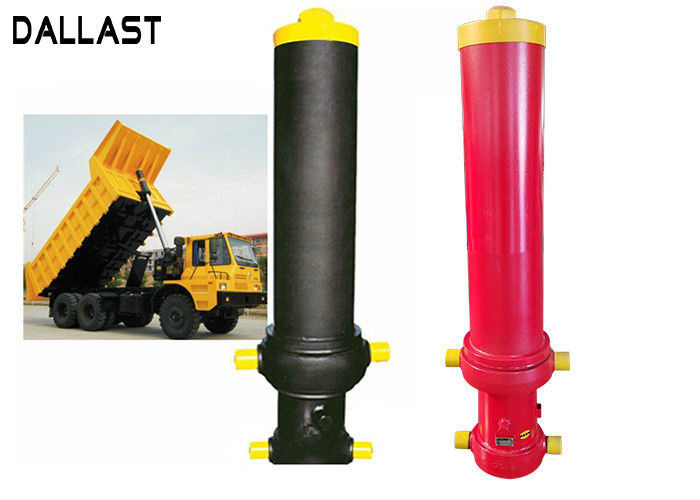

    hydraulic cylinder for coal mine dump truck



    3. Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.



    4. Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.



    5. customer hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.



    Company profiles:


    Dallast Industrial Co. Ltd established in 2002. Located in Qingdao City Shandong Province. Our factory has nearly 15 years producing history. From 2007, our hydraulic cylinder has been exported to many countries all over the world such as Canada, America, Australia, Bolivia, Thailand, Korea is our main market. In the past years, our products get a very good feedback from our customer. We focus on high quality, best after-sale service, win-win cooperation.
    As our main series products, our telescopic hydraulic cylinder is widely used all over the world, we import famous seals PARKER from the US, and there are special seals for our company for PARKER company, so this extend the life of cylinders.


    FAQ:


    1. How can I decide which model to buy?
    We will recommend the most suitable machines for you after informed by your requirements.

    2. OME Service Available?
    (1) Usually, we will manufacture the products as our design.
    (2) We also can make any products accordingclients’ requirements.

    3. Do your products come with a warranty?
    Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.

    4. Delivery Time?
    (1) For standard specification products, usually 15-25 days.
    (2) For non-standard products, usually more than 1 month.

    5. How about the warranty and after-sale service?
    All of our products have one year warranty, and we can offer you long-distance after-sale
    service 7/24h.


    Product Show:

    Customized Single Acting Hydraulic Cylinder for Agricultural Dump Truck
