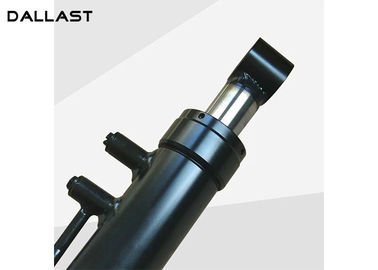

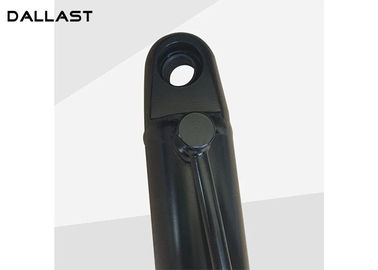

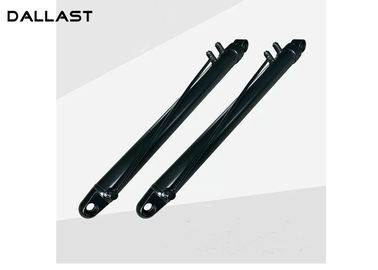

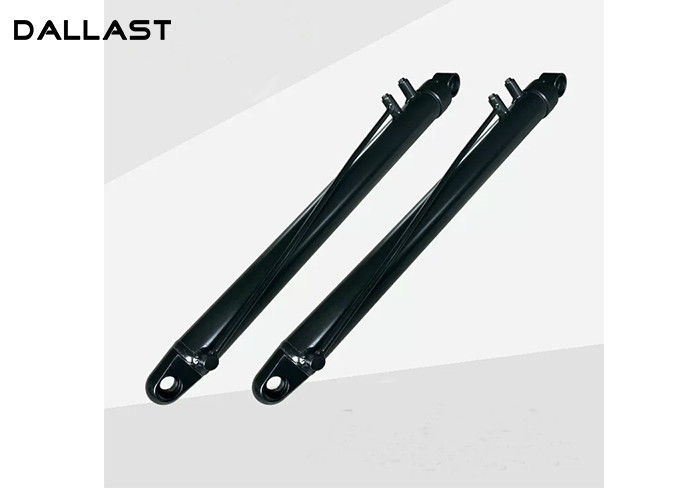

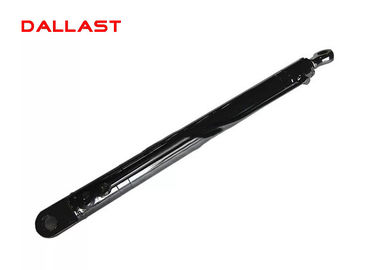

Telescopic Industrial Piston Stacked Cars Double Acting Hydraulic Cylinder

Telescopic Industrial Piston Stacked Cars Double Acting Hydraulic Cylinder

Application: Warehousing and logistics equipment, lifting equipment, construction machinery, engineering vehicles

Model: variety of specifications

The maximum stroke: 3000MM

Bore diameter: 40 ~ 1000mm

Rod diameter: 22-480MM

Special Non-standard large diameter, long stroke hydraulic cylinder can customized for you.

     As a highly specialized hydraulic cylinder manufacturer, we can design according to user requirements, manufacturing various types of standards, non-standard hydraulic cylinders,Provide perfect quality integrated services.
Hydraulic Cylinder: HSG-01 Engineering Cylinder, Y-HG1 (YG) Metallurgical Cylinder, CD250 CD350 CG250 CG350 Heavy Metallurgical Cylinder, DG Vehicle Cylinder, Heavy Duty Hydraulic Cylinder, Plunger Cylinder, Woodworking Machinery Hydraulic Cylinder, Corrosion Resistant Hydraulic Cylinder and special non-standard large diameter, long stroke hydraulic cylinder

      Piston hydraulic cylinder can be divided into single-rod and double-rod two structures, the fixed way by the cylinder fixed and fixed piston rod two, according to the role of hydraulic pressure has a single role and double-acting. In a single role In the hydraulic cylinder, the pressure oil is only provided in a cavity of the hydraulic cylinder, which realizes unidirectional movement of the cylinder by hydraulic pressure and external force (such as spring force, self-weight or external load) in the opposite direction; and the double-acting hydraulic cylinder piston movement in both directions alternately into the two chambers through the oil, the role of hydraulic pressure to complete, it is only one side of the piston with a piston rod, so the effective area of ​​the two chambers are different. In the oil the same amount, the different chamber into the oil, the piston speed of movement is different; in the same load force to be overcome, the different chamber into the oil, the required oil pressure is different, or set in the system pressure, sanitation Garbage truck hydraulic cylinder movement in both directions can overcome the load force is different.
