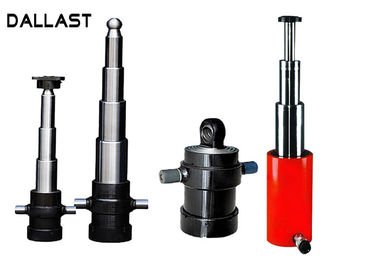

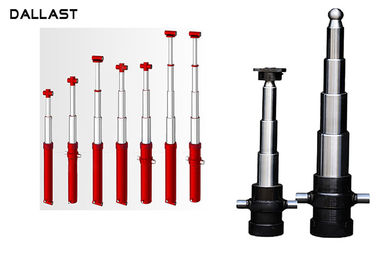

Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders

Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders

    • Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders
    • Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders
    • Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders
  • Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Hardness: HRC 45-55 Seals: Parker, Merkel, Hallite
    Working Method: Straight Trip HS Code: 8412210000
    Power: Hydraulic Working Pressure: 16-32 Mpa
    Standard: Standard, Nonstandard Special Cylinder Type: Special Cylinder Type



    Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders​




    Specifications:


    1. Good craft
    2. Use high technic to design
    3. Well ratio of quality and price
    4. Short delivery time

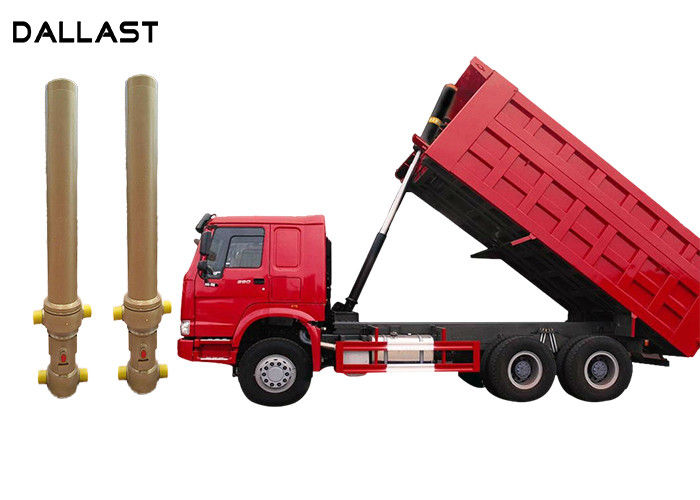

    Front tipping telescopic hydraulic cylinder for dump truck combined with its many years of experience in global markets, using its proprietary design and processing technology, the front hydraulic cylinder structure performance improvements:

    1. A new generation of series products, hydraulic cylinder diameter larger, stronger lifting force ;

    2. Through special processing, dedicated high-quality, high-precision steel pipe material, the maximum working pressure of 3000 psi, the flexural capacity is stronger ;

    3. New guide ring structure with advanced sliding material, make the hydraulic cylinder lifting more smooth, long service life;

    4. we update the seals structure to be sure the oil will not be leak under high pressure and bad working environment.

    We can also design the technical drawing sheets and technical solution plans according to your requirement.



    Company profiles:


    Dallast Industrial Co. Ltd established in 2002. Located in Jinan City Shandong Province. Our factory has nearly 18 years producing history. From 2007, our hydraulic cylinder has been exported to many countries all over the world such as Canada, America, Australia, Bolivia, Thailand, Korea is our main market. In the past years, our products get a very good feedback from our customer. We focus on high quality, best after-sale service, win-win cooperation.
    As our main series products, our telescopic hydraulic cylinder is widely used all over the world, we import famous seals PARKER from the US, and there are special seals for our company for PARKER company, so this extend the life of cylinders.

    Product description:


    FC series telescopic cylinder are suitable for the machine which requires long stroke and short length.
    1. Including single acting and double acting.
    2. Small size and high intensity
    3. Sealing systems seal rings of NOK from Japan and Parker from the US that have good lifetime.
    4. Cylinder body, the thickness of cylinder body and flange can be changed, the cylinder inner surfaces manufactured as per appropriate intensity and dimensions
    have excellent roughness and rigidity and better wearing capacity after roll finishing. They have 100% nondestructive test.
    5. Piston rod high frequency quenching followed by hard chrome plating to improve rust proofing and wear and scar resisting performance



    Main Parameters:


    Single-acting Hydraulic Cylinder Details:

    This is for single-acting application, and with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).



    Product Single Acting Hydraulic Cylinder
    Stroke for oil cylinders 50mm-16000mm
    Inside Cylinder Tube Dia. 40 - 1000 mm (1.5 - 40 inch)
    Liner material Copper (prolongs the life cycle of cylinder)
    Hydraulic cylinder tube material Carbon steel, Alloy steel, Stainless steel
    Piston Rod Dia 12 - 500 mm (1/2 - 20 inch)
    Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra
    Chome Plated Cr, Ni or Ceramic
    Design Pressure Max 700 bar (10150 PSI)
    Weight Max 60 tons
    Valves SUN (USA),or famous Chinese brand with same quality to PARKER
    Seals Type PARKER (USA), MERKEL (Germany) or NOK (Japan)
    Liner material Copper (prolongs the life cycle of cylinder)
    Bearings LONGXI (China) or SKF
    Painting Follow with customer requirement or 3-coat marine painting
    Certificate DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS
    Application Engineering machinery (Excavator/ Forklift/ Cranes/ Tipper truck,etc), mine, metallurgy, shipping, water conservancy, etc.


    FAQ:


    1. How can I decide which model to buy?
    We will recommend the most suitable machines for you after informed by your requirements.

    2. OME Service Available?
    (1) Usually, we will manufacture the products as our design.
    (2) We also can make any products accordingclients’ requirements.

    3. Do your products come with a warranty?
    Yes, we have one year warranty. In this year, if the quality have problems we will free repair for you.

    4. Delivery Time?
    (1) For standard specification products, usually 15-25 days.
    (2) For non-standard products, usually more than 1 month.

    5. How about the warranty and after-sale service?
    All of our products have one year warranty, and we can offer you long-distance after-sale
    service 7/24h.



    6. Can I customize our products from your factory?

    Yes, we can make products according to your requirements. Please send me your specifications and drawings.


    Product Show:

    Multi Stage Telescopic Hydraulic Cylinder , Agricultural Telescopic Dump Truck Cylinders
