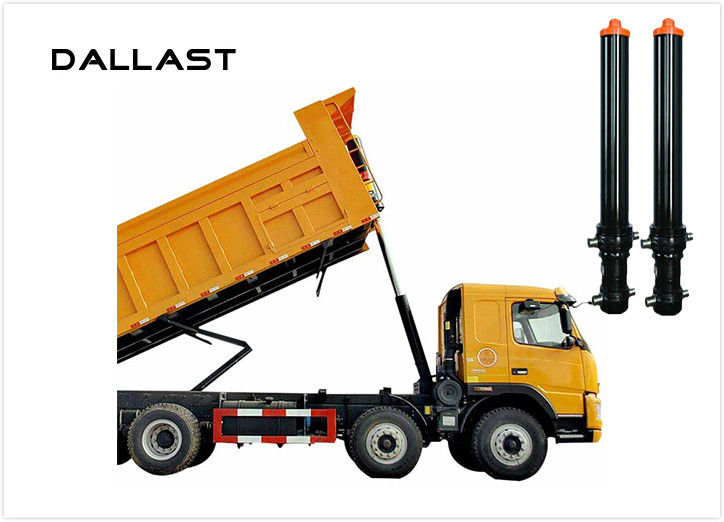

Single Acting Lift Telescopic Hydraulic Cylinders For Dump Truck / Tipper

Single Acting Lift Telescopic Hydraulic Cylinders For Dump Truck / Tipper

    • Single Acting Lift Telescopic Hydraulic Cylinders For Dump Truck / Tipper
    • Single Acting Lift Telescopic Hydraulic Cylinders For Dump Truck / Tipper
    • Single Acting Lift Telescopic Hydraulic Cylinders For Dump Truck / Tipper
  • Single Acting Lift Telescopic Hydraulic Cylinders For Dump Truck / Tipper

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation

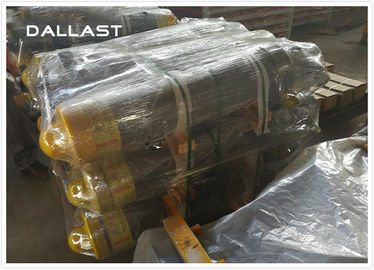

    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Hardness: HRC 45-55 Color: Any Color You Want
    Extended Stages: 3-7 Stages Adjusted Form: Regulated Type
    Delivery Time: 15-25 Days Standard: Standard, Nonstandard
    Working Pressure: 16-32 Mpa Means Of Transport: Ocean, Air


    Single Acting Lift Telescopic Hydraulic Cylinders Used For Dump Truck / Tipper


    Main parameters:
    Bore size:1.5"-2"
    Rod Diameter: 0.625"-1.25"
    Stroke: 200-10000
    Working Pressure: 10-32MPa
    Oil port: 1/4NPT, SAE is available
    Tube: Precision honed steel
    Piston & Gland: Dctile iron
    Rod: Hard chrome plated
    Intended Use: Single actingApplication


    No.ModelExtension

    Primary
    bushing
    diameter

    Stroke

    upper t
    runnion

    bottom trunnion

    Lug
    Dia

    Closed
    Length

    ID From
    withins

    From the
    outside

    From
    within

    From
    the
    outside

    137TG-F85 x 2743EZ-003852726  165.1228.532195
    24TG-F 150 X 4280EZ-0041504280  201331601394
    34TG-F172 X 42804172428034047024538560343
    447G-F182X4280ZZ-004182428034047024538560343
    55TG-F196, X 6180ZZ-005196618036049027040060343
    65TG-F206 X 7300ZZ-005206730036049027040065343
    75TG-F221 x 903022-005221903036049029042065486
    85TG-F248*9030ZZ-005248903042056034248075486


    Workmanship of the hydraulic cylinder:
    1. Seals type: parker,Nok,Busak,Shamban or in accordance with client's requirements.
    2. Piston rod: chrome or nickel plated,ground&polished piston rod.
    3. Tube: high tensile cold drawn tube,precision honed for extended seal life.

    Technical specifications of Hydraulic Cylinder:
    1. hydraulic cylinder with hollow plunger design allows for both pull and push forces.
    2. single-acting,spring return.
    3. baked surface can resist increasesd corrosion.
    4. collar threads for easy fixture.
    5. nickel-plated,floating center tube increases product life.
    6. For the detailed technical specifications, pls contact us for related product catalogues.

    After-sales service of the hydraulic cylinder:
    1. we offer the spare parts free of charge.
    2. we offer one year guarantee period on the product quality.

    FAQ:

    1. How can I decide which model to buy?
    We will recommend the most suitable machines for you after informed by your requirements.

    2. OME Service Available?
    (1) Usually, we will manufacture the products as our design.
    (2) We also can make any products accordingclients’ requirements.

    3. What is the payment method?
    (1) T/T: in advance. (2) West Union: we can accept small payment (below3000), but the bank charges shall be paid by the buyer.
    (3) L/C is acceptable if the amount is big enough.

    4. Delivery Time?
    (1) For standard specification products, usually 15-25 days.
    (2) For non-standard products, usually more than 1 month.

    5. How about the warranty and after-sale service?
    All of our products have one year warranty, and we can offer you long-distance after-sale
    service 7/24h.

    If you need more information, please contact me without any hesitation. Sincerely welcome you to visit our factory at any time!


    Company Profile:
    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.

    Product Show:

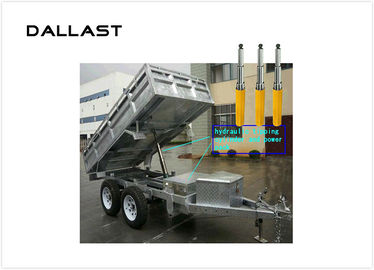

    Single Acting Lift Telescopic Hydraulic Cylinders For Dump Truck / Tipper
