Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process

Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process

    • Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process
    • Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process
    • Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process
    • Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process
  • Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Surface Treatment: Black Painted Scheduling Axis Hardness: Hb 220-280
    Model Number:: Hydraulic Piston Rod Chrome Thickness: >15 Um
    Surface Chrome Hardness: >950 HV Application: Hydraulic Cylinder

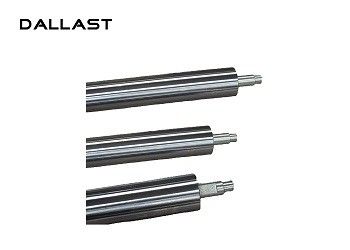

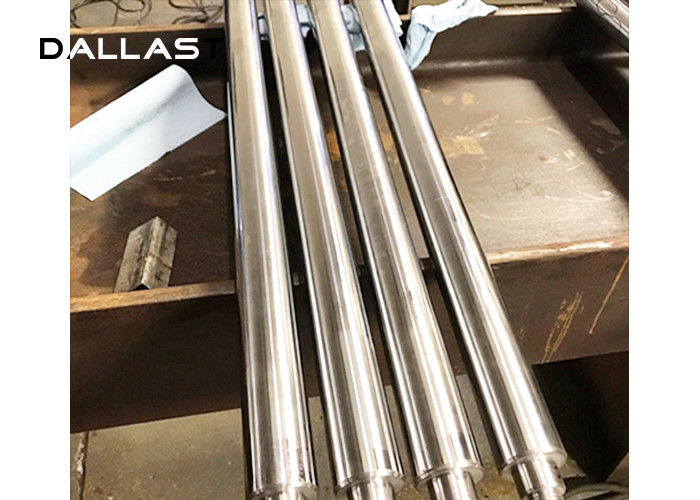

    Chrome Plated Carbon Steel Hydraulic Piston Rod Cylinder Parts



    Proces CNC Machining
    Material stainless steel , carbon steel , alloy steel
    Material Grade GB, ASTM , AISI , DIN , BS, JIS, NF
    Weight 10g~150kg
    Accuracy ISO2768-mk
    Surface Roughness up to Ra0.7~Ra1.6
    Production capacity more than 1500MT per year
    Heat Treatment

    anneal,quenching,normalizing,carburizing, polishing,

    plating, painting

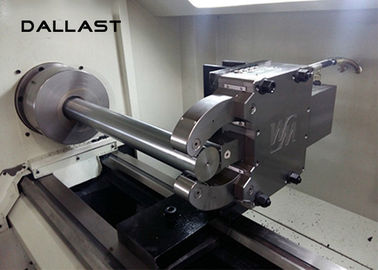

    Machining Equipment

    CNC center , CNC machines, turning machines,

    drilling machines , milling machines, grinding machines

    Measuring Tool

    CMM , vernier caliper, depth caliper, micrometer,

    pin gauge, thread gauge , height gauge

    QC system 100% inspection before shipment
    MOQ 500kg
    Lead Time sample fast , lot production depends on customers' request
    Certification ISO9001 , TS16949
    Payment Terms T/T , L/C, D/P , D/A
    Shipment Terms FOB , CFR, CIF



    OUR ADVANTAGES OF PISTON ROD
    1. Our quality is the top five in China. Raw material is mainly from some famous refinery steel mills, such as BAO STEEL, Tianjin, and Chengdu etc, which are the best and largest raw material manufacturers in China. we have been through ISO9001:2000 international quality system certification. Warranty period for our honed tubes and chrome bars is 2 years. For some special or important customers, the period is 5 years. All the orders, records of production and inspection would be kept for 5 years.
    2. We own 18 sets of equipment for piston rod in completely production, producing OD from 12mm to 500mm, at max length of 16m. Plate according to customers’ different requirements such as Chrome, Nickel, and Ceramic. Thickness is from 10μm to 100μm.
    3. High Precision: Honed tube (Roughness of tube is 0.2μm and straightness is less than 0.15/1000), piston rod (Plating thickness is 10-100 micron. Surface roughness is 0.2μm and straightness is also less than 0.15/1000)
    4. Product details are completely according to International Standard, chrome rod and honed tube must be cut flatly, and no chrome marks on the surface of rod. (Most of domestic mills don’t do this in order to reduce cost)
    5. Delivery time is very fast. The average delivery time is 5-30 days after confirming the orders. Production output for honed tubes is about 300tons per month and 200tons for chrome bars per month.
    6. Package: our packages are safer than others’ supplier in China. Packing for rod normally we choose is cardboard that film attached inside, which does not only prevent rods from scratch but also from oil rusting. Tubes are made with caps at both end and painted oil on inside and outside surface. For full container, extra package like parcel at outside will be used.



    Hydraulic Hard Chrome Piston Rod , Chrome Plated Round Bar CNC Machining Process
