| Place of Origin: | Shandong |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, D/P, L/C |
| Supply Ability: | 50,000 Pieces/Year |
| Acting Way: | Single Acting | Hardness: | HRC 45-55 |
|---|---|---|---|
| Available Temperature: | -40℃ To 80℃ | Color: | Any Color As Your Requirtments |
| Warranty: | One Year | Adjusted Form: | Regulated Type |
| Material: | 20#, 45# Steel, 21#, 27# SiMn | Standard: | Standard, Nonstandard |
| High Light: | single acting telescopic hydraulic cylinders,hydraulic oil cylinder |
||

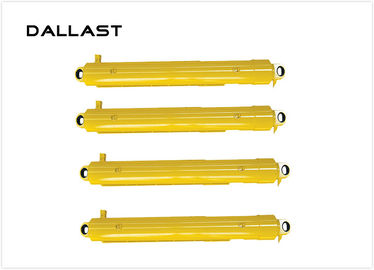

Chrome FC Single Acting Hydraulic Welded Cylinders for Agricultural Vehicle
Main Parameters:
| Model | Tipping.Max | Press | Close.height(mm) | Tanker.Vol | carriage | Rear overhang | Lifting.angle |
| (T) | (MPa) | (L) | (mm) | (degree) | |||
| 3TG-E140×4000 | 24.6 | 16 | 1675 | 50 | 5200-5400 | 700mm | 48-52 |
| 4TG-E140×4270 | 24.6 | 16 | 1421 | 55 | 5400-5600 | 700mm | 48-52 |
| 4TG-E175×4450 | 38.5 | 16 | 1470 | 81 | 5600-6000 | 800 | 48-52 |
| 4TG-E175×4650 | 38.5 | 16 | 1509 | 84 | 6000-6400 | 800 | 48-52 |
| 4TG-E175×5000 | 38.5 | 16 | 1597 | 91 | 6400-6600 | 800 | 48-52 |
| 4TG-E175×5390 | 38.5 | 16 | 1695 | 98 | 6600-7000 | 800 | 48-52 |
| 4TG-E175×5780 | 38.5 | 16 | 1792 | 104 | 7000-7400 | 800 | 48-52 |
| 4TG-E175×6000 | 38.5 | 16 | 1851 | 109 | 7400-7800 | 800 | 48-52 |
| 4TG-E175×6180 | 38.5 | 16 | 1897 | 112 | 7800-8000 | 800 | 48-52 |
| 4TG-E185×4650 | 43 | 16 | 1509 | 96 | 6200-6600 | 800 | 48-52 |
| 4TG-E185×5000 | 43 | 16 | 1597 | 103 | 6600-6800 | 800 | 48-52 |
| 4TG-E185×5390 | 43 | 16 | 1695 | 111 | 6800-7200 | 800 | 48-52 |
| Mouting styles | Flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang. Cylinder mounting is chosen based upon the application’s requirements |
| Mounting position | Optional |
| Bore size | Several bore sizes and in varying strokes; Many of these sizes are available |
| Stroke | Depend on the application |
| Operating pressures |
Nominal pressure:25 MPa (250 bar 3625 psi) Static test pressure: 37 MPa (370 bar 5440 psi) Cylinders are designed for normal or high pressure |
| Operating temperature | -30 to +80 degrees Celsius, but the unit should not be used when oil is frozen. |
| Hydraulic fluid | Custom |
How to offer?
What is the information we require for customer before we make the quotation?
1. Bore & Rod Dia. ( inch or mm).
2. the closed & opened length (Stroke).
3. Mounted Type: like bearing or clevis 4. Working & Testing Pressure.
5. the oil port size, thread size.
6. Assembling way & distance.
7. Drawing or blueprint is enough for quotation.
What's hydraulic cylinder?
A hydraulic cylinder is a mechanical actuator used to provide unidirectional Force through a unidirectional stroke. Hydraulic cylinders are used in almost Every industry and are available in a variety of confiurations.
the two main types of hydraulic cylinders are Tie-rod and Welded.
Each of these cylinder types can have unique applications due to their designs.
Tie-rod cylinders are usually installed in light to medium duty applications and are generally designed to be repaired or re-packed if necessary.
Welded cylinders are designed for most applications and are more complex in Design, but are generally more diffiult to repair due to the welded design. Welded cylinders are typically a better solution due to their compact design and when a more robust design is important in an application.
What's mounting options?
the most commonly used mounting options are flange, trunnion, clevis, pin-eye, Cross-tube, spherical, and tang.
Cylinder mounting is chosen based upon the applications requirements.
Why choose us?
1. Various style for completely series hydrauli products for you to choose.
2. High quality with competitive price.
3. Provide free products information.
4. Reliable quality assurance and active after-sell service.
5. Short lead time.
6. Supply custom made cylinders for our customers.
Company Profile:
Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.
Quality Assurance:
Use high-end components.
the best design which is designed by experienced engineers.
Well-trained workforce.
All hydraulic cylinders must do pressure test before shipment.
Good quality control and assurance system.
Advanced test apparatus.
High pricision measuring apparatus.

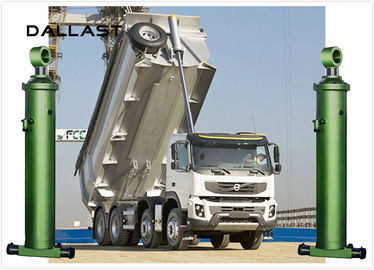

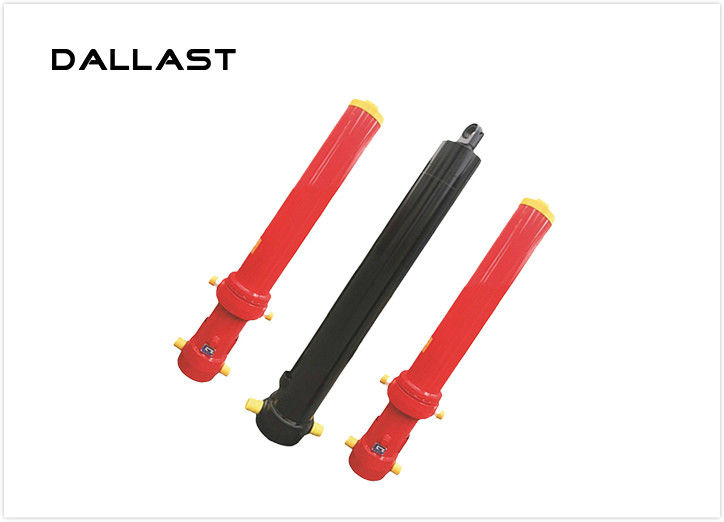

Product Show:
