Welded Hydraulic Cylinders Single Acting for Industrial Machinery

    • Welded Hydraulic Cylinders Single Acting for Industrial Machinery
    • Welded Hydraulic Cylinders Single Acting for Industrial Machinery
    • Welded Hydraulic Cylinders Single Acting for Industrial Machinery
  • Welded Hydraulic Cylinders Single Acting for Industrial Machinery

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting HS Code: 8412210000
    Working Method: Straight Trip Hardness: HRC 45-55
    Available Temperature: -40℃ To 80℃ Power: Hydraulic Oil
    Special Cylinder Type: Custom Hydraulic Cylinder Standard: Standard, Nonstandard

    Welded Hydraulic Cylinders Single Acting for Industrial Machinery​





    Key Specifications:



    Hydraulic tilting cylinder
    As a manufacturer of hydraulic cylinders in China , we own the best technology and apply for 13 national patent about Telescopic Hydraulic Cylinders .so our cylinders own a high reputation in international market , our repair rate is less than 1% every year .

    we produce it according to ISO 9001 :2000
    we can produce standard telescopic hydraulic cylinders and nonstandard telescopic hydraulic cylinders for our customers .

    Cylinder Details:

    1. Mounting type: trunnion, flange, earring, according to your demand;
    2. Seal: use Parker, NOK and other famous seal parts to ensure the quality.
    3. Piston rod: 20#, 45# steel with high frequency quenching;
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder;
    5. Size: bore:20-500mm(7/8"- 20"); stroke can reach to 3000mm;
    6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.

    hydraulic cylinder for engineering
    1. Max stroke: 190" or 10000mm
    2. Max bore ID: 32" or 800mm
    3. Various structure form



    Characteristics:


    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.



    The information about our company:

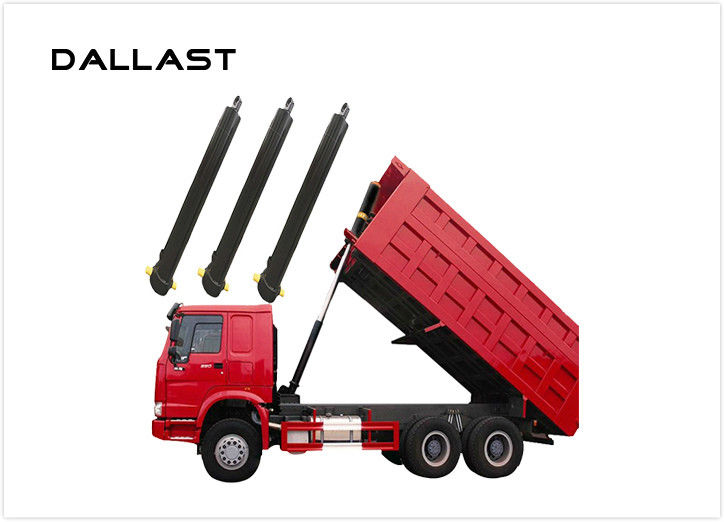

    Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.



    Single Acting Hydraulic Cylinder Inner Workings and Uses

    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.

    We have technology terms and can design drawing according to provided information for your review.

    We are solding our products to nearly the whole global.

    Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got

    your inquiry.Thank you!



    Parameters:



    Welded Hydraulic Cylinders Single Acting for Industrial Machinery
    Features Customer Hydraulic Cylinder
    Bore Diameter 2'-60'/50-1500mm
    Rod Diameter 1' - 60'/25 -1500 mm
    Wall Thickness 0.1'-4'/3-100 mm
    Max Stroke 366'/10000 mm
    Max Pressure 9600 psi/600 bar
    Test Pressure 14500 psi/1000 bar
    Material 20#,40#,45#,16Mn,27SiMn,etc
    Seal Kits Hallite,Parker,NOK,SKF,DICHTOMATIK,Trelleborg,Merkel,etc
    Diamensional Accuracy H7-H11
    Bore Roughness Ra 0.4-1.6mm
    Coating Hard chrome
    Purpose Construction,metallurgical,mining,agricultural,forestry machinery,etc
    OEM Yes
    MOQ 1 Piece
    Certificates Gs, RoHS, Ce, ISO9001


    FAQ:



    1. Does your products come with a warranty?
    Yes, we have one year warranty. During the period,we can send you replacement free of charge if there is quality problem.



    2. Can I customize our products from your factory?
    Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.



    3. Can I get samples to test before starting cooperation?

    Of course.We would like produce sample hydraulic cylinder for your confirmation.



    4. How many days will samples be finished?

    Generally 5-7days for samples making.



    5. I want to see your hydraulic cylinders,where is your factory?

    Our factory is located in Qingdao City,Shandong Province.



    6. What’s your cylinder PPM?

    5000 PPM. We do 100% inspection before delivery.



    7. Have you been exported to overseas?

    We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.

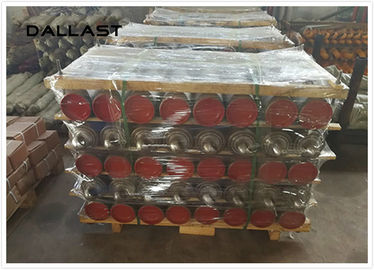

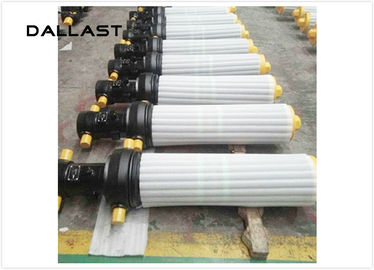

    Product Show:



    Welded Hydraulic Cylinders Single Acting for Industrial Machinery
