Customized Hydraulic Hoist Cylinder Hydropower Station Dam Gates

Customized Hydraulic Hoist Cylinder Hydropower Station Dam Gates

    • Customized  Hydraulic Hoist Cylinder Hydropower Station Dam Gates
    • Customized  Hydraulic Hoist Cylinder Hydropower Station Dam Gates
    • Customized  Hydraulic Hoist Cylinder Hydropower Station Dam Gates
  • Customized  Hydraulic Hoist Cylinder Hydropower Station Dam Gates

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 3000PCS per year
    Contact Now
    Detailed Product Description
    Standard: Nonstandard Mounting Type: Front Flange
    Size: Customized Working Pressure Pressure: High Pressure
    Temperature: -30ºC~150ºC Usage: Heavy Duty Hydropower Station, Dame Gates

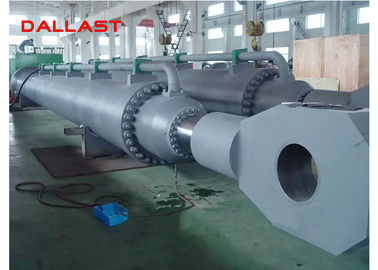

    Customized Heavy Duty Hydropower Station Dam Gates Hydraulic Hoist Cylinder



         Integrated hydraulic hoist is a motor as the power source, the motor forward and reverse drive the two-way pump output pressure oil, driven by the oil manifold block piston rod displacement reciprocating motion, in order to achieve the gate opening and closing function. It is a hydraulic cylinder as the main body, respectively, by the pump, motor, fuel tank, oil filter, integrated hydraulic control valve, electrical control box and other combinations, according to hoist working characteristics of different hydraulic cylinders.
         Please provide hoist model, itinerary, installation form, opening and closing force, gate type (L: horizontal sliding door, P: plane gate, H: arc gate, W: gate under the gate,R: Miter gate), hanging points, opening and closing the gate speed and other related parameters.



    Model

    Opening and Closing force

    KN

    Stroke

    m

    Bore Diameter

    mm

    Rod Diameter

    mm

    Pressure

    Mpa

    Opening and Closing Speed

    m/min

    63*6 63
    6m
    100 63 13.3 0.5-L0
    80*6 80 100 63 16.9 0.5-L0
    100*8 100
    8m
    110 70 17.3 0.5-L0
    125*8 125 125 80 17.7 0.5-L0
    160*8 160 140 90 16.3 0.5-L0
    200*8 200 160 100 15.7 0.5-L0
    250*8 250 180 110 14.6 0.5-L0
    320*8 320 200 110 17.7 0.5-L0
    400*8 400 220 140 16.3 0.5-L0
    500*8 500 250 140 15.7 0.5-L0
    630*12 630 12m 280 160 14.6 0.5-L0
    800*12 800 300 160 17.7 0.5-L0
    1000*12 1000 320 160 16.3 0.5-L0
    1250*13 1250 13m 340 160 15.7 0.5-L0
    1600*14 1600 14m

    380 160 14.6 0.5-L0
    2000*14 2000 420 180 17.7 0.5-L0
    2500*14 2500 480 200 17.2 0.5-L0
    3200*16 3200 16m

    540 220 17.7 0.3-0.8
    4000*16 4000 600 250 17.2 0.3-0.8
    5000*18 5000 18m

    670 300 17.2 0.3-0.8
    6300*18 6300 750 320 17.4 0.3-0.8
    8000*18 8000 840 360 17.7 0.3-0.8
    10000*20 10000 20m 950 400 17.2



    0.3-0.8




    The company mainly products

    1. Engineering hydraulic cylinder series:

    Hydraulic cylinder mainly refers to: hydraulic cylinders for hydraulic systems such as construction machinery, heavy machinery, cranes and mining machinery, but not limited to the above. Hydraulic cylinder for the double-acting, single-piston hydraulic cylinder, the installation of more use of earrings, according to the cylinder head and cylinder connection can be divided into different ways of external thread connection, the card key connection and flange connection.

    2. Metallurgical equipment hydraulic cylinder


    Metallurgical equipment standard hydraulic cylinder with a variety of specifications and varieties, bore diameter is generally in the 40-320mm range, working pressure ≤ 16MPa, available hydraulic oil mechanical system loss of oil and emulsion and other working medium, the use of temperature range of -40 ~ 80 ℃ , The installation of a flange, earrings, pins and other forms and in line with ISO6020 / 1-1981 standards, in addition to tripod (base) type.

    3. Vehicles hydraulic cylinder

    This series of hydraulic cylinders is mainly used in hydraulic systems of construction machinery, lifting and transport machinery, mining equipment and other vehicles, the installation method is: earrings, are double-acting single-piston hydraulic cylinder.

    4. Heavy duty hydraulic cylinder

    CD / CG250 CD / CG350 series heavy duty hydraulic cylinder
    Heavy-duty hydraulic cylinder has a single-piston double-acting CD-type differential piston cylinder and double acting CG-type double-acting piston cylinder two. Its installation form and size in line with ISO3320 standards, especially suitable for harsh environments, heavy working conditions, suitable for steel, casting and machinery manufacturing and other occasions.


    5. Telescopic sleeve hydraulic cylinder

    TG series of single-acting multi-stage telescopic sleeve hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.



    Customized  Hydraulic Hoist Cylinder Hydropower Station Dam Gates

    Customized  Hydraulic Hoist Cylinder Hydropower Station Dam Gates

    Customized  Hydraulic Hoist Cylinder Hydropower Station Dam Gates
