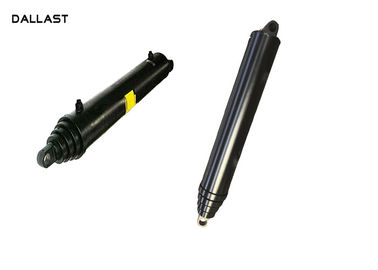

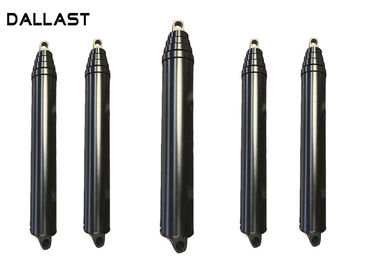

Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck

Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck

    • Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck
    • Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck
    • Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck
  • Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Material: Stainless Steel
    Standard: Standard, Nonstandard Warranty: 12 Months
    Certification: Gs, RoHS, Ce, ISO9001 Delivery Time: 15-25 Days
    Available Temperature: -40℃ To 80℃ Power: Hydraulic



    Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck




    Key Specifications/Special Features:

    Dallast has a strong commitment to supply the world-class quality products, our factory has strict control system, advanced production equipment, including Kuka robots, friction welding machine and advanced CNC processing center and more.
    Dallast front end tipping solution with standard operating pressure up to 250 bar providing the best performance through the combination of reducing weight, increasing tipping speed and stability.
    Dallast has a complete range of front-end cylinders: with cover (FC), top eye (FE), top and bottom eye(FEE) with max. Lifting capacity up to 120 tons.

    FAQ:

    Q1: Are you a trading company or manufacturer?
    A1: We are the manufacturer with Exporting License.

    Q2: How long have you been in Hydraulic Cylinder industry?
    A2: Our factory is built in year 2002 and start by manufacturing Pneumatic Cylinder. From year 2007, we start manufacturing Hydraulic Cylinder.

    Q3: How long is your warranty period?
    A3: We offer 13 months warranty period after on board.

    Q4: How long does it take to process orders?
    A4: It usually takes 15-25 days to process. We don’t have stock.

    Q5: What’s your cylinder PPM?
    A5: 5000 PPM. We do 100% inspection before delivery.

    Q6: Have you been exported to overseas?
    A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.

    Hydraulic tilting cylinder:
    As manufacturer of hydraulic cylinders in China, we own the best technology and apply for 13 national patent about telescopic hydraulic cylinders so our cylinders own a high reputation in international market, our repair rate is less than 1% every year.
    We produce it according to ISO 9001:2000
    We can produce standard telescopic hydraulic cylinders and nonstandard telescopic hydraulic cylinders for our customers.
    Cylinder details:
    1. Mounting type: turning, flange, earring, according to your demand
    2. Seal: use parker, NOK and other famous seal parts to ensure the quality
    3. Piston rod: 20#, 45# steel with high frequency quenching
    4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder
    5. Bore size: 20-800mm (7/8-20"), stroke can reach to 10000mm
    6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval
    Hydraulic cylinder for engineering
    1. Max stroke: 190" or 10000mm
    2. Max bore inner diameter: 32" or 800mm
    3. Various structure form
    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free support, longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.


    Single Acting Hydraulic Cylinder Inner Workings and Uses

    A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.
    We have technology terms and can design drawing according to provided information for your review.
    We are solding our products to nearly the whole global.
    Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got
    your inquiry.Thank you!

    Parameters:
    Dallast Technology Co., Ltd hopes to work together with you, developing in parallel!



    Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck



    Model Tipping.Max Press Close.height(mm) Tanker.Vol carriage Rear overhang Lifting.angle
    (T) (MPa) (L) (mm) (degree)
    3TG-E140×4000 24.6 16 1675 50 5200-5400 700mm 48-52
    4TG-E140×4270 24.6 16 1421 55 5400-5600 700mm 48-52
    4TG-E175×4450 38.5 16 1470 81 5600-6000 800 48-52
    4TG-E175×4650 38.5 16 1509 84 6000-6400 800 48-52
    4TG-E175×5000 38.5 16 1597 91 6400-6600 800 48-52
    4TG-E175×5390 38.5 16 1695 98 6600-7000 800 48-52
    4TG-E175×5780 38.5 16 1792 104 7000-7400 800 48-52
    4TG-E175×6000 38.5 16 1851 109 7400-7800 800 48-52
    4TG-E175×6180 38.5 16 1897 112 7800-8000 800 48-52
    4TG-E185×4650 43 16 1509 96 6200-6600 800 48-52
    4TG-E185×5000 43 16 1597 103 6600-6800 800 48-52
    4TG-E185×5390 43 16 1695 111 6800-7200 800 48-52
    4TG-E185×5780 43 16 1792 119 7200-7600 800 48-52
    4TG-E185×6000 43 16 1851 123 7600-8000 800 48-52
    4TG-E185×6180 43 16 1897 127 8000-8500 800 48-52



    Model Type Dump Truck
    Certificate ISO9001&TS16949:2009
    Body Material Alloy Steel, Stainless Steel
    Stage 1-5 stages or As required
    Pressure 16Mpa-19Mpa
    Total Stroke 300-10093MM
    Surface Treatment Chrome Plating
    Service Range Interchangeable with Hyva,Penta,Edbro
    Vehical Body Length 500-12000
    Package Shrink Film,Pallet,Plywood case and carton
    Warranty One year
    Payment Terms T/T, Western Union, D/P, L/C

    Delivery Time

    15-25 Days
    Color Red, Black, Blue, etc.

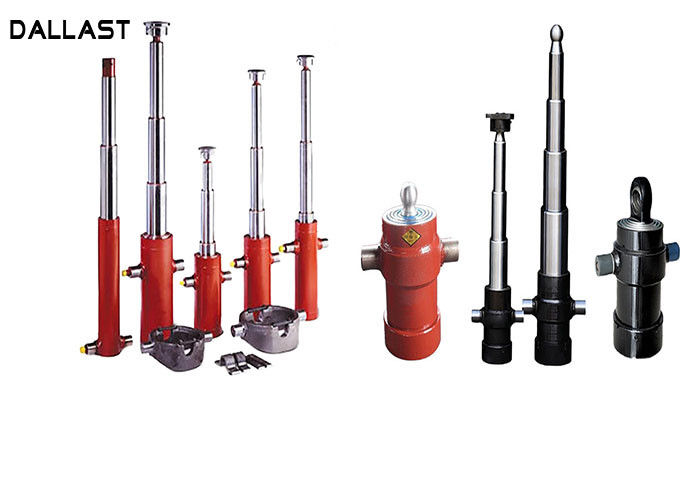

    Product Show:

    Stainless Steel Telescopic Custom Hydraulic Cylinder for Dump Truck
