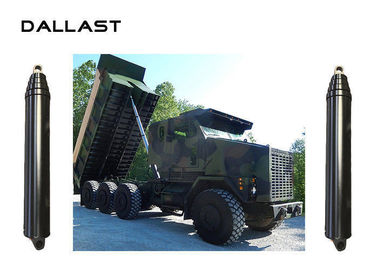

Multi Stage Telescopic Hydraulic Oil Cylinder for Agricultural Truck

Multi Stage Telescopic Hydraulic Oil Cylinder for Agricultural Truck

    • Multi Stage Telescopic Hydraulic Oil Cylinder for Agricultural Truck
    • Multi Stage Telescopic Hydraulic Oil Cylinder for Agricultural Truck
    • Multi Stage Telescopic Hydraulic Oil Cylinder for Agricultural Truck
  • Multi Stage Telescopic Hydraulic Oil Cylinder for Agricultural Truck

    Product Details:

    Place of Origin: Shandong
    Brand Name: Dallast
    Certification: Gs, RoHS, Ce, ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: Negotiation
    Packaging Details: Plywood Box or Pallet
    Delivery Time: 15-25 Days
    Payment Terms: T/T, Western Union, D/P, L/C
    Supply Ability: 50,000 Pieces/Year
    Contact Now
    Detailed Product Description
    Acting Way: Single Acting Origin: Shandong, China
    Working Method: Straight Trip Hardness: HRC 45-55
    Warranty: Twelve Months Standard: Standard, Nonstandard
    Available Temperature: -40℃ To 80℃

    Multi Stage Telescopic Single Acting Hydraulic Oil Cylinder for Agricultural Truck​





    Hydraulic Cylinder :



    Hydraulic cylinder is both for single or double-acting applications with heavy duty welded construction. Cylinder’s standard color is black, orange or as per requirement. In addition, all seals are manufactured to US specification, and being 100% hydro-pressure tested before delivery. Rod surface treatment is for chrome plated or as per requirement. Hydraulic cylinder’s standard is B type piston (optional: A type piston).

    Key Specifications/Special Features:

    Key Specifications/Special Features:

    Hydraulic telescopic cylinder Hyva type FC/FE
    3-5 stages dump trailer used telescopic hydraulic cylinder
    Used for mining dump truck/dump trailer/dumper
    Semi trailer hydraulic cylinder jack system
    Semi dump trailer dump truck used telescopic hydraulic cylinder
    China Sinotuck Howo supplier
    Better quality than Hyva 30-40% cheaper than Hyva

    Characteristics:
    - Larger diameter, more lifting capacity.
    - Max working pressure reaches 250 bar, better anti-pressure ability.
    - Special material with high quality, high-precision, better anti-bending ability.
    - New model guide ring combined with lubricating material, guarantee smooth lifting.
    - Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
    - Maintenance-free supports longer working life.
    - Integrated design, easy to maintain.
    - 100% tested, guarantee high quality.


    According to work pressure, work temperature, work situation and other special requirements, different cylinder tube will be choose
    1. Cylinder tube: cold drawn precision seamless steel tube, hot rolled seamless steel tube, forged tube.
    2. Tube material: 27SiMn.
    3. Surface roughness: R0.16-0.32μm.
    4. Inside chromating: If necessary, inside tube will be chromated.



    Company Profile:



    The company Dallast with over 15 years of experience in hydraulics is a leading manufacturer of hydraulic cylinders and components.
    The wide range of standard products in stock and the competence to support its customers by

    manufacturing custom-made cylinders makes the company a versatile and reliable partner.


    Parameters:


    Dallast Technology Co., Ltd hopes to work together with you, developing in parallel!

    We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.



    Model Lifting. (T) Pressure
    (Mpa)
    Seal height
    (mm)
    Cylinder capacity
    (L)
    Suitable container length (mm) Rear overhang
    (mm)
    3TG-E152×3830 29 16 1618 59 5200-5400 800
    3TG-E152×4000 29 16 1675 62 5400-5600 800
    4TG-E152×4270 29 16 1414 58 5600-5800 800
    4TG-E152×4270 29 16 1509 63 5800-6200 800
    4TG-E152×4270 29 16 1597 67 6200-6400 800



    FAQ:



    Q1: Are you a trading company or manufacturer?

    A1: We are the manufacturer with Exporting License.



    Q2: How long have you been in Hydraulic Cylinder industry?

    A2: Our factory is built in year 2002 .



    Q3: How long is your warranty period?

    A3: We offer 12 months warranty period after on board.



    Q4: How long does it take to process orders?

    A4: It usually takes 15-25 days to process. We don’t have stock.



    Q5: What’s your cylinder PPM?

    A5: 5000 PPM. We do 100% inspection before delivery.



    Q6: Have you been exported to overseas?

    A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.



    Q7:Do your products support trade assurance?

    A7:Yes, our products are all supported.

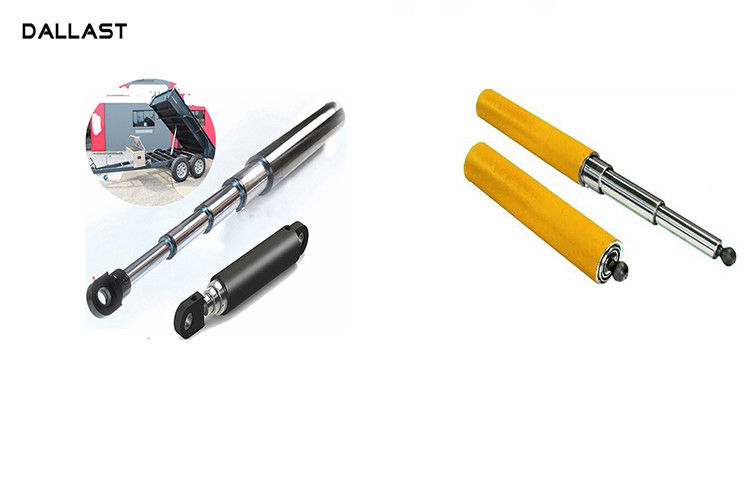

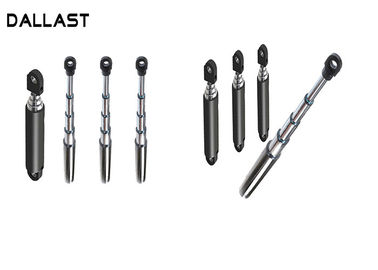

    Product Show:



    Multi Stage Telescopic Hydraulic Oil Cylinder for Agricultural Truck
