| Place of Origin: | Shandong |
| Brand Name: | Dallast |
| Certification: | Gs, RoHS, Ce, ISO9001 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box or Pallet |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T, Western Union, D/P, L/C |
| Supply Ability: | 50,000 Pieces/Year |
| Pressure Environment: | Medium Pressure | Model No.: | Customized |
|---|---|---|---|
| Load Capacity: | 50 Ton | Material: | Stainless Steel |
| Seals: | Parker, Merkel, Hallite | Transport Package: | Plywood Box Or Pallet |
| Origin: | Shandong, China | Delivery Time: | 15-25 Days |
| High Light: | custom hydraulic cylinders,hydraulic ram cylinder |
||

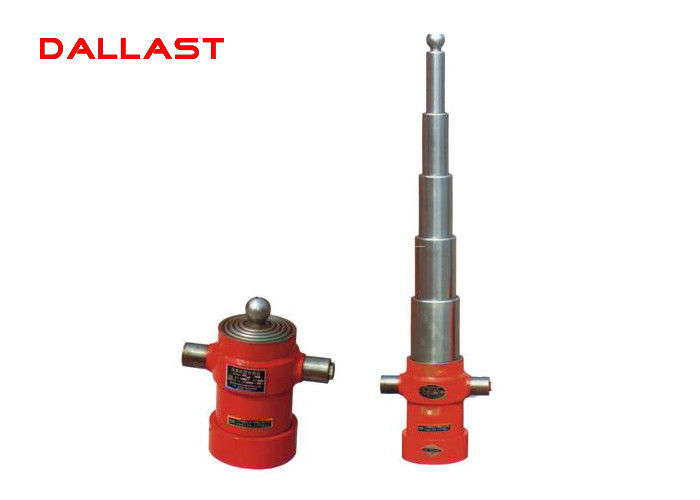

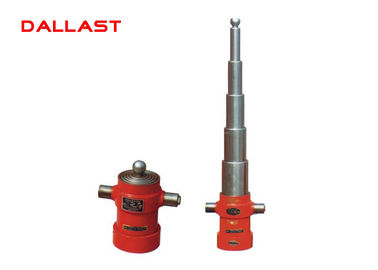

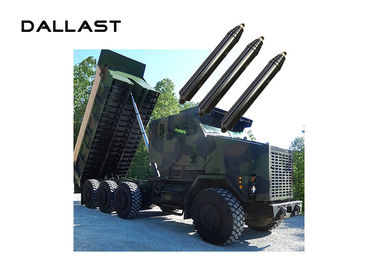

Single Acting Telescopic Hydraulic Cylinder for Dump Truck / Farm Truck
A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.
We have technology terms and can design drawing according to provided information for your review.
We are solding our products to nearly the whole global.
Appreciate for your kind help, we will be able to offer you the correct and exact quotation as soon as we got
your inquiry.Thank you!
We are China welded hydraulic cylinder manufacturer offer best welded hydraulic cylinder OEM, ODM,service.
Attention:
1. We have special departments to ensure that no strict quality control any quality problem before delivery.
2. Carefully check goods size table and product specifications. Please check detail with customer service before buying
3. Receiving or take the goods, please sign the bill after the first inspection, if have damaged items, or a few goods phenomenon, please do not sign, the first contact with the customer details and make logistics company personnel or personnel in proof of delivery after processing, or receipt of any problems after the Seller shall not be held responsible.
The information about our company:
Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.
Dallast Technology Co., Ltd' sprit:
we will give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System."
| Model | Extended Stages |
Working Pressure | Max. stage | Max. stroke | Lifting Capacity |
Suitable Length of Truck Body |
| (MPa) | Diameter(mm) | (mm) | (ton) | (m) | ||
| 129-3E-3880 | 3 | 16-19 | 129 | 3880 | 20-35 | 5.2 |
| 149-3E-3880 | 3 | 16-19 | 149 | 3880 | 25-45 | 5.2 |
| 149-3E-4280 | 3 | 16-19 | 149 | 4280 | 25-45 | 5.6 |
| 149-4E-3880 | 4 | 16-19 | 149 | 3880 | 25-40 | 5.2 |
| 149-4E-4280 | 4 | 16-19 | 149 | 4280 | 25-40 | 5.6 |
| 169-4E-4280 | 4 | 16-19 | 169 | 4280 | 30-50 | 5.2-5.6 |
| 169-4E-4640 | 4 | 16-19 | 169 | 4640 | 32-55 | 5.6-6.1 |
| 169-4E-5000 | 4 | 16-19 | 169 | 5000 | 32-60 | 6.2-6.8 |
| 169-4E-5180 | 4 | 16-19 | 169 | 5180 | 32-60 | 6.2-6.9 |
| 169-4E-5390 | 4 | 16-19 | 169 | 5390 | 32-60 | 6.2-6.9 |
| 169-4E-5460 | 4 | 16-19 | 169 | 5460 | 32-60 | 6.5-7.3 |
| 185-4E-4280 | 4 | 16-19 | 185 | 4280 | 25-45 | 5.6 |
| 185-4E-4640 | 4 | 16-19 | 185 | 4640 | 30-45 | 5.6-6.1 |
| 185-4E-5000 | 4 | 16-19 | 185 | 5000 | 32-50 | 6.2-6.5 |
| 185-4E-5390 | 4 | 16-19 | 185 | 5390 | 40-60 | 6.2-6.8 |
| 185-4E-5460 | 4 | 16-19 | 185 | 5460 | 40-65 | 6.5-7.3 |
| 185-4E-5780 | 4 | 16-19 | 185 | 5780 | 45-70 | 6.9-7.7 |
| 185-4E-6000 | 4 | 16-19 | 185 | 6000 | 50-80 | 7.3-8.2 |
| 191-5E-5780 | 5 | 16-19 | 191 | 5780 | 40-70 | 6.9-7.7 |
| 191-5E-6200 | 5 | 16-19 | 191 | 6200 | 45-80 | 7.3-8.2 |
| 191-5E-7130 | 5 | 16-19 | 191 | 7130 | 50-85 | 7.8-8.5 |
| 191-5E-9030 | 5 | 16-19 | 191 | 9030 | 55-90 | 10.0-11.0 |
| 220-5E-7130 | 5 | 16-19 | 220 | 7130 | 65-100 | 7.8-8.5 |
| 220-5E-9030 | 5 | 16-19 | 220 | 9030 | 65-100 | 10.0-11.0 |
| Customization is also available according to your requirements. | ||||||
FAQ:
1. Are you a manufacturer?
Yes, we have been in this sector for nearly 15 years.
2. Do your products come with a warranty?
Yes, we have one year warranty. In this year, if the quality problem we will free repair for you.
3. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send me your specifications and drawings.
4. Can you help me to install or give me advice about what kind of hydraulic cylinder or power pack should I use for specific machine?
Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.

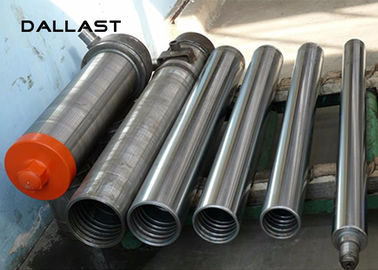

Product Show:
