Place of Origin: | Shandong China |
Brand Name: | Dallast |
Certification: | GS CE ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotation |
Packaging Details: | Carton or According to Customer's Require |
Delivery Time: | 15-25 days |
Payment Terms: | T/T, Western Union, D/A, D/P, L/C |
Supply Ability: | 50000 Pieces/Per year |
Color: | Optional | Type: | Hydraulic Double Cylinder |
---|---|---|---|
Work Temperature: | Normal Temperature | Condition: | New |
Transmission: | Hydraulic Transmission | Specification: | Seal Kits |
High Light: | double acting hydraulic ram,double rod hydraulic cylinder |

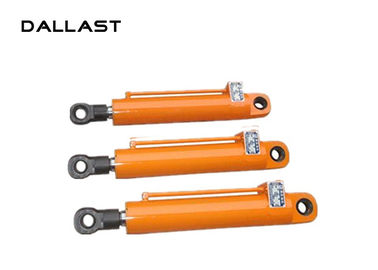

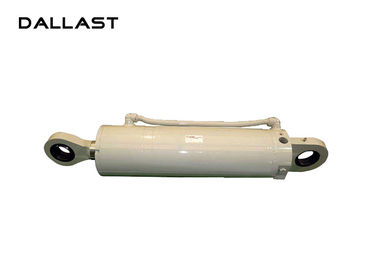

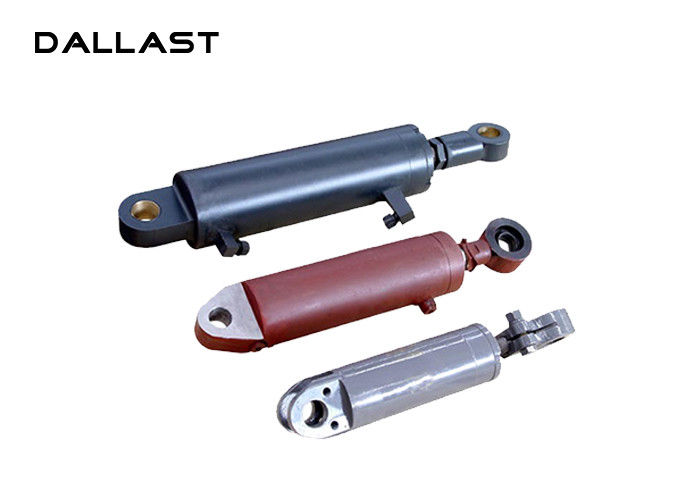

High Tonnage Hydraulic Cylinder Industrial High Pressure Double Acting
A double-acting cylinder is used in applications where:
Even with applications where gravity (or weight) can assist retraction, hydraulic pressure is often applied to double-acting cylinders to control acceleration, change the rate of travel and cushion the stoppage. Travel in one direction always differs from travel in the other, all things being equal; the push action requires more force and is slower, but more work output is generated. The pulling action is faster, but less work output is created.
Double-acting cylinders also act as a reservoir, because fluid flows under pressure to the piston side to extend the hydraulic cylinder. On the return stroke, the fluid flows under pressure to the rod side of the cylinder to retract it. The cylinder is therefore holding most of the fluid, so if you have a limited amount of space in your application, e.g. with DC hydraulic power units, you can effectively use a much smaller reservoir or tank to hold the oil.
Model Number | Cylinder Capacity |
Stroke | Maximum Cylinder Capacity (kN) |
Cylinder Effective Area (cm2) |
Oil Capacity (cm3) |
Coll. Height (A) |
Ext. Height (B) |
Outside Dia. (D) |
Weight | |||
ton | mm | Push | Pull | Push | mm | Push | Pull | mm | mm | mm | kg | |
SOV-CLRG-502 | 50 | 50 | 539 | 269 | 77,0 | 38,5 | 385 | 192 | 162 | 212 | 130 | 17 |
SOV-CLRG-504 | 100 | 539 | 269 | 77,0 | 38,5 | 770 | 385 | 212 | 312 | 130 | 20 | |
SOV-CLRG-506 | 150 | 539 | 269 | 77,0 | 38,5 | 1155 | 577 | 262 | 412 | 130 | 23 | |
SOV-CLRG-508 | 200 | 539 | 269 | 77,0 | 38,5 | 1540 | 770 | 312 | 512 | 130 | 27 | |
SOV-CLRG-5010 | 250 | 539 | 269 | 77,0 | 38,5 | 1924 | 962 | 362 | 612 | 130 | 31 | |
SOV-CLRG-5012 | 300 | 539 | 269 | 77,0 | 38,5 | 2309 | 1155 | 412 | 712 | 130 | 34 |
Quality control
1. All specification is designed by professional engineer
2. All material is high quality-Seal kits are purchased from USA, Japan, UK and Sweden.
3. All material is processed by skilled workers and advanced CNC lathe
4. All cylinders are 100% tested before package to ensure every cylinder is qualified for its purpose
5. Package is air cushion film for each cylinder and steel case for all cylinders to ensure goods can arrive at customer safely
6. One year warranty and life long time follow up service is offered to solve any problems you met when use our products
Package and Delivery
1. Out packing: standard export wooden case
2. Inner packing: with careful stretch film+cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
