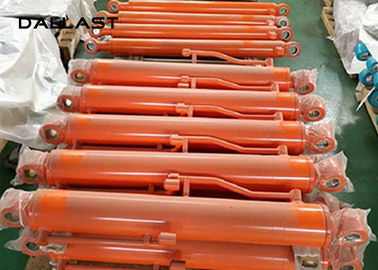

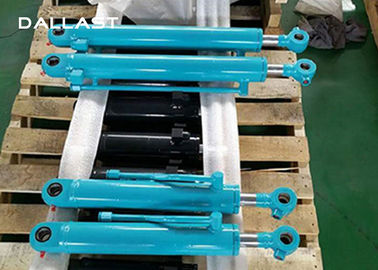

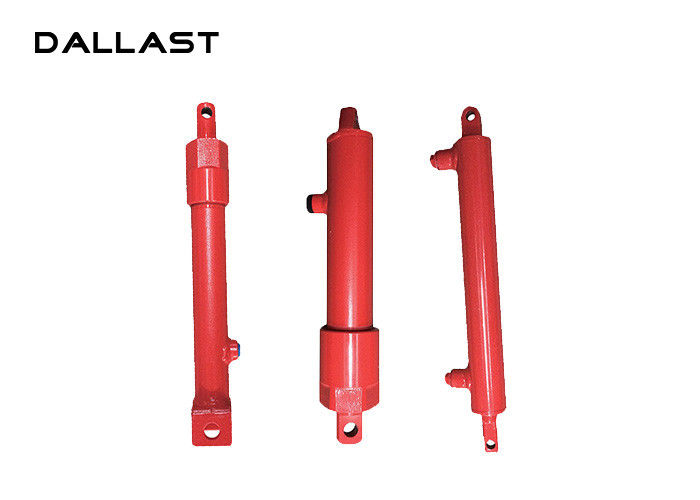

Double Acting Hydraulic Cylinder for Farm Machine And Agriculture Machine

Double Acting Hydraulic Cylinder for Farm Machine And Agriculture Machine

    • Double Acting Hydraulic Cylinder for Farm Machine And Agriculture Machine
    • Double Acting Hydraulic Cylinder for Farm Machine And Agriculture Machine
    • Double Acting Hydraulic Cylinder for Farm Machine And Agriculture Machine
  • Double Acting Hydraulic Cylinder for Farm Machine And Agriculture Machine

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Piston: High Grade And Precisely Machined Ductile Iron Rod Seal: Polyurethane U-Cup
    Seals: Hallite, NOK Maximum Stroke: Requirements
    Painting: Anti Rust Painting Service: After-sale Service
    High Light:

    double acting hydraulic ram

    ,

    double ended hydraulic ram

    Farm Machine And Agriculture Machine Double Acting Hydraulic Cylinder
    A. Hydraulic cylinders introductions
    1. Seals:Parker/Nok/Hallite/Taiwan ;
    2. Rod :Chrome plated and quenched.Has good mechanical properties, long service life;
    3. Cylinder:Honing machining /boring /rolling;
    4. Ballblast for paint ;
    5. Short Delivery Time ;
    6. Warranty:One year;

    B. Mounting way:
    1. Front and end of earring;
    2. Head fixed with flange;
    3. End fixed with flange;
    4. Vertical to axis foot type;
    5. Middle fixed with pendulum shift;
    6. End with single earring;
    7. According to your demand.



    C. Price and technical solutions :
    In order for you to get a better price and technical solutions.Please provide the following required parameters:
    1. Bore diameter;
    2. Rod diameter;
    3. Stroke;
    4. Working pressure;
    5. Front and back end mount type;
    6. Using frequency;
    7. Work Environment;





    Material 45# high grade carbon steel or 40CR
    Tempering hardness HB240-260
    The depth of the high frequency 2mm-3mm
    High frequency hardness HRC55°±2°
    Chrome plating thickness 0.03mm-0.06mm
    Chromium layer hardness HV800-1000vpn
    Straightness ≤0.08mm/m
    Surface roughness Ra0.03um- Ra0.06um
    Outside diameter tolerance f7



    Product Application

    The product can be used on:

    Agricultural handling equipment, such as agricultural tractors, agricultural carriage car, agricultural fork lift truck.

    Construction engineering machinery: bulldozer,grader),scraper),loader),single bucket loader,drilling machine,soil and rock mechanical and so on



    DALLAST Cylinder is proud of its heritage, with millions of products installed around the world and product lines which are more than twenty-five years old.



    Farm Tractor Hydraulic Cylinder
    Model Bore Dia
    (mm)

    Rod Dia
    (mm)
    Stroke
    (mm)

    Mounting distance
    (mm)
    FT800.55A.012 80 32 200 535
    TB600.55B.2a 75 32 110 423
    TB600.55C.2a 75 32 110 423
    FT700.55D.011 100 40 200 516
    FT1004.55.8 90 35 200 535
    TG1204.551.1 100 40 185 535
    TG1854.551.2 110 70 182 535
    TG1854.551.3 110 70 182 535



    FAQ:

    1.  What is your minimum order?
    It depends on what you are buying. Normally, our minimum order is USD5000.
    2. What is your delivery time?
    FOB Qingdao or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 15-20 days.

    3. Do you support OEM service?

    Yes. OEM service is available.

    We are pleased to process according to the customer's drawings.

    4. Is your design reasonable?

    We have professional R&D team with rich design experience.

    We also establish strict but scientific product testing system so that products have perfect performance.

    6. How does a displacement cylinder work?

    In a displacement (single acting) cylinder the rod is extended by flowing pressurized oil behind the rod,

    which forces the rod out of the barrel like a piston. Once the pressure is released, the load on the

    cylinder retracts the rod. The diameter of the rod is the effective piston area.
