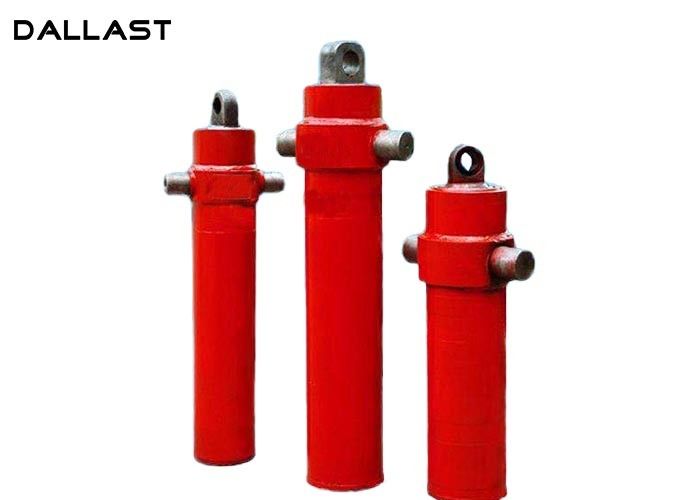

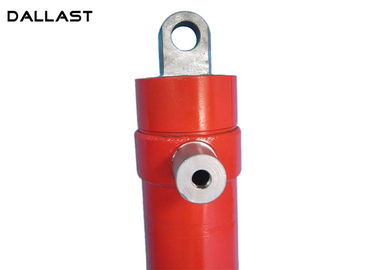

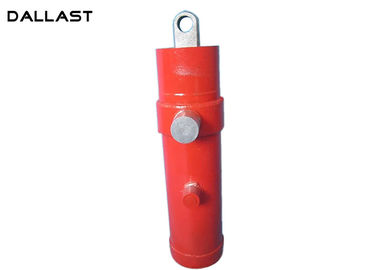

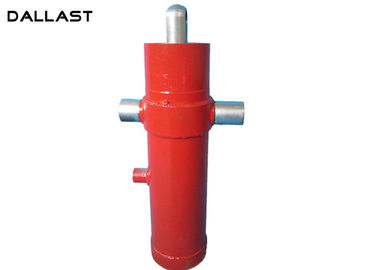

Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder

Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder

    • Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder
    • Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder
    • Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder
    • Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder
  • Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Standard: Customized Mounting Type: Middle Trunnion
    Type: Sleeve Cylinder Working Pressure: 16-21MPa
    Warranty: One Year After Shipping Arrival Delivery Time: 20- 25 Days After Payment

    Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder



    HS Code 8412210000
    Application Agricultural vehicles/tricycle/dump truck/Sanitation car
    Seal Hallite,SKF,NOK,Guarnitec,Parker
    Coating chrome plated
    Temperature -30ºC~80ºC
    Color red black blue gray,can custom according request
    Mounting Type Middle-trunnion
    Plunger 20#, 45# steel with high frequency quenching



        DALLAST specializing in the product hydraulic cylinder of various vehicles and equipment, and all kinds of piston hydraulic cylinder. TG Vehicle sleeve cylinder main 110 series

        Trunnion diameter of 50,the installation from the center of trunnion to pin hole center is150mm, the inlet port in the trunnion, the thread size M20 * 1.5. Latching hole 30mm.

        TG series of single-acting multi-stage telescopic sleeve hydraulic cylinder, with small size, large stroke, etc., can be used for heavy vehicles, agricultural vehicles and other vehicles tilting the bucket lift cylinder.

    We have many Types for you choice,also can custom design according your requestion.



    TG series Hydraulic Cylinder
    Model Stage Pressure(MPa) Bore Diameter(mm) Stroke(mm)
    110mmx510mm 2 16 110/90 510
    110mmx500mm 2 16 110/90 500
    110mmx475mm 2 16 110/90 475
    110mmx450mm 2 16 110/90 450
    110mmx420mm 3 16 110/90/70 420
    110mmx340mm 3 16 110/90/70 340
    110mmx300mm 3 16 110/90/70 300
    90mmx450mm 2 16 90/70 450
    110mmx375mm 2 16 110/90 375



    Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder

    Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder

    Telescopic 2 / 3 Stage Dump Truck Tipper Lift Single Acting Hydraulic Cylinder
