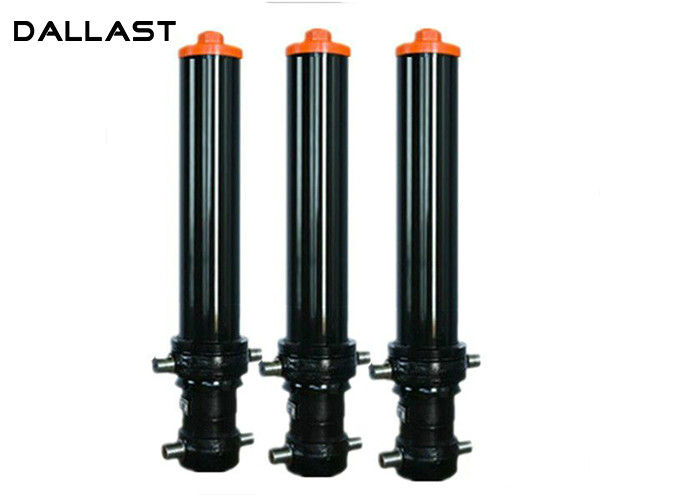

Name: Maximum 6 Stages Single Acting Hydraulic RAM Cylinders for Heavy Duty Machinery
Brand: DALLAST
SKU: Customized
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (112 reviews)

Home Products Dump Truck Hydraulic Cylinder

Maximum 6 Stages Single Acting Hydraulic RAM Cylinders for Heavy Duty Machinery

Product Details:

Place of Origin:	shangdong
Brand Name:	DALLAST
Certification:	ISO9001-2009 ,TS16949
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	shrink film, pallet, plywood case and carton
Delivery Time:	20- 25 days after down payment
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	50000PCS per year

Contact Now

Detailed Product Description

Material:	Alloy Steel,Carbon Steel,27SiMn	Temperature:	-30ºC~100ºC
Piston Rod:	Chromed C45# Steel	Stroke:	3000mm-12000mm
Seal:	Hallite,SKF,NOK,Guarnitec,Parker	Standard:	Nonstandard
High Light:	dump truck telescopic cylinder , dump trailer hydraulic cylinder

Maximum 6 Stages Single Acting Hydraulic RAM Cylinders for Heavy Duty Machinery

We are professional manufacturing expert of Hydraulic Cylinders (with ISO9001&TS16949) ,
They are used for dump truck,trailer,agriculture machine,construction, mining, forestry, loader, waste management Etc,The annual production capacity of cold drawn pipe is more than 2000 tons.
Over the years we have grown into a diversified market based that now services customers all over the world.

Main product : hydraulic cylinders for vehicles, hydraulic cylinders for oil drilling rigs, hydraulic cylinders for dredgers, military special hydraulic cylinders, hydraulic cylinders for construction machinery, marine hydraulic cylinders, hydraulic cylinders for gates

Products Discription:

How do we ensure product quality?

piston rod:

1: hard chrome plating
2: thickness of 0.03-0.05mm;
3: in-house salt spray test

cylinder tube:

1: standard material-#45, SAE1045, CK45
2. surface roughness: Ra0.4-0.08micron

Seals:NOK, Hallite, Parker etc.

Welding:mannual & machine welding

Professional manufacturer& supplier of Hydraulic Cylinders

Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification

Experience in export North America, Australia, Asia, Middle East, Africa

Hydraulic Cylinders can be Make according to client's requirements

One year warranty and long time track service is offered to solve any problems you meet after sale.

FC Type Hydraulic Cylinder
MODEL NO.	Largest Stage Diameter	Stroke	The largest sleeve OD	Mounting distance
MODEL NO.	(mm)	(mm)	(mm)	(mm)
FC-3-110-3205	110	3205	168	343
FC-3-110-3460	110	3460	168	343
FC-3-129-2980	129	2980	218	343
FC-3-129-3205	129	3205	218	343
FC-3-129-3460	129	3460	218	343
FC-3-129-3880	129	3880	218	343
FC-3-129-4270	129	4270	218	343
FC-4-129-4280	129	4280	218	343
FC-4-129-4280	129	4280	218	343
FC-4-129-5180	129	5180	218	343
FC-4-149-3680	149	3680	218	343
FC-4-149-3980	149	3980	218	343
FC-4-149-4280	149	4280	244	343
FC-4-149-4620	149	4620	244	343
FC-4-149-4940	149	4940	244	343
FC-4-149-5180	149	5180	244	343
FC-4-149-5460	149	5460	244	343
FC-4-169-4280	169	4280	244	343
FC-4-169-4620	169	4620	244	343
FC-4-169-4940	169	4940	244	343
FC-4-169-5180	169	5180	244	343
FC-4-169-5460	169	5460	244	343
FC-5-169-5355	169	5355	244	343
FC-5-169-5780	169	5780	244	343
FC-5-169-6180	169	6180	244	343
FC-5-169-6830	169	6830	244	343
FC-5-169-7130	169	7130	244	343
FC-5-169-7630	169	7630	244	343
FC-5-169-8130	169	8130	244	343
FC-5-169-9030	169	9030	244	343
FC-5-169-9530	169	9530	244	343
FC-4-191-5460	191	5460	274	343
FC-5-191-5780	191	5780	274	343
FC-5-191-6180	191	6180	274	343
FC-5-191-7130	191	7130	274	343
FC-5-191-7630	191	7630	274	343
FC-5-191-8130	191	8130	274	343
FC-5-191-9030	191	9030	274	343
FC-5-191-9530	191	9530	274	343
FC-5-214-7610	214	7610	274	343
FC-5-214-9030	214	9030	274	343

MODEL NO.	Stroke	First Stage Diameter	Stroke	Largest Sleeve OD	Closed length	Mounting distance
MODEL NO.	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
FC-3-107-2855	2855	107	2855	152	1268	311
FC-3-107-3115	3115	107	3115	152	1368	311
FC-3-107-3265	3265	107	3265	152	1418	311
FC-3-107-3415	3415	107	3415	152	1468	311
FC-3-107-3715	3715	107	3715	152	1568	311
FC-3-126-3230	3230	126	3230	219	1403	343
FC-3-126-3680	3680	126	3680	219	1553	343
FC-3-126-3830	3830	126	3830	219	1603	343
FC-3-126-4400	4400	126	4400	219	1803	343
FC-4-126-4145	4145	126	4145	219	1357	343
FC-4-126-4345	4345	126	4345	219	1407	343
FC-4-126-4545	4545	126	4545	219	1457	343
FC-4-126-4745	4745	126	4745	219	1507	343
FC-4-126-4945	4945	126	4945	219	1557	343
FC-4-126-5145	5145	126	5145	219	1607	343
FC-3-145-3230	3230	145	3230	219	1403	343
FC-3-145-3680	3680	145	3680	219	1553	343
FC-3-145-3830	3830	145	3830	219	1603	343
FC-4-145-4110	4110	145	4110	219	1357	343
FC-4-145-4310	4310	145	4310	219	1407	343
FC-4-145-4510	4510	145	4510	219	1457	343
FC-4-145-4710	4710	145	4710	219	1507	343
FC-4-145-4910	4910	145	4910	219	1557	343
FC-4-145-5110	5110	145	5110	219	1607	343
FC-4-145-5310	5310	145	5310	219	1657	343
FC-4-145-5865	5865	145	5865	219	1807	343
FC-5-145-4310	4310	145	4310	219	1161	343
FC-4-165-4110	4110	165	4110	244	1347	343
FC-4-165-4510	4510	165	4510	244	1447	343
FC-4-165-4710	4710	165	4710	244	1497	343
FC-4-165-4910	4910	165	4910	244	1547	343
FC-4-165-5110	5110	165	5110	244	1597	343
FC-4-165-5310	5310	165	5310	244	1647	343
FC-4-165-5865	5865	165	5865	244	1797	343
FC-5-165-5135	5135	165	5135	244	1351	343
FC-5-165-5385	5385	165	5385	244	1401	343
FC-5-165-5635	5635	165	5635	244	1451	343
FC-5-165-6135	6135	165	6135	244	1551	343
FC-5-165-6385	6385	165	6385	244	1601	343
FC-5-165-6825	6825	165	6825	244	1701	343
FC-5-165-7075	7075	165	7075	244	1751	343
FC-5-165-7325	7325	165	7325	244	1801	343
FC-5-165-7575	7575	165	7575	244	1851	343
FC-5-165-7825	7825	165	7825	244	1901	343
FC-5-165-8185	8185	165	8185	244	2001	343
FC-5-165-8435	8435	165	8435	244	2051	343
FC-5-187-5135	5135	187	5135	244	1351	343
FC-5-187-5385	5385	187	5385	244	1401	343
FC-5-187-5635	5635	187	5635	244	1451	343
FC-5-187-6135	6135	187	6135	244	1551	343
FC-5-187-6385	6385	187	6385	244	1601	343
FC-5-187-6825	6825	187	6825	244	1701	343
FC-5-187-7075	7075	187	7075	244	1751	343
FC-5-187-7325	7325	187	7325	244	1801	343
FC-5-187-7825	7825	187	7825	244	1901	343
FC-5-187-8185	8185	187	8185	244	2001	343
FC-5-187-8435	8435	187	8435	244	2051	343
FC-5-187-8935	8935	187	8935	244	2151	343
FC-5-187-9185	9185	187	9185	244	2201	343
FC-6-187-8790	8790	187	8790	244	1805	843
FC-6-187-9085	9085	187	9085	244	1855	343
FC-7-187-8535	8535	187	8535	244	1559	343
FC-5-210-6135	6135	210	6135	273	1551	343
FC-5-210-6825	6825	210	6825	273	1701	343
FC-5-210-7075	7075	210	7075	273	1751	343
FC-5-210-7325	7325	210	7325	273	1801	343
FC-5-210-7825	7825	210	7825	273	1901	343
FC-5-210-9185	9185	210	9185	273	2201	343

Maximum 6 Stages Single Acting Hydraulic RAM Cylinders for Heavy Duty Machinery
