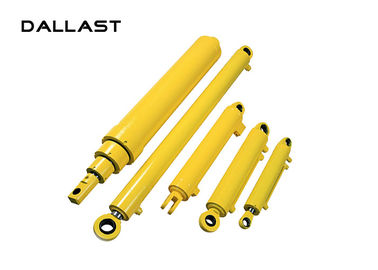

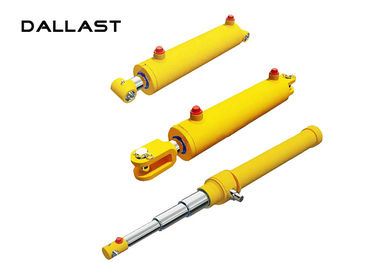

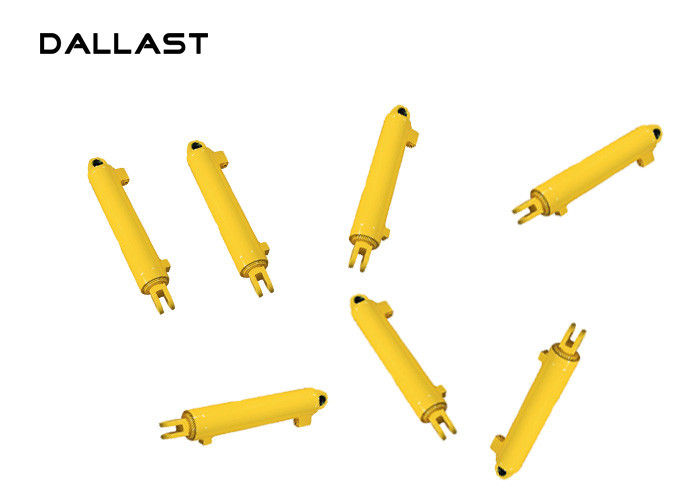

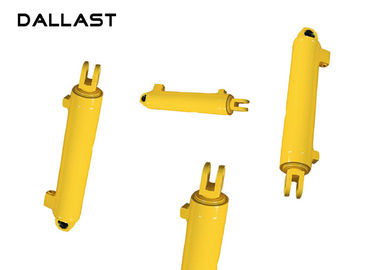

3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms

3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms

    • 3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms
    • 3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms
    • 3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms
    • 3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms
  • 3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Size: According To Your Needs Material: 27 Simn, 45# Seamless Steel
    Double-Acting Cylinder Type: Common Cylinder Supply Ability: 2000 Pcs/month
    OEM: Accepted Place Of Origin: Shandong
    High Light:

    hydraulic oil cylinder

    ,

    hydraulic ram cylinder



    3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms





    We supply a wide rang of hydraulic cylinders.Working pressure between 5Mpa and 36Mpa.include HOB series hydraulic cylinder,MOB series hydraulic cylinder,HSG series hydraulic cylinder.All kinds of standard or nonstandard hydraulic cylinders with good quality and pretty competitive price. Also we have our own professional designers to meet any of your requriements. Pls see the table as below:

    Output table of hydraulic cylinder
    Bore(mm) Rod(mm) Working pressure
    2Mpa 5Mpa 7Mpa 10Mpa
    Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG) Pull(KG) Push(KG)
    40 20 188 252 470 630 658 882 940 1260
    50 25 294 392 435 980 1029 1372 1470 1960
    63 30 482 624 1205 1560 1687 2184 2410 3120
    80 40 754 1006 1885 2515 2633 3521 3770 5030
    100 50 1178 1570 2946 3927 4124 5498 5891 7854
    125 60 1889 2454 4722 6136 6611 8590 9444 12272
    150 70 2754 3534 6911 8835 9675 12369 13822 17670
    180 80 4084 5089 10210 12724 14295 17813 20421 25447
    200 100 4712 6283 11781 15708 16493 21991 23562 31416
    250 140 6739 9018 16847 22544 23586 31562 33694 49088
    300 180 9048 14137 22620 35343 31667 49480 45239 70686





    Technical Parameter:

    1. This is single acting pushing cylinder.

    2. Cylinder structure is simple with high reliability.

    3. The air venting device adopts special vent screw for car brake device to prevent air pollution during cylinder's air venting.

    We also can customize according to your requirement and drawings. or provide the following required parameters:

    1. bore diameter

    2. rod diameter

    3. stroke

    4. working pressure

    5. front and back end mount type

    6. using frequency

    7. Work Environment



    QC:

    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

    1. All piston rod have to go through comprehensive processing: Heat treating Lathing Grinding Polishing Hard chrome plating Polishing, this comprehensive processing make the cylinder harder, wearable and acid.
    2. Using imported materials for seal kits.
    3. The structure kits are made by high-strength Manganese plate

    4. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test

    5. Type Inspection



     3 Stage / 4 Stage Agricultural Hydraulic Cylinders Pruning Platforms
