|Place of Origin:||Shandong China|
|Certification:||GS CE ISO9001|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||Carton or According to Customer's Require|
|Delivery Time:||15-25 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C|
|Supply Ability:||50000 Pieces/Per year|
|Model Number:||Customized||Structure:||General Cylinder|
|Seals:||Hallite, NOK||Body Material:||According To User Requirements|

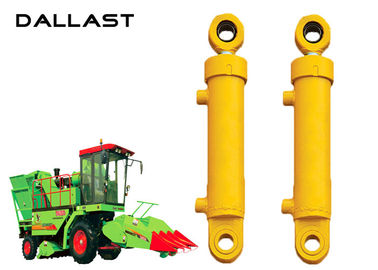

Harvester Ys Series Agricultural Hydraulic Cylinders Power Unit Corn Combine
About Agricultural hydraulic cylinder
we can also produce according to your drawing
As our main series products, our telescopic hydraulic cylinder is widely used
all over the world, so this extend the life of cylinders. Besides, the sleeve of
cylinder is very smooth, the surface finish can be 0.02μm. From this point,
the using frequency becomes long and long;
High Speed: Working speed is high, cycle time is short, working capacity is more.
High Efficiency: Light weight, more loading capacity.
High Strength: New design, new material.
New design products, bigger diameter, more lifting capacity.
Max working pressure reaches 190 bar,better anti-pressure ability.
Special-purpose material, high quality, high-precision, better anti-bending ability.
New model guide ring combined with Senior lubricating material,guarantee
cylinder lift more smoothly and work long time.
|Type||Used for||Total size||Bore dia||Stroke||Bore/dia|
|DG-E63/35*195-405||Header hydraulic cylinder||458*ɸ76||63||195||63/35|
|DG-E63/35*165-370||steering hydraulic cylinder||415*ɸ76||63||165||63/35|
|YS-E40/22*65-418||Governor hydraulic cylinder||448*ɸ50||40||65||40/22|
1. Imported high-quality steel pipe, the superior material, high strength, ensures the reliability of the product.
2. The inner wall of cylinder tube is thin, light weight.
3. New type sealing way of high pressure combined with low pressure ensures the sealing reliability under different pressure conditions, which can adapt to the requirements of different regions.
4. Long guide improves the cylinder’s bending resistance , and enhance the adaptability of carriage side slip.
5. The key components are made of press forging parts and overall performance is better , which improves the reliability of the hydraulic cylinder.
6. Cylinder surface adopts chrome plating processing, improving the hardness, enhancing the corrosion resistance and wear resistance.
