Custom Single Acting Hydraulic Cylinder Stage Telescopic Lifting Dumper Tipper

Product Details:

Place of Origin:	shangdong
Brand Name:	DALLAST
Certification:	ISO9001-2009 ,TS16949
Model Number:	Customized

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	shrink film, pallet, plywood case and carton
Delivery Time:	20- 25 days after down payment
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	50000PCS per year

Contact Now

Detailed Product Description

Standard:	Nonstandard	Size:	Custom Design
Seal:	Hallite,SKF,NOK,Guarnitec,Parker	Coating:	Chrome Plated
Application:	Dump Truck, Tipper, Trailer	Temperature:	-30ºC~100ºC
Highlight:	single acting hydraulic ram , hydraulic oil cylinder

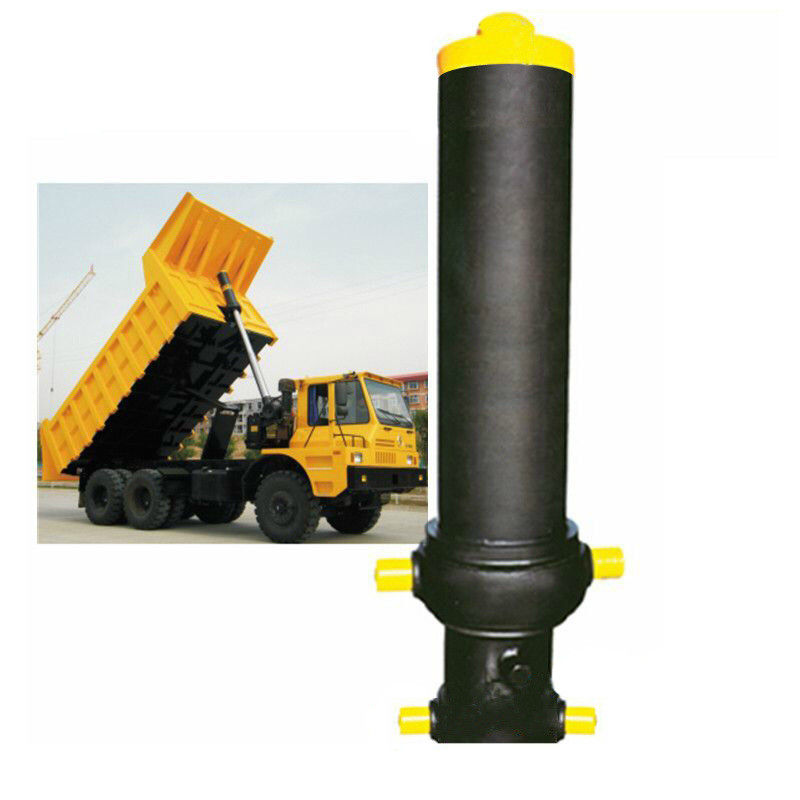

Custom Single Acting Hydraulic Cylinder Stage Telescopic Lifting Dumper Tipper

The front lifting hydraulic cylinder at all levels of the sleeve are unique structural design, lifting the boss limit, heat treatment process and advanced process, with advanced sealing structure and sealing kits to ensure that the high pressure under bad conditions will not cylinder Leakage, coupled with the innovative design of the limit ring, combined with a new type of advanced sliding guide ring, to maximize the safety and stability of the dump truck so that the cylinder lift more smooth, longer service life, more users to use rest assured.

HS Code	8412210000
Material of cylinder tube	Alloy Steel,Carbon steel,27SiMn
Color	red black blue gray,can custom according request
Mounting Type	Earring-trunnion, double trunnion, double earring (eye end)
Plunger	20#, 45# steel ,27Simn
Warranty	One year after shipping arrival
Delivery time	15- 25 days after down payment

Custom Single Acting Hydraulic Cylinder Stage Telescopic Lifting Dumper Tipper

Model	Lifting	Pressure	Bore Dia	A	B	C	D	E	F	L	G	H
Model	(ton)	(Mpa)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
FC-4TG-E158x4280	31.4	16	158/136/115/95	245	385	360	490	335	272	1450	195±10	420±10
FC-5TG-E158x4280	31.4	16	158/136/115/95/75	245	385	360	490	335	272	1195	195±10	420±10
FC-4TG-E166x4280	34.6	16	166/141/115/95/75	245	385	360	490	335	272	1450	195±10	420±10
FC-4TG-E166x5390	34.6	16	166/141/115/95/75	245	385	360	490	335	272	1725	195±10	420±10
FC-4TG-F181x4280	51.4	20	181/158/136/115	245	385	360	490	335	272	1460	195±10	420±10
FC-4TG-F181x4650	51.4	20	181/158/136/115	245	385	360	490	335	272	1555	195±10	420±10
FC-4TG-F181x5000	51.4	20	181/158/136/115	245	385	360	490	335	272	1645	195±10	420±10
FC-4TG-F181x5390	51.4	20	181/158/136/115	245	385	360	490	335	272	1740	195±10	420±10
FC-4TG-F181x5790	51.4	20	181/158/136/115	245	385	360	490	335	272	1820	195±10	420±10
FC-5TG-F181x4280	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1195	195±10	420±10
FC-5TG-F181x5000	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1355	195±10	420±10
FC-5TG-F181x5390	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1455	195±10	420±10
FC-5TG-F181x5700	51.4	20	181/158/136/115/95	245	385	360	490	335	272	1500	195±10	420±10
FC-4TG-F191x4650	57.3	20	191/166/141/115	245	385	360	490	335	272	1560	195±10	420±10
FC-4TG-F191x5000	57.3	20	191/166/141/115	245	385	360	490	335	272	1645	195±10	420±10
FC-4TG-F191x5390	57.3	20	191/166/141/115	245	385	360	490	335	272	1740	195±10	420±10
FC-4TG-F191x6000	57.3	20	191/166/141/115	260	405	340	470	325	244	1890	215±10	420±10
FC-4TG-F191x4650	57.3	20	191/166/141/115	265	405	360	490	345	260	1555	215±10	420±10
FC-4TG-F206x6000	66.6	20	206/181/158/136	280	420	360	490	345	272	1900	230±10	420±10
FC-5TG-F206x6180	66.6	20	206/181/158/136/115	270	410	360	490	325	272	1630	220±10	420±10

FE Type hydraulic cylinder
Model	Largest Stage Diameter	Stroke	Mounting distance
Model	(mm)	(mm)	(mm)
FE-3-110-3205	110	3205	1449
FE-3-110-3460	110	3460	1609
FE-3-129-3460	129	3460	1449
FE-3-129-3880	129	3880	1609
FE-3-149-2900	149	2900	1320
FE-3-149-3200	149	3200	1420
FE-3-149-3500	149	3500	1520
FE-3-149-3880	149	3880	1644
FE-4-149-4280	149	4280	1450
FE-4-149-4940	149	4940	1529
FE-4-149-4620	149	4620	1484
FE-4-169-4280	169	4280	1394
FE-4-169-4450	169	4450	1437
FE-4-169-4620	169	4620	1479
FE-4-169-4940	169	4940	1529
FE-4-169-5000	169	5000	1574
FE-4-169-5180	169	5180	1604
FE-5-169-5355	169	5355	1394
FE-5-169-5780	169	5780	1559
FE-5-169-6180	169	6180	1527
FE-5-169-6480	169	6480	1604
FE-5-169-6830	169	6830	1674
FE-5-169-7130	169	7130	1769
FE-5-191-6180	191	6180	1527
FE-5-191-9030	191	9030	2177
FE-6-191-7420	191	7420	1677
FE-5-214-6830	214	6830	1662
FE-5-214-7130	214	7130	1722

Custom Single Acting Hydraulic Cylinder Stage Telescopic Lifting Dumper Tipper
