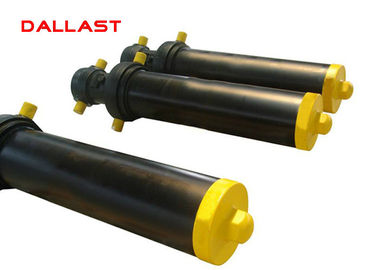

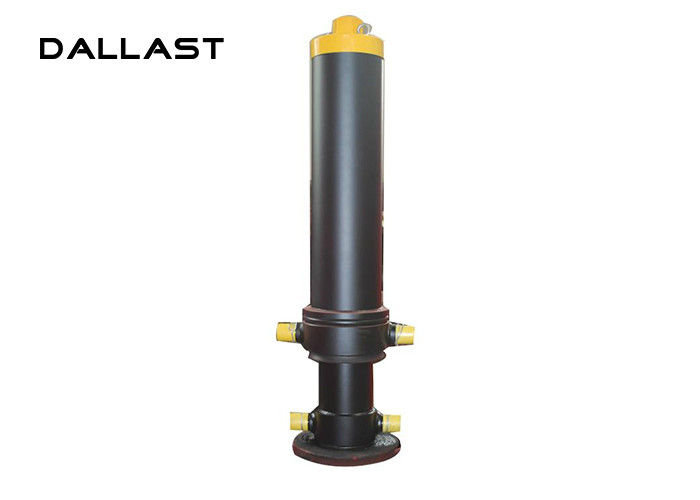

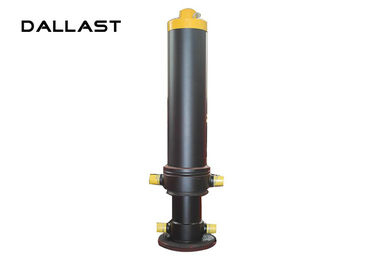

Telescopic Lift Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry

Telescopic Lift Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry

    • Telescopic Lift  Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry
    • Telescopic Lift  Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry
  • Telescopic Lift  Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Standard: Nonstandard Size: Custom Made
    Installation Form: FC Working Pressure: 16MPa
    Seal: Hallite,SKF,NOK,Guarnitec,Parker Coating: Chrome Plated
    High Light:

    single acting hydraulic ram

    ,

    single acting telescopic hydraulic cylinders



    Telescopic Lift Dump Truck Hydraulic Cylinder Hoist Tipper 16MPa Pressure





         We are giving the best quality Hydraulic Cylinder to our various clients across the world. To manufacture the hydraulic cylinder we are maintaining high level infrastructure without any compromise. We have different kinds of Hydraulic Cylinders like Hydraulic Cylinder for Automotive, Hydraulic Cylinder for Heavy Machinery, Hydraulic Cylinder for Earthmoving Equipments, Telescopic Hydraulic Cylinder, Hydraulic Cylinder for Cement Plants and many more items with effective time delivery to our customers.



    Manufacturing capability

    • Complete CNC Machining capabilities
    • Bore size from 40mm to 800mm,
    • Stroke lengths to 12000mm or longer
    • Working pressures to 42Mpa
    • Customized your needed hydraulic cylinder
    HS Code 8412210000
    Application Dump truck, Tipper, Trailer
    Material of cylinder tube Alloy Steel,Carbon steel,27SiMn
    Temperature -30ºC~100ºC
    Color red black blue gray,can custom according request
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel ,27Simn
    Package shrink film, pallet, plywood case and carton
    Warranty One year after shipping arrival
    Payment terms T/T, L/C, West Union,Paypal
    Delivery time 15- 25 days after down payment



    MODEL NO. Stage First Stage Diameter Stroke Largest Sleeve OD Closed length Mounting distance
    [mm] [mm] [mm] [mm] [mm]
    FC-3-107-2855 3 107 2855 152 1268 311
    FC-3-107-3115 3 107 3115 152 1368 311
    FC-3-107-3265 3 107 3265 152 1418 311
    FC-3-107-3415 3 107 3415 152 1468 311
    FC-3-107-3715 3 107 3715 152 1568 311
    FC-3-126-3230 3 126 3230 219 1403 343
    FC-3-126-3680 3 126 3680 219 1553 343
    FC-3-126-3830 3 126 3830 219 1603 343
    FC-3-126-4400 3 126 4400 219 1803 343
    FC-4-126-4145 4 126 4145 219 1357 343
    FC-4-126-4345 4 126 4345 219 1407 343
    FC-4-126-4545 4 126 4545 219 1457 343
    FC-4-126-4745 4 126 4745 219 1507 343
    FC-4-126-4945 4 126 4945 219 1557 343
    FC-4-126-5145 4 126 5145 219 1607 343
    FC-3-145-3230 3 145 3230 219 1403 343
    FC-3-145-3680 3 145 3680 219 1553 343
    FC-3-145-3830 3 145 3830 219 1603 343
    FC-4-145-4110 4 145 4110 219 1357 343
    FC-4-145-4310 4 145 4310 219 1407 343
    FC-4-145-4510 4 145 4510 219 1457 343
    FC-4-145-4710 4 145 4710 219 1507 343
    FC-4-145-4910 4 145 4910 219 1557 343
    FC-4-145-5110 4 145 5110 219 1607 343
    FC-4-145-5310 4 145 5310 219 1657 343
    FC-4-145-5865 4 145 5865 219 1807 343
    FC-5-145-4310 5 145 4310 219 1161 343
    FC-4-165-4110 4 165 4110 244 1347 343
    FC-4-165-4510 4 165 4510 244 1447 343
    FC-4-165-4710 4 165 4710 244 1497 343
    FC-4-165-4910 4 165 4910 244 1547 343
    FC-4-165-5110 4 165 5110 244 1597 343
    FC-4-165-5310 4 165 5310 244 1647 343
    FC-4-165-5865 4 165 5865 244 1797 343
    FC-5-165-5135 5 165 5135 244 1351 343
    FC-5-165-5385 5 165 5385 244 1401 343
    FC-5-165-5635 5 165 5635 244 1451 343
    FC-5-165-6135 5 165 6135 244 1551 343
    FC-5-165-6385 5 165 6385 244 1601 343
    FC-5-165-6825 5 165 6825 244 1701 343
    FC-5-165-7075 5 165 7075 244 1751 343
    FC-5-165-7325 5 165 7325 244 1801 343
    FC-5-165-7575 5 165 7575 244 1851 343
    FC-5-165-7825 5 165 7825 244 1901 343
    FC-5-165-8185 5 165 8185 244 2001 343
    FC-5-165-8435 5 165 8435 244 2051 343
    FC-5-187-5135 5 187 5135 244 1351 343
    FC-5-187-5385 5 187 5385 244 1401 343
    FC-5-187-5635 5 187 5635 244 1451 343
    FC-5-187-6135 5 187 6135 244 1551 343
    FC-5-187-6385 5 187 6385 244 1601 343
    FC-5-187-6825 5 187 6825 244 1701 343
    FC-5-187-7075 5 187 7075 244 1751 343
    FC-5-187-7325 5 187 7325 244 1801 343
    FC-5-187-7825 5 187 7825 244 1901 343
    FC-5-187-8185 5 187 8185 244 2001 343
    FC-5-187-8435 5 187 8435 244 2051 343
    FC-5-187-8935 5 187 8935 244 2151 343
    FC-5-187-9185 5 187 9185 244 2201 343
    FC-6-187-8790 6 187 8790 244 1805 843
    FC-6-187-9085 6 187 9085 244 1855 343
    FC-7-187-8535 7 187 8535 244 1559 343
    FC-5-210-6135 5 210 6135 273 1551 343
    FC-5-210-6825 5 210 6825 273 1701 343
    FC-5-210-7075 5 210 7075 273 1751 343
    FC-5-210-7325 5 210 7325 273 1801 343
    FC-5-210-7825 5 210 7825 273 1901 343
    FC-5-210-9185 5 210 9185 273 2201 343
    FC Type Hydraulic Cylinder
    MODEL NO. Stage Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
    (mm) (mm) (mm) (mm)
    FC-3-110-3205 3 110 3205 168 343
    FC-3-110-3460 3 110 3460 168 343
    FC-3-129-2980 3 129 2980 218 343
    FC-3-129-3205 3 129 3205 218 343
    FC-3-129-3460 3 129 3460 218 343
    FC-3-129-3880 3 129 3880 218 343
    FC-3-129-4270 3 129 4270 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-5180 4 129 5180 218 343
    FC-4-149-3680 4 149 3680 218 343
    FC-4-149-3980 4 149 3980 218 343
    FC-4-149-4280 4 149 4280 244 343
    FC-4-149-4620 4 149 4620 244 343
    FC-4-149-4940 4 149 4940 244 343
    FC-4-149-5180 4 149 5180 244 343
    FC-4-149-5460 4 149 5460 244 343
    FC-4-169-4280 4 169 4280 244 343
    FC-4-169-4620 4 169 4620 244 343
    FC-4-169-4940 4 169 4940 244 343
    FC-4-169-5180 4 169 5180 244 343
    FC-4-169-5460 4 169 5460 244 343
    FC-5-169-5355 5 169 5355 244 343
    FC-5-169-5780 5 169 5780 244 343
    FC-5-169-6180 5 169 6180 244 343
    FC-5-169-6830 5 169 6830 244 343
    FC-5-169-7130 5 169 7130 244 343
    FC-5-169-7630 5 169 7630 244 343
    FC-5-169-8130 5 169 8130 244 343
    FC-5-169-9030 5 169 9030 244 343
    FC-5-169-9530 5 169 9530 244 343
    FC-4-191-5460 4 191 5460 274 343
    FC-5-191-5780 5 191 5780 274 343
    FC-5-191-6180 5 191 6180 274 343
    FC-5-191-7130 5 191 7130 274 343
    FC-5-191-7630 5 191 7630 274 343
    FC-5-191-8130 5 191 8130 274 343
    FC-5-191-9030 5 191 9030 274 343
    FC-5-191-9530 5 191 9530 274 343
    FC-5-214-7610 5 214 7610 274 343
    FC-5-214-9030 5 214 9030 274 343


    Telescopic Lift  Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry

    Telescopic Lift  Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry

    Telescopic Lift  Hydraulic Cylinder for Lorry Tipper Semitrailer Mining Quarry
