| Place of Origin: | shangdong |
| Brand Name: | DALLAST |
| Certification: | ISO9001-2009 ,TS16949 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shrink film, pallet, plywood case and carton |
| Delivery Time: | 20- 25 days after down payment |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 3000PCS per year |
| Usage: | Dump Truck, Tipper, Dump Trailer | Standard: | Nonstandard |
|---|---|---|---|
| Size: | Custom Made | Installation Form: | FC |
| Working Pressure: | 16MPa | Color Customized: | Ok |
| High Light: | dump truck hydraulic ram,dump truck telescopic cylinder |
||

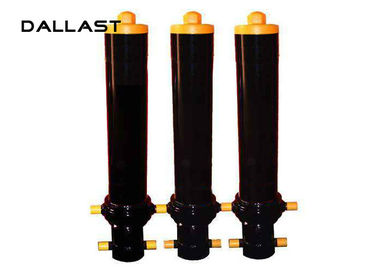

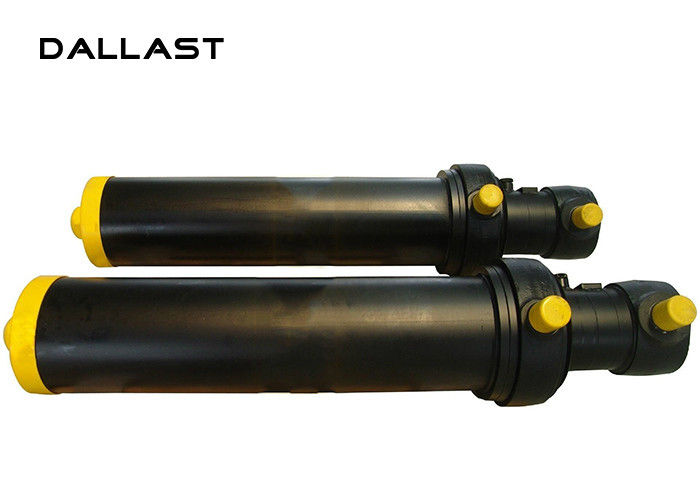

Single Acting Telescopic Heavy Duty Dump Truck Hydraulic Cylinder
We are leader manufaturers hydraulic cylinder in China.
We are a professional hydrauli cylinder manufacturer that designs and manufactures Custom Hydraulic Cylinders used in a variety of applications. We believe that our expertise in specialized cylinders,coupled with our highly advanced equipments, enables us to provide you with superior transmission solutions.
Manufacturing capability
How do we ensure product quality?
| Piston rod | 1: hard chrome plating 2: thickness of 0.03-0.05mm; 3: in-house salt spray test |
| Cylinder tube | 1: standard material-#45, SAE1045, CK45 2. surface roughness: Ra0.4-0.08micron |
| Other parts | |
| Seals | NOK, Hallite, Parker etc. |
| Welding | mannual & machine welding |
| FC Type Hydraulic Cylinder | |||||
| MODEL NO. | Stage | Largest Stage Diameter | Stroke | The largest sleeve OD | Mounting distance |
| (mm) | (mm) | (mm) | (mm) | ||
| FC-4-149-4280 | 4 | 149 | 4280 | 244 | 343 |
| FC-4-149-4620 | 4 | 149 | 4620 | 244 | 343 |
| FC-4-149-4940 | 4 | 149 | 4940 | 244 | 343 |
| FC-4-149-5180 | 4 | 149 | 5180 | 244 | 343 |
| FC-4-149-5460 | 4 | 149 | 5460 | 244 | 343 |
| FC-4-169-4280 | 4 | 169 | 4280 | 244 | 343 |
| FC-4-169-4620 | 4 | 169 | 4620 | 244 | 343 |
| FC-4-169-4940 | 4 | 169 | 4940 | 244 | 343 |
| FC-4-169-5180 | 4 | 169 | 5180 | 244 | 343 |
| FC-4-169-5460 | 4 | 169 | 5460 | 244 | 343 |
| FC-5-169-5355 | 5 | 169 | 5355 | 244 | 343 |
| FC-5-169-5780 | 5 | 169 | 5780 | 244 | 343 |
| FC-5-169-6180 | 5 | 169 | 6180 | 244 | 343 |
| FC-5-169-6830 | 5 | 169 | 6830 | 244 | 343 |
| FC-5-169-7130 | 5 | 169 | 7130 | 244 | 343 |
| FC-5-169-7630 | 5 | 169 | 7630 | 244 | 343 |
| FC-5-169-8130 | 5 | 169 | 8130 | 244 | 343 |
| FC-5-169-9030 | 5 | 169 | 9030 | 244 | 343 |
| FC-5-169-9530 | 5 | 169 | 9530 | 244 | 343 |
| FC-4-191-5460 | 4 | 191 | 5460 | 274 | 343 |
| FC-5-191-5780 | 5 | 191 | 5780 | 274 | 343 |
| FC-5-191-6180 | 5 | 191 | 6180 | 274 | 343 |
| FC-5-191-7130 | 5 | 191 | 7130 | 274 | 343 |
| FC-5-191-7630 | 5 | 191 | 7630 | 274 | 343 |
| FC-5-191-8130 | 5 | 191 | 8130 | 274 | 343 |
| FC-5-191-9030 | 5 | 191 | 9030 | 274 | 343 |
| FC-5-191-9530 | 5 | 191 | 9530 | 274 | 343 |
| FC-5-214-7610 | 5 | 214 | 7610 | 274 | 343 |
| FC-5-214-9030 | 5 | 214 | 9030 | 274 | 343 |
