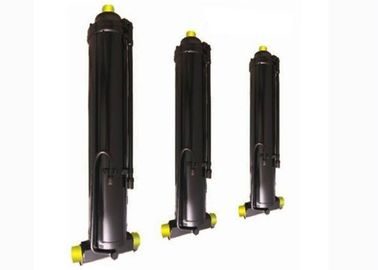

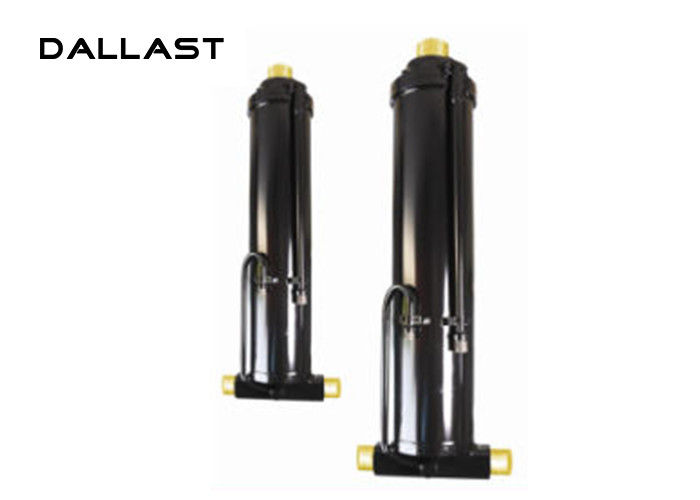

Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder

Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder

    • Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder
    • Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder
    • Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder
  • Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable

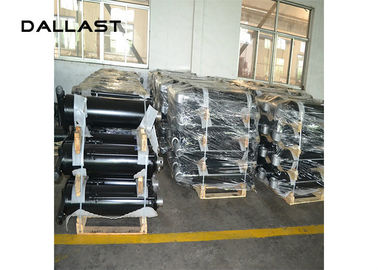

    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 50000PCS per year
    Contact Now
    Detailed Product Description
    Usage: Automation And Control Installation Form: Axial Tripod-style
    Stroke: 630mm Length: 965mm
    Transport Package: Wooden Pallet And Seal Film Origin: China
    Structure: Piston Cylinder Standard: Nonstandard
    High Light:

    dump truck hydraulic ram

    ,

    dump trailer hydraulic cylinder

    Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder



    The Hydraulic cylinder Featuers:
    1. Big lifting force:
    Adopt high strength imported(Italy Marcegaglia ) materials, work under pressure up to 22 MPa, the unit weight of the lifting force is 10% ~ 20% higher than the similar products.
    2. High security:
    excellent structural design ensure the oil cylinder lift smoothly, improve safety operation and create the most valuable security guarantee for the user;
    3. Stronger weather resistance:
    The application new materials and special structures can adapt to different environment from cold to hot and can round-clock operation.
    4. Best performance:
    excellent performance product and longer lifetime brings visible benefit and no worries



    HS Code 8412210000
    Application Dump truck, Tipper, Dump Trailer
    Material of cylinder tube 45# steel
    Seal Hallite
    Coating All tubes are chrome plated
    Working pressure 16MP, 18MP or 22MP for your selection
    Stroke 630mm, 735mmm,750mm,900mm or per your requirements
    Color Red black blue gray,or according to customer's requirements
    Mounting type Earring-trunnion, double trunnion, double earring,or per customer's request
    Warranty One year after shipping arrival
    Delivery time 30 days after payment receiving



    General model as below:

    •  Complete CNC Machining capabilities
    •  Bore size from 40mm to 800mm,
    •  Stroke lengths to 12000mm or longer
    •  Working pressures to 42Mpa
    •  Customized your needed hydraulic cylinder



    Model

    Bore Diameter

    (mm)

    Rod Diameter

    (mm)

    Stroke

    (mm)

    Installation distance

    (mm)


    Pressure

    (MPa)

    Rated thrust

    (ton)


    Lift

    (ton)

    Capacity

    (L)

    HG-E180x560ST 180 80 560 1000 16 40.7 15~25 11.4
    HG-E180x660HX 180 80 660 1050 16 40.7 15~25 13.48
    HG-E180x680ST 180 80 680 1140 16 40.7 15~25 13.89
    HG-E180x720SY 180 80 720 1125 16 40.7 15~25 14.7
    HG-E180x760HJ 180 80 760 1170 16 40.7 15~25 15.52
    HG-E180x780ST 180 80 780 1140 16 40.7 15~25 15.93
    HG-E180x790SX 180 80 790 1130 16 40.7 15~25 16.13



    Model

    Bore Diameter

    (mm)

    Rod Diameter

    (mm)

    Stroke

    (mm)

    Installation distance

    (mm)

    Pressure

    (MPa)

    Rated thrust

    (ton)

    Lift

    (ton)

    Capacity

    (L)

    HG-E160x490ST 160 70 490 860 16 32.1 10~20 7.97
    HG-E160x560ST 160 70 560 1000 16 32.1 10~20 9.10
    HG-E160x650SX 160 70 650 1000 16 32.1 10~20 10.57
    HG-E160x680ST 160 70 680 1140 16 32.1 10~20 11.06
    HG-E160x700BH 160 70 700 1025 16 32.1 10~20 11.38
    HG-E160x720ZY 160 70 720 1125 16 32.1 10~20 11.71
    HG-E160x780ST 160 70 780 1145 16 32.1 10~20 12.68
    HG-E160x790SX 160 70 790 1155 16 32.1 10~20 11.71
    HG-E160x800BH 160 70 800 1125 16 32.1 10~20 13.01



    Model

    Bore Diameter

    (mm)

    Rod Diameter

    (mm)

    Stroke

    (mm)

    Installation distance

    (mm)

    Pressure

    (MPa)

    Rated thrust

    (ton)

    Lift

    (ton)

    Capacity

    (L)

    HG-E220x760XM 220 100 760 1080 16 60.8 20~35 22.92
    HG-E220x780HW 220 100 780 1220 16 60.8 20~35 23.52
    HG-E220x900HJ 220 100 900 1190 16 60.8 20~35 27.14
    HG-E220x910XM 220 100 910 1210 16 60.8 20~35 27.45
    HG-E220x920HW 220 100 920 1200 16 60.8 20~35 27.75
    HG-E220x1034ZY 220 100 1034 1370 16 60.8 20~35 31.18



    Model

    Bore Diameter

    (mm)

    Rod Diameter

    (mm)

    Stroke

    (mm)

    Installation distance

    (mm)

    Pressure

    (MPa)

    Rated thrust

    (ton)

    Lift

    (ton)

    Capacity

    (L)

    HG-E200x720SY 200 100 720 1125 16 50.2 15~30 16.96
    HG-E200x750SS 200 85 750 1165 16 50.2 15~30 19.31
    HG-E200x770HW 200 100 770 1120 16 50.2 15~30 18.14
    HG-E200x780ST 200 100 780 1145 16 50.2 15~30 18.38
    HG-E200x850ST 200 100 850 1230 16 50.2 15~30 20.03
    HG-E200x900HJB 200 100 900 1190 16 50.2 15~30 21.21
    HG-E200x910LN 200 100 910 1210 16 50.2 15~30 21.44

    Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder

    Double Acting Piston Heavy - Duty Tipper Dump Truck Hydraulic Cylinder
