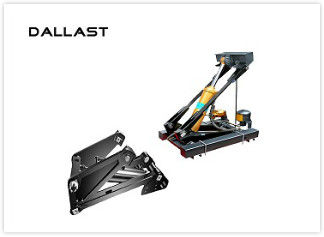

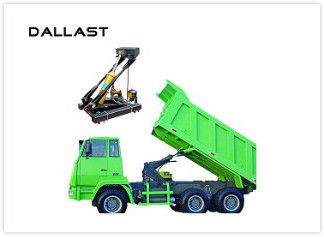

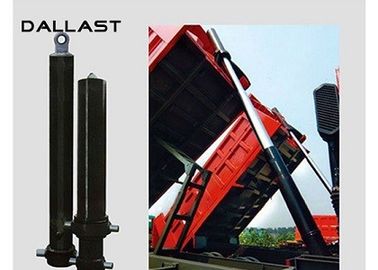

Double Acting Hydraulic Cylinder For Dump Truck Underbody And Front-end Hoist

Double Acting Hydraulic Cylinder For Dump Truck Underbody And Front-end Hoist

    • Double Acting Hydraulic Cylinder For Dump Truck Underbody And Front-end Hoist
    • Double Acting Hydraulic Cylinder For Dump Truck Underbody And Front-end Hoist
    • Double Acting Hydraulic Cylinder For Dump Truck Underbody And Front-end Hoist
  • Double Acting Hydraulic Cylinder For Dump Truck Underbody And Front-end Hoist

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001, Other
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 15-25 work days depends on products type
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 100000pieces
    Contact Now
    Detailed Product Description
    Temperature: -30℃-80 ℃ Application: Various Dump Trucks, For Garbage Trucks, Mining Trucks
    Type Of Action: Double Acting Hydraulic Cylinder Color: Red, Black, Or According To Yiur Request
    Stressful Environment: Medium Pressure Or High Pressure Material: Stainless Steel, Carbon Steel, Alloy Steel, 27SIMN, 20#, Or According To Your Need
    Working Pressure: 16-35MPa Fluid Type: Various Operating Fluids

    Hydraulic Cylinder Double Acting For Dump Truck Underbody And Front-end Hoist



    Product introduction:

    Shenzhen DALLAST Technology Co. Ltd., offers a full line hydraulic hoist cylinder design, providing dumping capacities of 1 to 40 tons. And the stroke of hydraulic hoist cylinder could be customized according to your requirement. Their popularity is due to competitive pricing, availability and durability. All hoists equipment feature integrated Zerk grease fittings at all pivots, including the provided rear hinges. When you purchase hydraulic hoist cylinders from DALLAST, all necessary mounting hardware, fasteners, and body prop hardware are included.



    Application:

    Dump Trucks and Trailers
    • Mining Vehicles
    • Material Handling Vehicles
    • Construction Vehicles



    some modes and its main technical parameters:

    Models

    Recommended

    Truck G.W.(kg)



    Body length

    (mm)



    Rear

    Overhang

    (mm)



    Distance between load center and hinge(mm)



    Distance between trunnion and hinge (mm)



    Rated lifting

    capacity(kg)

    Designed Max.lifting capacity(kg)(including load weight)
    KEM-92 dump hoist 4000-5500 3100 340 110 1270 3000-5000 32100/60°
    KRM-143 dump hoist 6000-9000 3400 400 1300 1100 5000-10000 18000/60°
    KRM-160S dump hoist 8000-11000 3800 600 1300 1400 10000-20000 32100/52°
    KRM-160C dump hoist 11000-17000 4500 750 1500 2050 10000-20000 32100/52°
    KRM-183 dump hoist 21000-29000 5300 900 1750 2480 15000-2500 40700/53°
    KRM-200A dump hoist 5000-32000 6000 1000 2000 2630 15000-30000 50200/48°
    KRM-201 dump hoist 25000-32000 6000 1000 2000 2630 15000-30000 50200/48°
    KRM-220 42’’ dump hoist 3500 6000 1000 2000 2630 2500-4500 75900/48°
    KRM-220 62’’dump hoist 3500 6000 1000 2000 3810 25000-45000 75900/53°
    KRM-220 68’’dump hoist 30000-39000 8000 1200 3000 3630 2500-4500 75900/47°



    Benefits$Details:

    1. Made from special high strength steel to reduce overall weight.

    2. Heavily chromed and polished cylinder piston rods for longer seal lift.

    3. High pressure, low volume hydraulics for fast cycle times.

    4. Operating pressure: 16-35MPa

    5. Heavy structure angle rear hinge for superior strength.

    6. Pre-installed, integral body automatically positions itself, stores securely out of the way when not in use.

    7. Cylinder specification: offered by factory or could be customized

    8. Bore size: 100-1000mm or could be customized just send us the drawings.

    9. Stroke: customized

    10. Mounting height: 6-1/4’’ or customized according to drawings.

    11. Unique tapered hoist frame to avoid classic components.

    12. Capacity range: according to the type and model of the hydraulic cylinder.



    Warranty:

    We offer 12 month warranty.

    As our hydraulic hoist cylinders, are built to last; Tools Depot offers one of the best standard products warranties in this industry. We combine quality materials with employees that take great pride in their work to offer a Limited Warranty on our standard products delivered hereunder against faulty workmanship and use of defective materials for normal use when properly maintained for 12 months from the date of shipment in normal use and service.



    Qaulity control:

    Seiko secret agents, to ensure quality of the hydraulic hoist cylinder.

    The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.

    The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    FAQ:

    1. Are you a manufacturer?

        We are professional manufacturer in hydraulic. We will provide competitive price.

    2. What is your warranty?

        Our products are all available for one-year free warranty and product lifetime consulting service.

    3. How to ship your product?

        We are transported by sea, by air or by international express. According to your needs.

    4. Do you support OEM service?

        Yes. OEM service is available. We are pleased to process according to the customer's drawings.



    Company profile:

     Our Company is specializing in the production of piston rods and various types of hydraulic cylinders. We have the entire production of various professional piston rod and hydraulic equipment.  Unlike many hydraulic hoist cylinder brands, Shenzhen DALLAST manufactures the hydraulic cylinders used in various applications.

    Double Acting Hydraulic Cylinder For Dump Truck Underbody And Front-end Hoist
