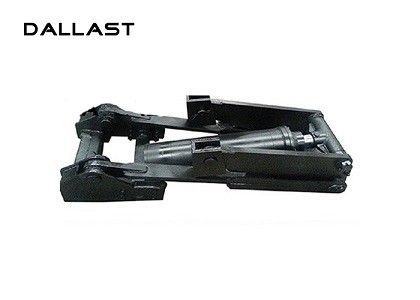

Hoist Dump Truck Double Acting One Stage Hydraulic Cylinder Hydraulic Power Unit

Hoist Dump Truck Double Acting One Stage Hydraulic Cylinder Hydraulic Power Unit

    • Hoist Dump Truck Double Acting One Stage Hydraulic Cylinder Hydraulic Power Unit
    • Hoist Dump Truck Double Acting One Stage Hydraulic Cylinder Hydraulic Power Unit
  • Hoist Dump Truck Double Acting One Stage Hydraulic Cylinder Hydraulic Power Unit

    Product Details:

    Place of Origin: Qingdao, China
    Brand Name: DALLAST
    Certification: GS, RoHS, CE, ISO9001, Other
    Model Number: could be customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pieces
    Price: negotiated
    Packaging Details: carton box
    Delivery Time: 15-25 work days depends on products type
    Payment Terms: T/T, Western Union, D/P, D/A, L/C
    Supply Ability: 100000pieces
    Contact Now
    Detailed Product Description
    Temperature: -30℃-80 ℃ Application: Various Dump Trucks, For Garbage Trucks, Mining Trucks
    Type Of Action: Double Acting Hydraulic Cylinder Color: Red, Black, Or According To Yiur Request
    Size: Customized Specification: Could Be Customized
    Stressful Environment: Medium Pressure Or High Pressure Material: Stainless Steel, Carbon Steel, Alloy Steel, 27SIMN, 20#, Or According To Your Need

    Hoist Dump Truck Double Acting One Stage Hydraulic Cylinder Hydraulic Power Unit



    Product introduction:

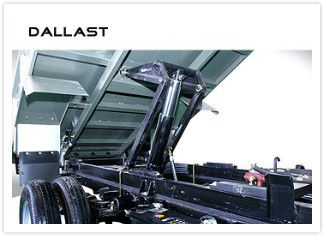

    Shenzhen DALLAST Technology Co. Ltd., offers a full line hydraulic hoist cylinder design, providing dumping capacities of 1 to 40 tons. And the stroke of hydraulic hoist cylinder could be customized according to your requirement. Their popularity is due to competitive pricing, availability and durability. All hoists equipment feature integrated Zerk grease fittings at all pivots, including the provided rear hinges. When you purchase hydraulic hoist cylinders from DALLAST, all necessary mounting hardware, fasteners, and body prop hardware are included.



    some modes and its main technical parameters:







    Models

                                 Hoist cylinder



    Working pressure(MPa)(kgf/cm²)



    Inner diameter



    Stroke(mm)

    Min close distance(mm)



    Piston rod diameter



    Max pressure (MPa)

    (kgf/cm²)



    Rotating speed(rpm)



    Discharge volume

    (ml/rev)



    Max testing pressure

    (MPa)(kgf/cm²)



    Weight (kg)

    KEM-92 dump hoist 6.4 / 65 160 405 666 45 14.7/ 150 800 35 17.2 /175 10
    KRM-143 dump hoist 6.4/65 140 504 727 60 14.7/150 800 55 20.6/210 13
    KRM-160S dump hoist 6.9/70 160 561 914 70 15.7/160 800 72 20.6/210 22
    KRM-160C dump hoist 6.9/70 160 747 1075 70 15.7/160 800 72 20.6/210 22
    KRM-183 dump hoist 11.8/120 180 832 1108 80 20.6/210 800 136 20.6/210 37
    KRM-200A dump hoist 10.3/105 200 866 1203 90 20.6/210 800 136 20.6/210 37
    KRM-201 dump hoist 10.3/105 200 878 1211 100 20.6/210 800 136 20.6/210 37
    KRM-220 42’’ dump hoist 9.8/100 220 865 1197 100 20.6/210 800 148 20.6/210 38
    KRM-220 62’’dump hoist 9.8/100 220 1338 1696 100 20.6/210 800 148 20.6/210 38
    KRM-220 68’’dump hoist 9.8/100 220 1510 1876 100 20.6/210 800 148 20.6/210 38



    Benefits$Details:

    1. Made from special high strength steel to reduce overall weight.

    2. Heavily chromed and polished cylinder piston rods for longer seal lift.

    3. High pressure, low volume hydraulics for fast cycle times.

    4. Operating pressure: 16-35MPa

    5. Heavy structure angle rear hinge for superior strength.

    6. Pre-installed, integral body automatically positions itself, stores securely out of the way when not in use.

    7. Cylinder specification: offered by factory or could be customized

    8. Bore size: 100-1000mm or could be customized just send us the drawings.

    9. Stroke: customized

    10. Mounting height: 6-1/4’’ or customized according to drawings.

    11. Unique tapered hoist frame to avoid classic components.

    12. Capacity range: according to the type and model of the hydraulic cylinder.



    Warranty:

    We offer 12 month warranty.

    As our hydraulic hoist cylinders, are built to last; Tools Depot offers one of the best standard products warranties in this industry. We combine quality materials with employees that take great pride in their work to offer a Limited Warranty on our standard products delivered hereunder against faulty workmanship and use of defective materials for normal use when properly maintained for 12 months from the date of shipment in normal use and service.



    Qaulity control:

    Seiko secret agents, to ensure quality of the hydraulic hoist cylinder.

    The product have to go through heat treatment - bore boring - grinding - car processing - black nitriding and many other processes.

    The company accepted the Valet processing various types and various sizes products, processing and processing more quotes, welcome to consult.



    FAQ:

    1. Are you a manufacturer?

        We are professional manufacturer in hydraulic. We will provide competitive price.

    2. What is your warranty?

        Our products are all available for one-year free warranty and product lifetime consulting service.

    3. How to ship your product?

        We are transported by sea, by air or by international express. According to your needs.

    4. Do you support OEM service?

        Yes. OEM service is available. We are pleased to process according to the customer's drawings.



    Company profile:

     Our Company is specializing in the production of piston rods and various types of hydraulic cylinders. We have the entire production of various professional piston rod and hydraulic equipment.  Unlike many hydraulic hoist cylinder brands, Shenzhen DALLAST manufactures the hydraulic cylinders used in various applications.
