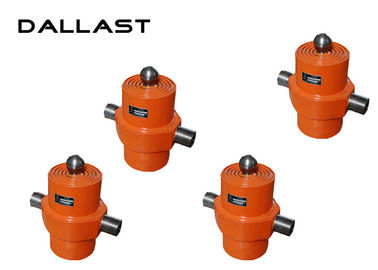

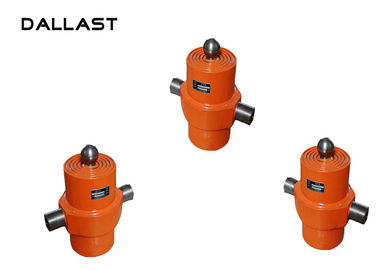

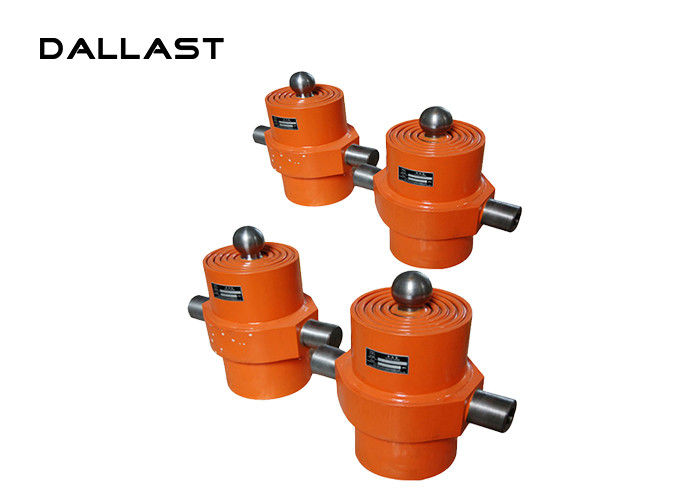

One Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder

One Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder

    • One  Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder
    • One  Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder
    • One  Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder
  • One  Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Structure: Piston Rod Cylinder Power: Hydraulic
    Body Material: Steel Part: Hydraulic Cylinder
    Specification: Seal Kits Transport Package: Wooden Pallet
    High Light:

    dump truck hydraulic ram

    ,

    dump truck telescopic cylinder



    Three Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder





    Product Name

    dump truck Hydraulic Cylinder
    Bore of Hydraulic Cylinder 85mm-248mm
    Diameter of piston rod 12mm-500mm
    Stroke  Max 15000mm
    Working pressure of hydraulic cylinder 5Mpa-36Mpa
    seals Park Hallite Asyon
    Plunger 27 Simn, 45# steel
    Warranty One year after shipping arrival
    working temperature —30° C to 80°C





    Advantages for Dallast hydraulic cylinde

    1. A stronger ability to adapt to the environment

    Using innovative patented technology and the application of new material seal can adapt

    to -40~110 DEG C temperature range, high temperature and low temperature operation can ensure the excellent performance!

    2. Lighter

    Lower 15%~20% than the other series of products with weight, lift lifting 10%~15%!

    3. Lift more

    Compared with other products with lift lifting 10%~15%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!



    TG type

    Rated pressure: 16Mpa

    Brand name Model Bore diameter Installation distance Stroke
    DALLAST 4TG-E160*800 160mm 140mm 800mm
    DALLAST 4TG-E150*830 150mm 160mm 830mm
    DALLAST 4TG-E140*730 140mm 140mm 730mm
    DALLAST 4TG-E135*800 135mm 140mm 800mm
    DALLAST 4TG-E135*730 135mm 140mm 730mm
    DALLAST 4TG-E130*750 130mm 110mm 750mm
    DALLAST 5TG-E130*750 130mm 140mm 750mm
    DALLAST 4TG-E110*1360 110mm 140mm 1360mm
    DALLAST 3TG-E110*1530 110mm 140mm 1530mm
    DALLAST 3TG-E110*1350 110mm 140mm 1350mm
    DALLAST 3TG-E110*1020 110mm 140mm 1020mm
    DALLAST 3TG-E90*1155 90mm 140mm 1155mm
    DALLAST 3TG-E90*1020 90mm 140mm 1020mm
    DALLAST 3TG-E90*900 90mm 260mm 900mm
    DALLAST 3TG-E90*750 90mm 140mm 750mm
    DALLAST 2TG-E90*900 90mm 140mm 900mm
    DALLAST 2TG-E90*600 90mm 260mm 600mm



    Installment Introduction:



    1. The specifications for all the install screw and self-locking is M16(DIN931.Q8.8)

    2. The specifications for grommet is M1730MM.

    3. The biggest gap between support and cylinder is 2mm.

    4. Make sure the hydraulic cylinder vertically ,up and down two parallel shafts when installed.

    5. The installation should be greater than the center distance between the closed hydraulic cylinder center distance 20mm-30mm.





    Front-end hydraulic cylinder



    1. Higher lifting frequency: the Dallast mining series can be used for 24-hour short distance high-frequency work. With its stable performance, low mechanic failure, it can reduce parking time and improve working efficiency.

    2. Greater environment adaptability: it adopts newly-developed seal patented technology and new material, and thus can work within a temperature range of -40°C-110°C. it can work smoothly in both high and low temperature environment.

    3. Lighter: it is 15%-20% lighter than other series of cylinder, but has improved its lifting force by 10%-15%..



    Company

    With its versatile design and manufacturing capabilities, Dallast has several hydraulic cylinder series: standard hydraulic cylinders, industrial machinery, vehicle equipment, lifting equipment, construction machinery and other applications. Adhere to the excellent quality, reasonable price standards, excellent quality assurance, best after-sales service, we won the praise and trust from our customers and have established long-term business relations with some customers If you have any questions concerning our products, please contact us! We can customized it for you!



    One  Way Dump Truck Hydraulic Cylinder , Single Acting Telescopic Hydraulic Cylinder
