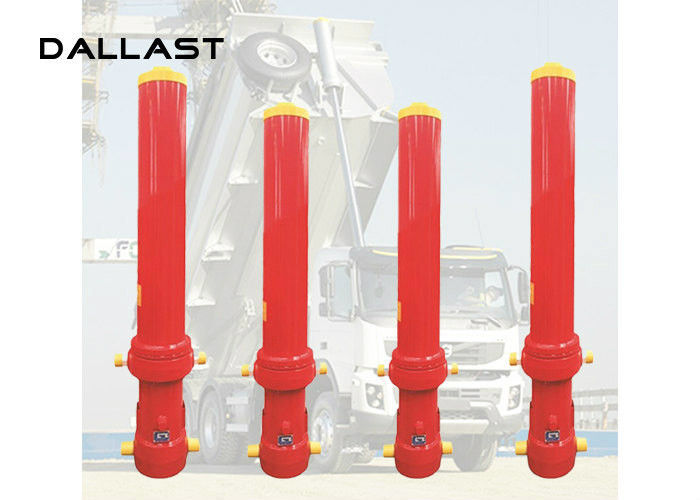

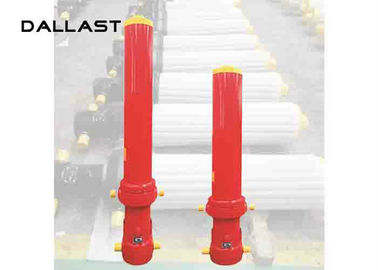

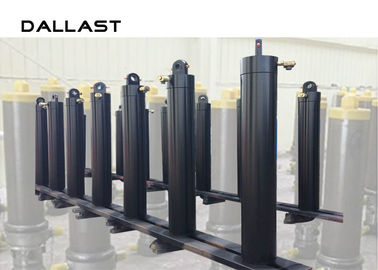

3 Stage Dump Truck Cylinder Piston Sleeve , Hydraulic Ram Cylinder

3 Stage Dump Truck Cylinder Piston Sleeve , Hydraulic Ram Cylinder

    • 3 Stage Dump Truck Cylinder Piston Sleeve , Hydraulic Ram Cylinder
    • 3 Stage Dump Truck Cylinder Piston Sleeve , Hydraulic Ram Cylinder
    • 3 Stage Dump Truck Cylinder Piston Sleeve , Hydraulic Ram Cylinder
  • 3 Stage Dump Truck Cylinder Piston Sleeve , Hydraulic Ram Cylinder

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Sample: Available Body Material: According To User Requirements
    Maximum Stroke: Requirements Certification: GS, RoHS, CE, ISO9001
    Structure: Telescopic Sleeve Cylinder Acting Way: Single Acting

    3 Stage Single Acting Piston Sleeve Dump Truck Hydraulic Cylinder



    Why choose us:

    1. Various style for completely series hydrauli products for you to choose
    2. High quality with competitive price
    3. Provide free products information.
    4. Reliable quality assurance and active after-sell service

    5. 100% test before shipment

    6. Short lead time

    7. Supply custom made cylinders for our customers



    3 Stage FEE Type

    NO MODEL NO.

    STROKE

    mm

    Mounting Distance

    mm

    Closed length

    mm

    Top EYE .Diamether

    mm

    Top EYE .Width   mm

    1 3TG-107-2055 2055 1054 1110 50.8 42
    2 3TG-107-2175 2175 1104 1160 50.8 42
    3 3TG-107-2715 2715 1304 1360 50.8 42
    4 3TG-126-2175 2175 1129 1185 50.8 42
    5 3TG-126-2715 2715 1329 1385 50.8 42
    6 3TG-126-3240 3240 1479 1535 50.8 42
    7 3TG-126-3840 3840 1679 1735 50.8 42
    8 3TG-145-2715 2715 1304 1360 50.8 42
    9 3TG-145-3240 3240 1454 1510 50.8 42
    10 3TG-145-3390 3390 1504 1560 50.8 42
    11 3TG-145-3840 3840 1654 1710 50.8 42



    3 Stage FC Type



    NO MODEL NO.

    First Stage Diameter

    mm

    Stroke

    mm

    Largest Sleeve OD

    mm

    Closed length

    mm

    Mounting distance

    mm

    1 FC-3-107-2855 107 2855 152 1268 311
    2 FC-3-107-3115 107 3115 152 1368 311
    3 FC-3-107-3265 107 3265 152 1418 311
    4 FC-3-107-3415 107 3415 152 1468 311
    5 FC-3-107-3715 107 3715 152 1568 311
    6 FC-3-126-3230 126 3230 219 1403 343
    7 FC-3-126-3680 126 3680 219 1553 343
    8 FC-3-126-3830 126 3830 219 1603 343
    9 FC-3-126-4400 126 4400 219 1803 343





    Application Dump Truck  Trailer, Agricultural Machinery, Engineering Machinery
    Material of cylinder tube 27 Simn  45# steel
    Seal Kits Kaden, Hallite, Parker, Aston
    Hardness Hrc 20-50
    Working pressure 5MPa-36MPa
    Stroke 2000mm-12000mm
    Color Black, Blue, White, Yellow, Red, Green etc
    rod material 42 Crmo 45# steel



    Advantages for hydraulic cylinder:



    1. More secure

    With excellent structure design and the application of new materials, to withstand the harsh conditions of sustained and stable

    work not disarticulating. To ensure the safety of drivers and vehicles, for the user to create the most valuable safety assurance!

    2. Faster unloding speed.

    With excellet structure design,promote unloding speeed.

    3. The lifting frequency higher

    Suitable for all-weather shuttle high frequency operation, stable performance, low failure rate,

    increase the number of transport, reduce the parking time!



    After-Sales Service

    Q1: what are we doing before products shipping out?

    Re: 1. 100% Inspecting for products , final check for the packing, notice customer.

    2. Giving customer the chain information, like the material certification, inspect reports, testing results.etc.

    3. Providing the packing detail, including the customs documents, products putting pictures, container chaining. etc.



    Q2: what we will do after customer receive the bad products?

    Re: 1. For shipping problems: check with forwarder why it happened, and take responsibilty if our packing is wrong.

    2. If the sample is approved, and problems happened in main production. We first to find out the reason, and then come out the best solution for customers. Like giving some discount, take charge for the air shipping cost, etc.

    3. We will have " quality feedbacks" in factory, and give a lesson to workers, and insure this problem will not be happen next time.



    Q3: Any favor for VIP Customer or old customer?

    Re: 1. Giving some discounts for normal products

    2. Providing better and quick services , every quotation or question reply on 8 hours.

    3. Emergency order will be VIP Chanel.



    3 Stage Dump Truck Cylinder Piston Sleeve , Hydraulic Ram Cylinder
