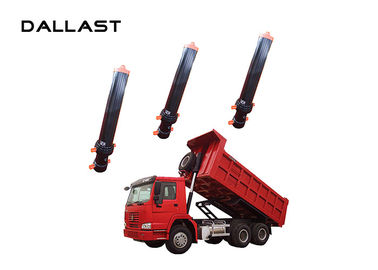

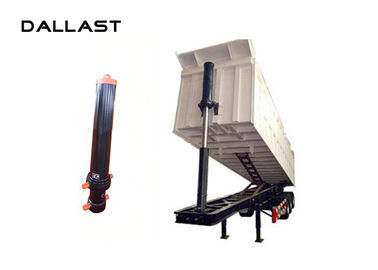

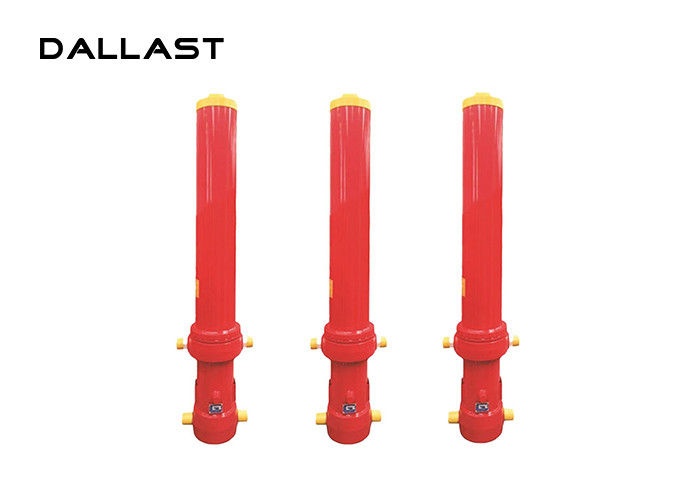

Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod

Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod

    • Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod
    • Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod
    • Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod
  • Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Capacity: OEM ODM Sample Service: After-sale Service
    Model Number: 3/4/5/6 Stage Type: Hydraulic Single Acting
    Installation: Front End Loader Color: Optional



    Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod



    Product Advantage

    TG is a single-acting hydraulic cylinder multi-section telescopic lifting cylinder sleeve. It has small size, stroke length and other characteristics and mainly used for hydraulic systems of engineering and Dump truck.

    Color more color
    Product material high manganese steel
    Working pressure 5-36MPa
    Min order 1 piece
    Supply ability according to customers/ request produce
    Delivery time within 10-15 days after contract establish
    Warranty time 6 month
    Main markets south Asia/ Mid East/ Africa/ Southeast Asia/ North America/ South America
    Materials of Hydraulic cylinder tube 45# steel,27SiMn
    Technical Treatment of Piston Rod Quenched and tempered. chromed





    What is the information we require for customer before we make the quotation?

    1. Bore & Rod Dia. ( inch or mm)
    2. The closed & opened length (Stroke)
    3. Mounted Type: like bearing or clevis
    4. Working & Testing Pressure
    5. The oil port size, thread size
    6. Assembling way & distance
    7. Drawing or blueprint is enough for quotation


    3 Stage FC type hydraulic cylinder
    MODEL NO. Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
    (mm) (mm) (mm) (mm)
    FC-3-110-3205 110 3205 168 343
    FC-3-110-3460 110 3460 168 343
    FC-3-129-2980 129 2980 218 343
    FC-3-129-3205 129 3205 218 343
    FC-3-129-3460 129 3460 218 343
    FC-3-129-3880 129 3880 218 343
    FC-3-129-4270 129 4270 218 343

    MODEL NO. First Stage Diameter Stroke Largest Sleeve OD Mounting distance
    (mm) (mm) (mm) (mm)
    FC-3-107-2855 107 2855 152 311
    FC-3-107-3115 107 3115 152 311
    FC-3-107-3265 107 3265 152 311
    FC-3-107-3415 107 3415 152 311
    FC-3-107-3715 107 3715 152 311
    FC-3-126-3230 126 3230 219 343
    FC-3-126-3680 126 3680 219 343
    FC-3-126-3830 126 3830 219 343
    FC-3-126-4400 126 4400 219 343

    Process Flow
    1. Customer RFQ
    2. Information Confirm (Drawing or samples specific reuqiremnets)
    3. Quotation (Reply in 24 hours)
    4. Order Confirm (PI, PO)
    5. Sample producing (upon receipt of 30% deposit)
    6. If sample approved, go to main production
    7. Delibery ( balance T/T, Customs clerance documents, 70% against B/L


    Features:

    1. Multistage telescopic long stroke hydraulic cylinder applies to long stroke lifting operation.

    2. Surface corrosion treatment, bright color, not east to rust.

    3. High strength alloy steel with high grade heat treatment, produced by imported CNC lathe, drilling machine and grinding machine.

    4. Import seeling parts, not easy to wear after continuous working.

    5. Dust ring reduces contamination, extending cylinder life.

    6. Single acting, load return.

    7. R2 3/8 coupler and dust cap included on all models.

    8. Flat saddle is standard, and tilting saddle is available.



    Press Dump Truck Single Acting Hydraulic Cylinder 3 Stage Piston Rod
