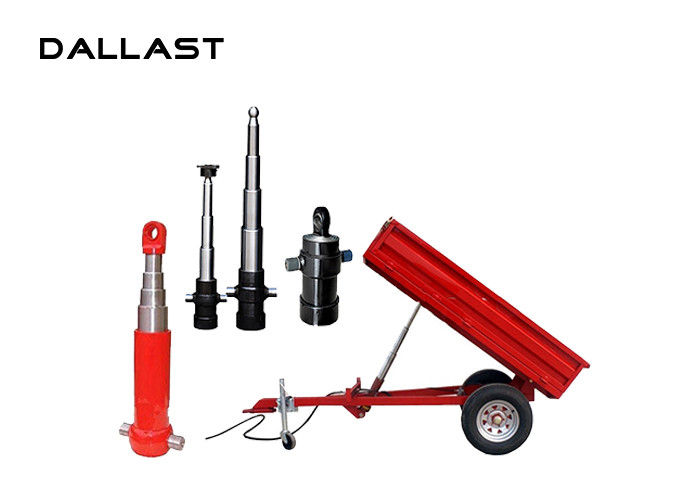

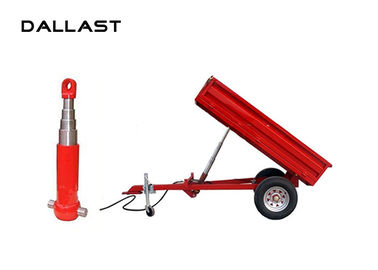

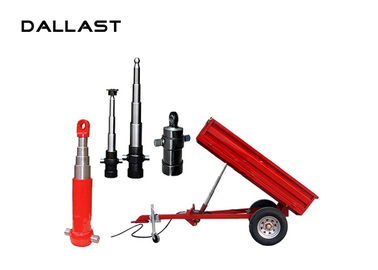

Long Strok Telescopic Multi Stage Hydraulic Cylinder Piston Rod ISO9001 Certification

    • Long Strok Telescopic Multi Stage Hydraulic Cylinder Piston Rod  ISO9001 Certification
    • Long Strok Telescopic Multi Stage Hydraulic Cylinder Piston Rod  ISO9001 Certification
    • Long Strok Telescopic Multi Stage Hydraulic Cylinder Piston Rod  ISO9001 Certification
    • Long Strok Telescopic Multi Stage Hydraulic Cylinder Piston Rod  ISO9001 Certification
  • Long Strok Telescopic Multi Stage Hydraulic Cylinder Piston Rod  ISO9001 Certification

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Structure: Piston Rod Hydraulic Cylinder Working Medium: Hydraulic Oil
    Maximum Stroke: As Per As Client's Requirements Power: Hydraulic
    Body Material: Steel Color: As Customer's Requirement



    Long Strok Telescopic Multi Stage Hydraulic Cylinder Piston Rod ISO9001 Certification



    Telescopic cylinders are designed with a series of steel or aluminum tubes of progressively smaller diameters nested within each other. The largest diameter sleeve is called the main or barrel. The smaller inner sleeves are called the stages. The smallest stage is often called the plunger or piston rod.

    Telescopic hydraulic cylinder can get a longer working stroke cylinder with multi-stage sleeve-shaped hydraulic cylinder. telescopic hydraulic cylinder, also known as multi-stage hydraulic cylinder

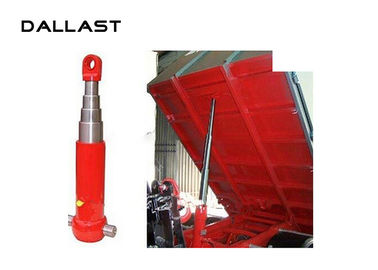

    Application Dump truck, Dump trailers, Tippers
    Material of cylinder tube steel
    Coating All tubes are chrome plated
    capacity 7t-120t
    Stroke 200mm-12000mm
    Color Black, Blue, Yellow, White, Red etc
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001: 2008, SGS, TS16949
    Warranty One year after shipping arrival





    Type

    Stage Model Rated pressure Bore diameter Installation distance Stroke
    (MPa) (mm) (mm) (mm)
    4 4TG-E180*800 16 180 140 800
    4 4TG-E160*800 16 160 140 800
    4 4TG-E150*830 16 150 160 830
    4 4TG-E140*800 16 140 140 800
    4 4TG-E140*730 16 140 140 730
    4 4TG-E135*800 16 135 140 800
    4 4TG-E135*730 16 135 140 730
    4 4TG-E130*750 16 130 110 750
    3 3TG-E150*800 16 150 140 800
    5 5TG-E130*750 16 130 140 750
    3 3TG-E130*900 16 130 140 900

    Available Features Include:
    • Single-acting, double-acting
    • A wide variety of mounting configurations and end mechanisms
    • A variety of integral valves
    • Special housing and rod materials for corrosive or hostile environments
    • Various packing, seal, and wiper materials for optimum performance and life in the customer's application
    • Various surface treatments and finishes for optimum performance and life in the customer's application



    QC:

    1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection

    2. Process Inspection: First Inspection, Random Inspection, Handover Inspection

    3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test

    4. Type Inspection

    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.

    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.



    FQA:

    1. Are you a manufacturer?

    Yes, we focus on the hydraulic industry for 15 years.

    We are professional manufacturer in hydraulic. We will provide competitive price.



    2. What is your warranty?

    Our products are all available for one-year free warranty and product lifetime consulting service.



    3. How to ship your product?

    We are transported by sea, by air or by international express.

    According to your needs.



    4.  Do you support OEM service?

    Yes. OEM service is available.

    We are pleased to process according to the customer's drawings.



    product model:
