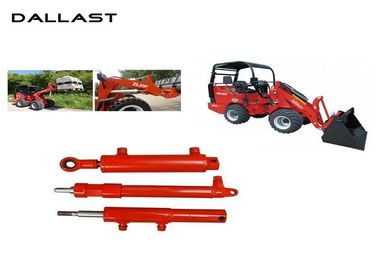

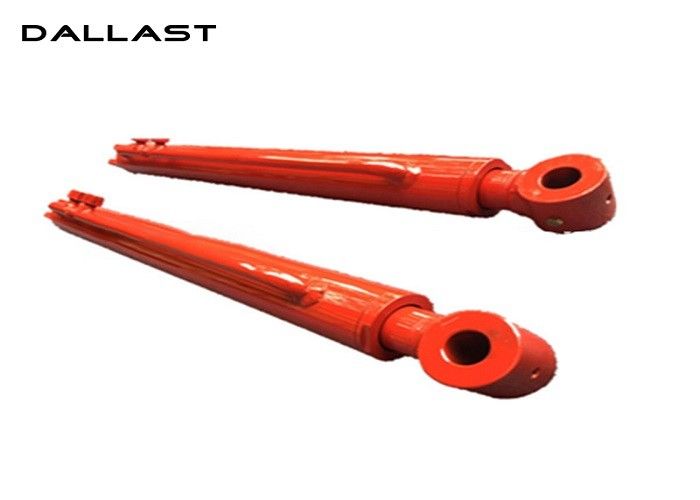

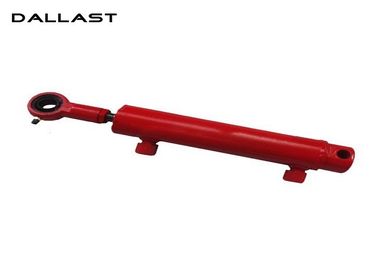

Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery

Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery

    • Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery
    • Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery
    • Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery
  • Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery

    Product Details:

    Place of Origin: China
    Brand Name: DALLAST
    Certification: ISO 9001 GS CE
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15 work day
    Payment Terms: D/A, L/C, D/P, T/T
    Supply Ability: 500000 piece/per YEAE
    Contact Now
    Detailed Product Description
    Color: According To Customer's Require Finished Hardnes: HRC 40-55
    Working Medium: Hydraulic Oil Part: Hydraulic Cylinder
    Usage: Tractor Pressure: Medium Pressure
    Material: 27Simn 45 Steel Adjusted From: Regulated Type



    Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery



    specification:

    Application Tractor, Corn combine harvester, Rice combine harvester
    Material of cylinder tube steel
    Coating All tubes are chrome plated
    Working pressure 10MPa-25MPa
    Bore size 40mm-80mm
    Stroke 2000mm-12000mm
    Color Black, Blue, Yellow, White, Red etc
    Mounting Type Earring-trunnion, double trunnion
    Plunger 20#, 45# steel with high frequency quenching
    Certification ISO9001: 2008, SGS, TS16949
    Warranty One year after shipping arrival
    working temperature -30° to 80°

    We can provide you with many sorts of single acting telescopic hydraulic cylinder and multistage telescopic hydraulic cylinder which are widely used for trailers, tippers and dump truck. The bore size of Dump Truck Hydraulic Cylinder is range 75mm to 278mm which can provide the max power of 120t.
    We also can design it according to your request.

    Product Advantages:
    1 more than 22 years manufacture experience
    2 Our own factory
    3 ISO9001-2008
    4 Competitive price and high quality
    4 Competitive price and high quality
    5 Based on your drawing or requirement
    6 rigid matching control and proper seals
    7 Easy install and easy maintain

    Product Process:

    1. Raw materials entering the factory, 27SiMn, 40CrMo, ST52, 45# steel tubes or bars for choice
    2. Do the pre-treatment including pickling, phosphating and saponification, and then cold-draw the seamless steel tubes.
    3. Put the steel tubes into the tempering furnace to do the stress relief annealing in convenience of the subsequent the processing.
    4. Multi-roll straightening machine, with 10 straightening points, achieves the automatic rolling straight improving the efficiency greatly
    5. Heat treatment to obtain work pieces with different properties by changing their internal microstructure or surface chemical composition.
    6. Cylindrical degree can be controlled within 0.03mm and the surface roughness is up to 0.4 by honing with range:φ40mm-φ450mm and longest length: 12000mm
    7. Machining processes to obtain high precision parts with complex shapes strictly according to the detailed drawings.
    8. Electroplating production process fulfills the functional and ornamental requirements for coating work pieces of different dimensions according to specific application requirements.
    9. Cleaning all the parts by automatic cleaning machine in the special solution and under special temperature control effectively.
    10. All the parts are assembled into complete cylinders according to the strict assembly instructions by skillful workers in dust-free workshop.
    11. Do proof pressure and performance tests to check whether the cylinders can operate smoothly and stably under the specified pressure with no leakage and deformation.
    12. Do the painting including high quality primer and topcoat to obtain beautiful appearance and protect the cylinders against the anticorrosion.
    13. Wooden pallet or boxes packing with plastic films wrapped on the surface, suitable for long-time sea transport.


    product description:

    NO Cylinder bore The diameter of rod stroke Mounting distance
    FT800.55A.012 80 32 200 535
    TB600.55B.2a 75 32 110 423
    TB600.55C.2a 75 32 110 423
    FT700.55D.011 100 40 200 516
    FT1004.55.8 90 35 200 535
    TG1204.551.1 100 40 185 535
    TG1854.551.2 110 70 182 535
    TG1854.551.3 110 70 182 535



    Quality Control:

    1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection

    2. Process Inspection: First Inspection, Random Inspection, Handover Inspection

    3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test

    4. Type Inspection

    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.

    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities

    Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery

    Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery

    Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery

    Harvesters Double Acting Telescopic Hydraulic Cylinder for Agricultural Machinery

    FAQ:
    1.are you a manufacturer?
    Yes, we focus on the hydraulic industry for 15 years.
    We are professional manufacturer in hydraulic. We will provide competitive price.

    2.What is your warranty?
    Our products are all available for one-year free warranty and product lifetime consulting service.

    3.How to ship your product?
    We are transported by sea, by air or by international express.
    According to your needs.

    4. Do you support OEM service?
    Yes. OEM service is available.
    We are pleased to process according to the customer's drawings.

    5. Is your design reasonable?
    We have professional R&D team with rich design experience.
    We also establish strict but scientific product testing system so that products have perfect performance.

    6. How to choose which model hydraulic cylinder to buy?
    Please kindly send us your drawings, models or providing us your parameters and
    specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length, vehicle body length, etc. We can determine the most suitable model for you.

    7. How long it will take from ordering to delivering?
    It depends on the ordering quantity. Generally, we will take 15-30days. If there are any changes, we will inform you in time.
