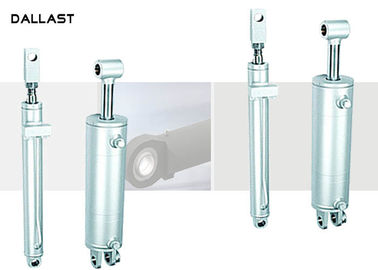

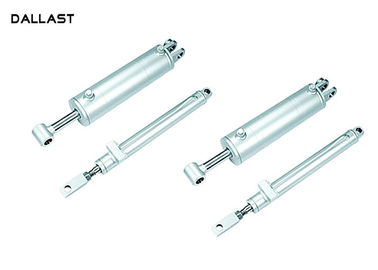

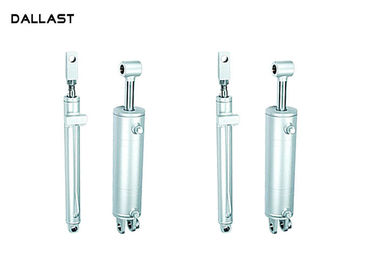

3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg

3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg

    • 3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg
    • 3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg
    • 3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg
  • 3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Condition: New Transmission: Hydraulic Transmission
    Duty: Heavy Material: Carbon Steel
    Bore Dia: 90 Mm Application: Trucks,Forklift,Crane,Loader, Road Machinery
    Speed: 0.25 Meters Per Second Stroke: 655mm
    High Light:

    double acting hydraulic ram

    ,

    double rod hydraulic cylinder

    3000Psi Hollow Bore Stainless Steel Hydraulic Cylinders With Servo Sensor Sfhsg



    The cylinder SFHSG series had magnetostrictive displacement sensor inside and with compact structure. The installation place is near to the normal cylinders.
    Based on the character of servo cylinder,
    1. we improved the design of sealing system, let the piston rod get the best oil film, to ensure the dynamic quality of servo cylinder under high pressure and bad condition.
    2. Regarding the material of piston rod, we changed normal standard to higher standard and chroming, to improve the performance of anti-bending, anti-rust, wear-resisting and anti-damage.
    3. Improve the surface roughness grade of cylinder bore and piston rod, satisfy the comprehensive performance of servo cylinder with low friction, no crawling and fast response. To improve the reliability and service life.





    Product Application



    The product can be used on:
    Agricultural handling equipment, such as agricultural tractors, agricultural carriage car, agricultural fork lift truck. Construction engineering machinery: bulldozer,grader),scraper),loader),single bucket loader,drilling machine,soil and rock mechanical and so on
    Usage:
    The product can be used on Vehicle machinery), such as tractor, forklift, dump truck, rescue vehicle and so on. Also, be used on tillage machinery, disc plough, rotary cultivators, disc harrow, paddy field harrow, cultivator.




    Hydraulic Cylinder

    (we produce as per client’s drawing or design with technical requirements.)

    Stroke 50mm to 16000mm Bore 40mm to 1000mm (1 ½’’ – 40’’)
    Shaft 12mm to 500mm (½’’ -20’’) Work pressure

    16Mpa to 70Mpa (2250 PSI – 10150 PSI)
    Seal Hallite, Parker, Merkel, DingZing, etc.
    Paint

    Red, Grey, Yellow, Black, etc.
    Material
    St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
    Tips:

    OEM service provided.

    We also can design by ourselves.

    Certificate ABS, Lloyds, SGS, etc. Package: Bubble-wrap packing, then in wooden case.





    Advantages

    Very reliable anti-leakage features

    Consistent, temperature-independent, material-friendly damping

    Visually appealing and robust construction

    For use under the harshest conditions

    Low-temperature service

    Long bearing life

    Good cost-effectiveness for the customer

    Heavy-duty design with smooth radius transitions

    Can be used for high bearing load



    Quality Control:
    1. The mechanical properties and chemical elements of the raw material will be inspected to check whether qualified after entering the warehouse.
    2. Chemical composition inspection of raw materials, Test the chemical composition of metallic materials, such as C, Si, Mn, P, S, Cr, Ni and other elements. Mainly for raw materials incoming inspection, by testing whether the material qualified, receiving materials.
    3. Metallographic analysis of metal materials is usually the raw materials, such as copper, iron, aluminum, magnesium, zinc, titanium, etc., for the processing of structural parts and finished product evaluation, through the metallographic analysis, You can find a variety of possible reasons for failure analysis in time, Prediction and analysis the characteristics of metallic materials and materials, Study material surface, and internal defects, and to improve and verify the process technology of the material;
    4. Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing



    3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg

    3000Psi Hollow Bore Double Acting Hydraulic Cylinder With Servo Sensor Sfhsg
