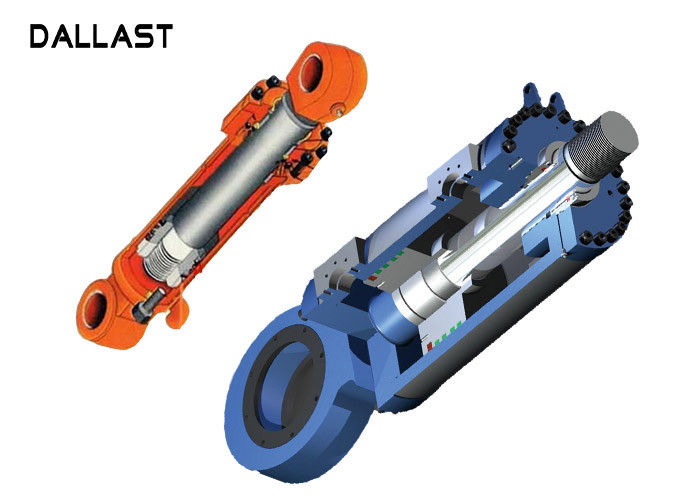

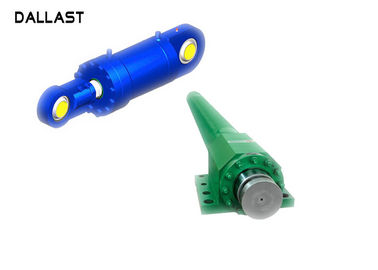

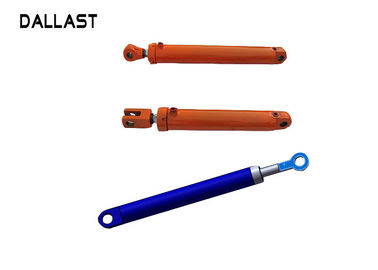

Short Stroke Double Acting Hydraulic Cylinder Stainless Steel Piston Rod Oil Cylinder RAM

Double-Acting Short Stroke Stainless Steel Piston Rod Hydraulic Oil Cylinder RAM

We can supply any type of such cylinders for you if needed, just send us the drawings.

Send us your drawings and the main parameters:
A.
1. bore size
2. stroke length
3. rod diameter
4. mounting type
5. mounting length
6. paint color requirement

B. the pruduction application description details
1. type of machine (loader, steer loader, excavator and ect.)
2. type of function (hoist, swing, steering, and ect.)
3. type of struction (piston, telescopic)
4. single or double acting
5. operating pressure

How Double Acting Hydraulic Cylinders Work and Their Uses

With double acting hydraulic cylinders, the fluid acts on both sides of the piston, alternating between each side. They can be attached to external devices by using a gland to prevent fluid escape. Double acting cylinders have two ends that are supplied with hydraulic fluid, which is used to retract and extend the piston.

Warranty and Guarantee:

1. All the goods are inspected before shipment, so if you are not satisfied with the purchase, you can exchange the items in one week and you must contact us within 24 hours of the receipt of your purchase

2. The shipping and handling charge is not refundable, and customer should be responsible for all the charges of returning and reshipping.

3. All return items must be in its original conditions, including box and accessories. Men made defects are not guaranteed, such as broken, scratched and so on.

4. For any items, please send by EMS or your local post when send back.

Cylinder details:
1. Mounting type: trunnion, flange, earring, according to your demand;
2. Seal: use Parker, NOK and other famous seal parts to ensure the quality.
3. Piston rod: 20#, 45# steel with high frequency quenching;
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder;
5. Size: bore:20-500 mm (7/8"- 20"); stroke can reach to 3000mm;
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.
