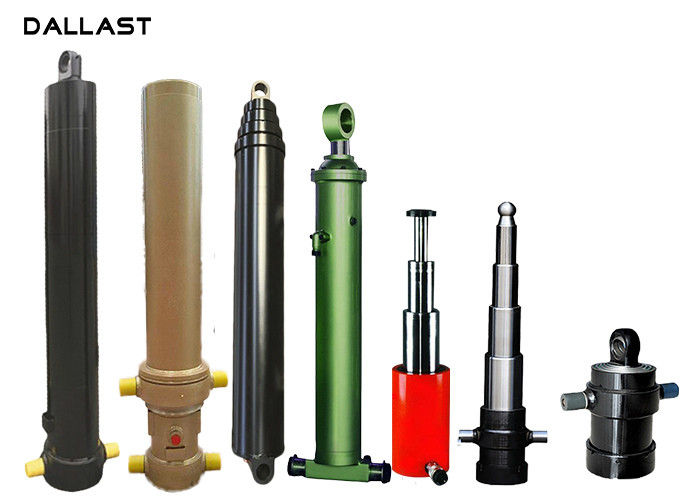

Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder

Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder

    • Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder
    • Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder
  • Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder

    Product Details:

    Place of Origin: shangdong
    Brand Name: DALLAST
    Certification: ISO9001-2009 ,TS16949
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PCS
    Price: Negotiable
    Packaging Details: shrink film, pallet, plywood case and carton
    Delivery Time: 20- 25 days after down payment
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 3000PCS per year
    Contact Now
    Detailed Product Description
    Temperature: -30°C - +100°C Cylinder Type: For Press Cylinder
    Structure: Multi-Stage Cylinder Product Name: Hydraulic Cylinder Hydraulic RAM Hydraulic Oil Cylinder
    Work Medium: Hydraulic Oil Warranty: 12 Months After Shipping Arrival
    High Light:

    dump truck hydraulic ram

    ,

    dump truck telescopic cylinder

    Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder

    Products Discription:

         Retractable hydraulic cylinder can get a longer working stroke with multi-stage sleeve-shaped piston rod hydraulic cylinder, telescopic hydraulic cylinder, also known as multi-stage hydraulic cylinder.
    Telescopic hydraulic cylinder is composed of two or more piston hydraulic cylinder set, the piston rod of the previous stage piston cylinder is the cylinder of the latter piston cylinder.
         When pressure oil enters from the rodless chamber, the cylinder with the largest effective area of the piston starts to protrude. When the line reaches the end point, the cylinder with the effective area of the piston begins to protrude. Telescopic hydraulic stretching out in order from large to small in order to obtain a long working stroke, the effective cylinder extending the smaller the area, the faster the rate of extension.                      Therefore, the slow out faster, the corresponding hydraulic thrust from large to small; this thrust, speed changes, is suitable for a variety of automatic loading and unloading machinery on the thrust and speed requirements. The order of retraction is generally followed by small to large retraction, the retraction of the axial length is shorter, smaller footprint, compact structure. Commonly used in construction machinery and other mobile machinery, such as cranes, dump trucks and other hydraulic systems.



    Application: The Hydraulic Cylinders can be used for Dump Truck, Tipper Truck, Trailer, Agricultural Machinery, Engineering Machinery, Garbage Truck, Landing Platform etc;



    HS Code 8412210000
    Material Alloy Steel,Carbon steel,27SiMn
    Seal Parker, Merkel, Hallite, Kaden
    Coating All tubes are chrome plated
    Working pressure 16mpa-32mpa
    Stroke 2980mm-12000mm
    Color red black blue gray, according to customer's requirement
    Mounting Type Earring-trunnion, double trunnion, double earring (eye end)
    Main export market

    Experience in export North America, Australia, Asia, Middle East, Africa;

    Delivery time 20-25 days after down payment
    Honed tube 20-2000mm, Heat treatment, honing, rolling
    Piston rod 10-1500mm,tempering, plated nickel, Chrome or ceramic
    Work medium Hydraulic Oil



    Advantage:

    • Professional, skilled, reliable.
    • One-stop total solution
    • Ready stock goods with fast delivery
    • Customizable: Non-standard sizes are also available
    • Small quantity is acceptable
    • Refund or replacement for any product fault
    • Professional manufacturer supplier of Hydraulic Cylinders for more than 22 years;
    • Hydraulic Cylinders Certification ISO9001:2009, SGS, TS16949, RoHS, CNAS Certification;
    • We are most of famous manufacturing company in telescopic cylinders.
    FC Type Hydraulic Cylinder
    MODEL NO. Stage Largest Stage Diameter Stroke The largest sleeve OD Mounting distance
    (mm) (mm) (mm) (mm)
    FC-3-110-3205 3 110 3205 168 343
    FC-3-110-3460 3 110 3460 168 343
    FC-3-129-2980 3 129 2980 218 343
    FC-3-129-3205 3 129 3205 218 343
    FC-3-129-3460 3 129 3460 218 343
    FC-3-129-3880 3 129 3880 218 343
    FC-3-129-4270 3 129 4270 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-4280 4 129 4280 218 343
    FC-4-129-5180 4 129 5180 218 343
    FC-4-149-3680 4 149 3680 218 343
    FC-4-149-3980 4 149 3980 218 343
    FC-4-149-4280 4 149 4280 244 343
    FC-4-149-4620 4 149 4620 244 343
    FC-4-149-4940 4 149 4940 244 343
    FC-4-149-5180 4 149 5180 244 343
    FC-4-149-5460 4 149 5460 244 343
    FC-4-169-4280 4 169 4280 244 343
    FC-4-169-4620 4 169 4620 244 343
    FC-4-169-4940 4 169 4940 244 343
    FC-4-169-5180 4 169 5180 244 343
    FC-4-169-5460 4 169 5460 244 343
    FC-5-169-5355 5 169 5355 244 343
    FC-5-169-5780 5 169 5780 244 343
    FC-5-169-6180 5 169 6180 244 343
    FC-5-169-6830 5 169 6830 244 343
    FC-5-169-7130 5 169 7130 244 343
    FC-5-169-7630 5 169 7630 244 343
    FC-5-169-8130 5 169 8130 244 343
    FC-5-169-9030 5 169 9030 244 343
    FC-5-169-9530 5 169 9530 244 343
    FC-4-191-5460 4 191 5460 274 343
    FC-5-191-5780 5 191 5780 274 343
    FC-5-191-6180 5 191 6180 274 343
    FC-5-191-7130 5 191 7130 274 343
    FC-5-191-7630 5 191 7630 274 343
    FC-5-191-8130 5 191 8130 274 343
    FC-5-191-9030 5 191 9030 274 343
    FC-5-191-9530 5 191 9530 274 343
    FC-5-214-7610 5 214 7610 274 343
    FC-5-214-9030 5 214 9030 274 343



    MODEL NO. Stage First Stage Diameter Stroke Largest Sleeve OD Closed length Mounting distance
    [mm] [mm] [mm] [mm] [mm]
    FC-3-107-2855 3 107 2855 152 1268 311
    FC-3-107-3115 3 107 3115 152 1368 311
    FC-3-107-3265 3 107 3265 152 1418 311
    FC-3-107-3415 3 107 3415 152 1468 311
    FC-3-107-3715 3 107 3715 152 1568 311
    FC-3-126-3230 3 126 3230 219 1403 343
    FC-3-126-3680 3 126 3680 219 1553 343
    FC-3-126-3830 3 126 3830 219 1603 343
    FC-3-126-4400 3 126 4400 219 1803 343
    FC-4-126-4145 4 126 4145 219 1357 343
    FC-4-126-4345 4 126 4345 219 1407 343
    FC-4-126-4545 4 126 4545 219 1457 343
    FC-4-126-4745 4 126 4745 219 1507 343
    FC-4-126-4945 4 126 4945 219 1557 343
    FC-4-126-5145 4 126 5145 219 1607 343
    FC-3-145-3230 3 145 3230 219 1403 343
    FC-3-145-3680 3 145 3680 219 1553 343
    FC-3-145-3830 3 145 3830 219 1603 343
    FC-4-145-4110 4 145 4110 219 1357 343
    FC-4-145-4310 4 145 4310 219 1407 343
    FC-4-145-4510 4 145 4510 219 1457 343
    FC-4-145-4710 4 145 4710 219 1507 343
    FC-4-145-4910 4 145 4910 219 1557 343
    FC-4-145-5110 4 145 5110 219 1607 343
    FC-4-145-5310 4 145 5310 219 1657 343
    FC-4-145-5865 4 145 5865 219 1807 343
    FC-5-145-4310 5 145 4310 219 1161 343
    FC-4-165-4110 4 165 4110 244 1347 343
    FC-4-165-4510 4 165 4510 244 1447 343
    FC-4-165-4710 4 165 4710 244 1497 343
    FC-4-165-4910 4 165 4910 244 1547 343
    FC-4-165-5110 4 165 5110 244 1597 343
    FC-4-165-5310 4 165 5310 244 1647 343
    FC-4-165-5865 4 165 5865 244 1797 343
    FC-5-165-5135 5 165 5135 244 1351 343
    FC-5-165-5385 5 165 5385 244 1401 343
    FC-5-165-5635 5 165 5635 244 1451 343
    FC-5-165-6135 5 165 6135 244 1551 343
    FC-5-165-6385 5 165 6385 244 1601 343
    FC-5-165-6825 5 165 6825 244 1701 343
    FC-5-165-7075 5 165 7075 244 1751 343
    FC-5-165-7325 5 165 7325 244 1801 343
    FC-5-165-7575 5 165 7575 244 1851 343
    FC-5-165-7825 5 165 7825 244 1901 343
    FC-5-165-8185 5 165 8185 244 2001 343
    FC-5-165-8435 5 165 8435 244 2051 343
    FC-5-187-5135 5 187 5135 244 1351 343
    FC-5-187-5385 5 187 5385 244 1401 343
    FC-5-187-5635 5 187 5635 244 1451 343
    FC-5-187-6135 5 187 6135 244 1551 343
    FC-5-187-6385 5 187 6385 244 1601 343
    FC-5-187-6825 5 187 6825 244 1701 343
    FC-5-187-7075 5 187 7075 244 1751 343
    FC-5-187-7325 5 187 7325 244 1801 343
    FC-5-187-7825 5 187 7825 244 1901 343
    FC-5-187-8185 5 187 8185 244 2001 343
    FC-5-187-8435 5 187 8435 244 2051 343
    FC-5-187-8935 5 187 8935 244 2151 343
    FC-5-187-9185 5 187 9185 244 2201 343
    FC-6-187-8790 6 187 8790 244 1805 843
    FC-6-187-9085 6 187 9085 244 1855 343
    FC-7-187-8535 7 187 8535 244 1559 343
    FC-5-210-6135 5 210 6135 273 1551 343
    FC-5-210-6825 5 210 6825 273 1701 343
    FC-5-210-7075 5 210 7075 273 1751 343
    FC-5-210-7325 5 210 7325 273 1801 343
    FC-5-210-7825 5 210 7825 273 1901 343
    FC-5-210-9185 5 210 9185 273 2201 343



    FE Type hydraulic cylinder
    Model Stage Largest Stage Diameter Stroke Mounting distance
    (mm) (mm) (mm)
    FE-3-110-3205 3 110 3205 1449
    FE-3-110-3460 3 110 3460 1609
    FE-3-129-3460 3 129 3460 1449
    FE-3-129-3880 3 129 3880 1609
    FE-3-149-2900 3 149 2900 1320
    FE-3-149-3200 3 149 3200 1420
    FE-3-149-3500 3 149 3500 1520
    FE-3-149-3880 3 149 3880 1644
    FE-4-149-4280 4 149 4280 1450
    FE-4-149-4940 4 149 4940 1529
    FE-4-149-4620 4 149 4620 1484
    FE-4-169-4280 4 169 4280 1394
    FE-4-169-4450 4 169 4450 1437
    FE-4-169-4620 4 169 4620 1479
    FE-4-169-4940 4 169 4940 1529
    FE-4-169-5000 4 169 5000 1574
    FE-4-169-5180 4 169 5180 1604
    FE-5-169-5355 5 169 5355 1394
    FE-5-169-5780 5 169 5780 1559
    FE-5-169-6180 5 169 6180 1527
    FE-5-169-6480 5 169 6480 1604
    FE-5-169-6830 5 169 6830 1674
    FE-5-169-7130 5 169 7130 1769
    FE-5-191-6180 5 191 6180 1527
    FE-5-191-9030 5 191 9030 2177
    FE-6-191-7420 6 191 7420 1677
    FE-5-214-6830 5 214 6830 1662
    FE-5-214-7130 5 214 7130 1722





    Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder
     Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder
     Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder


     Single Acting Customized Telescopic Dumper Tipper Trailer Hydraulic Cylinder
