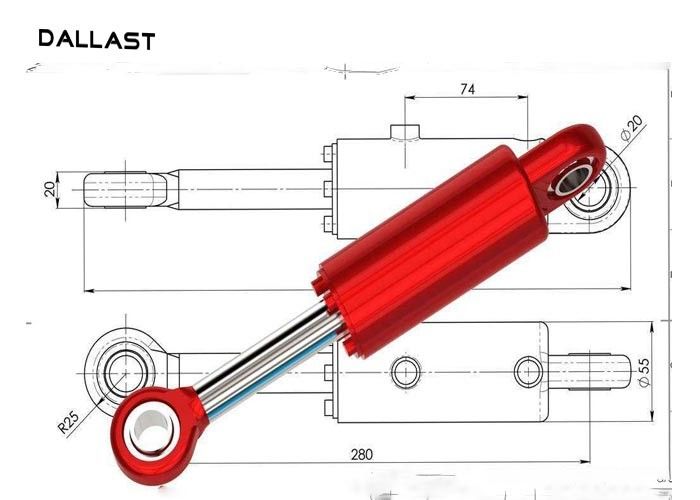

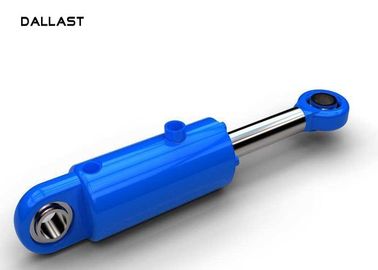

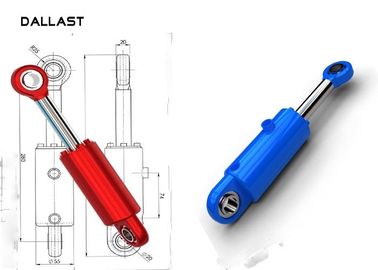

Double Acting Tie Rod Hydraulic Cylinder Tractor Loader Mini Push Pull

Double Acting Tie Rod Hydraulic Cylinder Tractor Loader Mini Push Pull

    • Double Acting Tie Rod Hydraulic Cylinder Tractor Loader Mini Push Pull
    • Double Acting Tie Rod Hydraulic Cylinder Tractor Loader Mini Push Pull
    • Double Acting Tie Rod Hydraulic Cylinder Tractor Loader Mini Push Pull
  • Double Acting Tie Rod Hydraulic Cylinder Tractor Loader Mini Push Pull

    Product Details:

    Place of Origin: Shandong China
    Brand Name: Dallast
    Certification: GS CE ISO9001
    Model Number: Customized

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotation
    Packaging Details: Carton or According to Customer's Require
    Delivery Time: 15-25 days
    Payment Terms: T/T, Western Union, D/A, D/P, L/C
    Supply Ability: 50000 Pieces/Per year
    Contact Now
    Detailed Product Description
    Manufacturing: OEM, Sample Body Material: Steel,Stainless Steel
    Place Of Origin: China (Mainland) Applications: For Farming,mining,industry
    OEM Service: Available Test: 100% Inspection
    Certificate: CE, ISO9001:2008 Model Number: Hydraulic Cylinder
    High Light:

    double acting hydraulic ram

    ,

    double rod hydraulic cylinder

    Tractor Loader Mini Push Pull Double Acting Tie Rod Hydraulic Cylinder



    Specification

    Features customer hydraulic cylinder
    Bore Diameter 2'-60'/50-1500mm
    Rod Diameter 1' - 60'/25 -1500 mm
    Wall Thickness 0.1'-4'/3-100 mm
    Max Stroke 366'/9280 mm
    Max Pressure 9600 psi/600 bar
    Test Pressure 14500 psi/1000 bar
    Material 20#,40#,45#,16Mn,27SiMn,etc
    Seal Kits Hallite,Parker,NOK,SKF,DICHTOMATIK,Trelleborg,Merkel,etc
    Bore Roughness Ra 0.4-1.6mm
    Coating hard chrome
    Purpose Construction,metallurgical,mining,agricultural,forestry machinery,etc
    OEM Yes
    MOQ 1 Piece
    Certificates

    ISO9001,ISO/TS16949,ABS,AQA,API,CCS,CCRI,DNV





    Product description:

    A. Excavator hydraulic cylinders

    boom cylinder, arm cylinder, bucket cylinder

    Komatsu, Cat, Hitachi, Hyundai, Kobelco, Kato, Sumitomo, Doosan, Volvo



    B. Hydraulic cylinder for oil field, marine, industry, agriculture, construction, backhoe, etc

    1.Hydraulic cylinder is the most important component in hydraulic systems, it will transfer hydraulic energy into mechanical energy, and is matched with various transmission mechanism, to complete a variety of mechanical motion.

    2.Hydraulic cylinder has the advantages of simple structure, large output force, stable and reliable performance, easy maintenance, wide application.



    C. Hydraulic cylinder for dump truck, trail truck, garbage truck, crane

    1.Sinciput telescopic hydraulic cylinder is used in lager-tonnage sinciput hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.

    2.Side-dumping telescopic hydraulic cylinder is used in large-tonnage side-dumping hydraulic system. Together with hydraulic pump, change valve, and limit valve, it can realize the function of lifting pausing and falling. And the product can be designed and made according to the demands of customers.



    D. Hydraulic cylinder for coal mine, log splitter, brush cutter, dock leveler, metallurgy

    1. Single telescopic column of hydraulic support is a part which joins the beam and base, bearing the load of crown plate. It is the main load bearing part, including two forms: all-hydraulic and mechanically lengthening.

    2. Double telescopic column of hydraulic support is a part which joins the beam and base, bearing the load of crown plate. It is the main load bearing part, including two

    forms: all-hydraulic and mechanically lengthening.

    3. Hydraulic support lifting jack is the main weight-bearing element which undertakes the movement of the hydraulic support and each part. The product is mostly single telescopic, double-act, piston type hydraulic cylinder, widely used in the hydraulic support for traction, side thrust, protection and assistance, balance, support adjustment, etc.

    4. hydraulic cylinder can be used for dump truck, oil field, marine, drilling machine, industry, elevator , workover rig , mining, agriculture, industry, construction ,etc.





    Program before Delivery

    Trial Operation Test → Start-up Pressure Test → Pressure-Tight Test → Leak Test → Full Stroke Test → Buffer Test → Testing the Effect of Limit → Load Efficiency Test→Reliability Test



    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.



    Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.



    Double Acting Tie Rod Hydraulic Cylinder Tractor Loader Mini Push Pull
