OEM Double Acting Hydraulic Cylinder Chromed Piston Rod for Tractor

China OEM Double Acting Hydraulic Cylinder Chromed Piston Rod for Tractor supplier
OEM Double Acting Hydraulic Cylinder Chromed Piston Rod for Tractor supplier OEM Double Acting Hydraulic Cylinder Chromed Piston Rod for Tractor supplier OEM Double Acting Hydraulic Cylinder Chromed Piston Rod for Tractor supplier

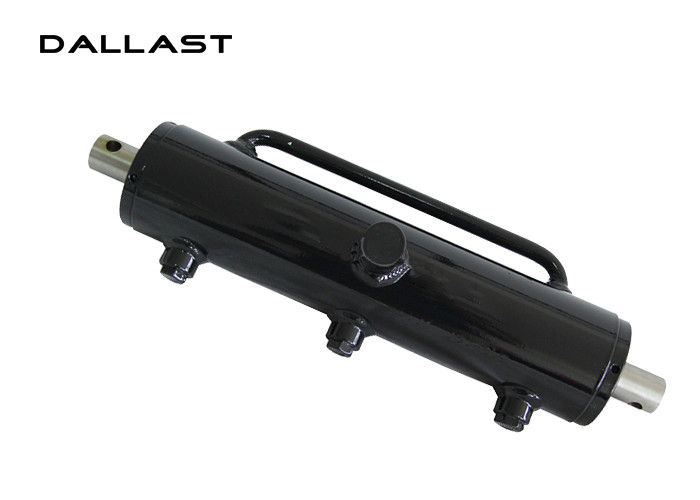

Large Image :  OEM Double Acting Hydraulic Cylinder Chromed Piston Rod for Tractor

Product Details:

Place of Origin: Shandong China
Brand Name: Dallast
Certification: GS CE ISO9001
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotation
Packaging Details: Carton or According to Customer's Require
Delivery Time: 15-25 days
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 50000 Pieces/Per year
Detailed Product Description
Shaft Diameter: Optional Work Temperature: Normal Temperature
Rod Seal: Polyurethane U-Cup Model Number: OEM
Service: After-sale Service Working Temperature: -30℃-80℃
High Light:

double acting hydraulic ram

,

double rod hydraulic cylinder

OEM Double Acting Hydraulic Cylinder Chromed Piston Rod for Tractor



Key Specifications/Special Features:

Features:
2T series: 2500PSI rated pressured, 4000PSI testing pressure
3T series: 3000PSI rated pressured, 6000PSI testing pressure
Widely used in agricultural machinery and other similar machines
Imported world famous brands and Chinese brands sealing system
High quality cold drawn steel tube, with good rigidity
CNC rolled tube inner surface, with roughness of 0.2-0.4um
Superior strength chrome-plated rod, anti-corrosion for a long life
High grade ductile iron bar directly machined gland and piston, with high strength
High tensile strength tie rods with rolled threads for durability
Dual base-plate oil ports
100% factory tested under at least 1.5 times of the rated pressure



We can make hydraulic cylinder design,Please provide us the following technical parameters:

  • Bore diameter;

  • Rod diameter;

  • Stroke;

  • Working pressure;

  • Front and back end mount type;

  • Using frequency;

  • Work Environment;

Certainly, you can provide drawing and product photos so that we can understand your meaning more conveniently, or you can also send us sample and we produce for you according to your sample.
We firmly believe that quality products from the outstanding design and concept,engineers with rich experience in our strong technical team. Analyzes, calculations, strength check and motion simulation in variety of software to make our design more close to actual working conditions, We will consider various factors in the design stage to avoid each risk of project failure. Our design and products could perfectly match customers' varied needs.



Materials:
Gland-high grade ductile iron
Tube-high quality steel tube, precision skived and rolled
Tube seal-O-ring with anti-extrusion backup washer
Tie rod-high tensile hardened steel
Rod-chrome plated C45 steel
Rod clevis-high grade ductile iron
End cap-high grand ductile iron
Piston-high grade ductile iron, precision machined
Piston seal-crown seal or glass filled nylon wear ring
Rod wiper-metal encased nitrile rubber
Rod seal-urethane
Ports-NPT(SAE optional)
Colors-red, gloss black, or as required



Farm Tractor Hydraulic Cylinder
Model Bore Dia
(mm)

Rod Dia
(mm)
Stroke
(mm)

Mounting distance
(mm)
FT800.55A.012 80 32 200 535
TB600.55B.2a 75 32 110 423
TB600.55C.2a 75 32 110 423
FT700.55D.011 100 40 200 516
FT1004.55.8 90 35 200 535
TG1204.551.1 100 40 185 535
TG1854.551.2 110 70 182 535
TG1854.551.3 110 70 182 535



FAQ:

How to make payment?
Once order confirmed, we will prepare proforma invoice with our banking details.



What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.



What is the warranty?
12 months against B/L date.



What is your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



How much is our minimum order quantity?
Our minimum quantity is 1 Piece.
