|Place of Origin:||Shandong|
|Certification:||Gs, RoHS, Ce, ISO9001|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||Plywood Box or Pallet|
|Delivery Time:||15-25 Days|
|Payment Terms:||T/T, Western Union, D/P, L/C|
|Supply Ability:||50,000 Pieces/Year|
|Material:||Stainless Steel||Color:||Red, Black, Green, Etc.|
|Seals:||Parker, Merkel, Hallite||Usage:||Automation And Control|
|Working Pressure:||16-32 Mpa||Structure:||Piston Cylinder|
|Hardness:||HRC 45-55||Standard:||Standard, Nonstandard|

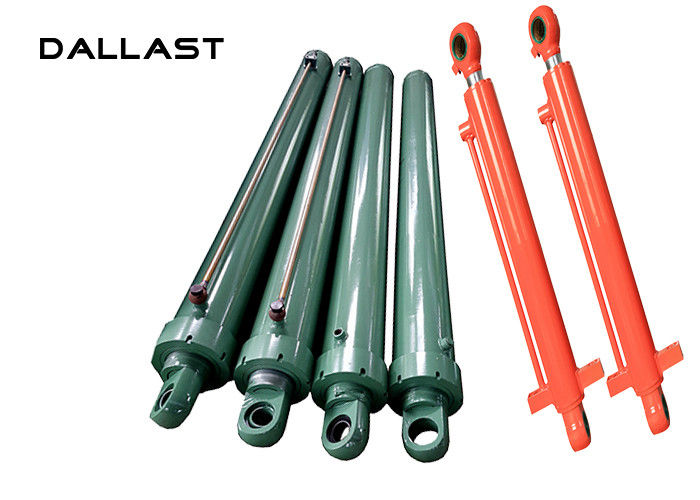

Customized Double Rod End Hydraulic Cylinder for Garbage Truck
Product Information :
The utility model relates to a multistage double acting hydraulic cylinder, which comprises a cylinder, piston, piston rod and cylinder, including the final stage of several levels within the cylinder, the piston rod is arranged in a final cylinder, cylinder bottom is provided with an oil inlet hole and the other end is provided with an oil hole; the external cylinder at one end in each stage close to the oil inlet hole of the fixed piston within the cylinder, each level is provided with a guide hole, the oil guide hole is a through hole conduction within the cylinder inside and outside, and the two outlet at the same side of the piston, the piston, located in the outer wall of the inner wall of the adjacent outlet located in the outlet located far away from the end of the piston. The oil guide hole inner cavity and the outer cavity of each level within the cylinder, two oil outlet are fixed on a cylinder, oil pipe and the oil inlet is connected with tubing made of rigid tubing, with the reciprocating motion of the piston rod and the ultimate elongation, shortening and bending, avoid late stage piston rod and tubing the reciprocating motion of the collision interference and wear.
Double acting single rod piston hydraulic cylinder is the actuator agency of reciprocating linear motion in hydraulic system, it has characters like: simple structure, high pressure, reliable performance, easy to assembly and disassembly, easy to maintenance, with buffer device and various connection types etc. it is broadly used in engineering machine, mining organizations, lifting transportation equipment, metallurgy and other industries.
We manufacture all kinds of hydraulic cylinders.We also make customer hydraulic cylinders according to your requirements.
To get an immediate quotation,please provide us with the following necessary parameters:
1) Bore diameter
2) Piston rod diameter
3) Stroke length
4) Working pressure
5) Mounting method
( we produce as per client’s drawing or design with technical requirements.)

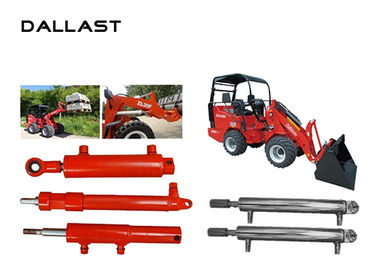

|Application:||Agricultural Machinery, Agricultural Trucks, Garbage Truck|
|Stroke:||200mm to 10000mm|
|Bore:||40mm to 800mm|
|Shaft:||12mm to 500mm|
|Work pressure:||16Mpa to 62Mpa (2250 PSI – 10150 PSI)|
|Seal:||Hallite, Parker, Merkel, DingZing, etc.|
|Paint:||Red, Grey, Yellow, Black, etc.|
|Certificate:||Gs, RoHS, Ce, ISO9001|
|Package:||Plywood Box or Pallet|
OEM service provided.
We also can design by ourselves.
Hydraulic cylinders are an important industrial tool used in machinery, manufacturing, and a number of other functions. The basic design of a hydraulic cylinder has changed little over the years. Hydraulic cylinders have enormous push/pull power and can haul, dig, push, drill, and move heavy objects and materials. The work by exploiting the mechanics of pressure exerted on the piston. The force is equal to the surface area multiplied by pounds per square inch of pressure.
Company Profile :
Dallast Technology Co., Ltd is a professional manufacturer hydraulic power pack/unit, hydraulic cylinder, cylinder rod, cylinder tube, linear actuator, actuator for solar tracker, superjack linear satellite actuator for plasma lcd tv lift, penumatic linear actuator for medical bed, die casting, hydrauliv valve and manifold, wheelchair autolift, tyre mould, and so on.
Our hydraulic power pack widely used in our lifting equipment, agricultural machine, medical machine, marine equipment, off shore, dock leveler, car tailgate, scissor lift, etc.
Q1. What are the same aspects of your cylinder with Hyva cylinder?
1. Same inside structure.
2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's
Q2. Can we design our own package or print our own logo?
Yes! Package and logo will be made according to your requirements.
Q3. Could we get small quantity samples?
Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.
Q4. How long is the production time?
Generally the production time is 15-25 days.
Q5. How long is your warranty period?
We offer 13 months warranty period after on board.

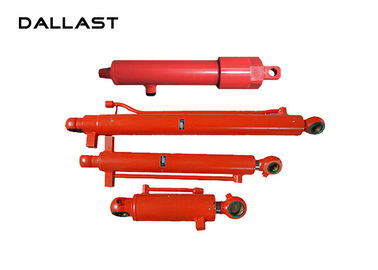

Product Show :
