Place of Origin: | Shandong |
Brand Name: | Dallast |
Certification: | Gs, RoHS, Ce, ISO9001 |
Model Number: | Customized |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | Negotiation |

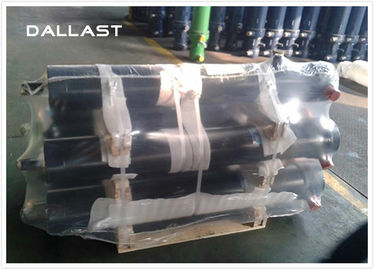

Packaging Details: | Plywood Box or Pallet |
Delivery Time: | 15-25 Days |
Payment Terms: | T/T, Western Union, D/P, L/C |
Supply Ability: | 50,000 Pieces/Year |
Acting Way: | Single Acting | Available Temperature: | -40℃ To 80℃ |
---|---|---|---|
Power: | Hydraulic Oil | Warranty: | 12 Months |
Usage: | Automation And Control | Surface Coating: | Sandblasting, Primer Paint, Middle Paint, Finish |
Origin: | Shandong, China | Type: | Several Types For Your Choice |
High Light: | single acting hydraulic ram,single acting telescopic hydraulic cylinders |
Customized Single Acting Hydraulic Welded Cylinder for Agricultural Machinery
A single acting hydraulic cylinder is a type of cylinder where the fluid utilizes only one side of the piston. This type of cylinder relies on springs, other cylinders, or some type of outside force to push the piston back to the other side or in the other direction. Single acting cylinders are usually found in lift truck masts.
Our hydraulic cylinders are offered in both tie rod and welded versions. The seals we use are designed to be heavy duty but not unattainable should an emergency repair be needed. The material we use to build our cylinders is of the highest quality and material specification reports are available. We offer many NFPA mounts and can make modifications based on customer needs.
Standard | Standard, Nonstandard |
Certificate | Gs, RoHS, Ce, ISO9001 |
Body Material | Alloy Steel, Stainless Steel etc. |
Pressure | 16Mpa-32Mpa |
Surface Treatment | Chrome Plating |
Service Range | Interchangeable with Hyva, Penta, Edbro |
Package | Shrink Film, Pallet, Plywood case and carton |
Warranty | One year after shipping arrival |
Delivery Time | 15-25 days after down payment |
Color | Red, Black, Blue etc. |
Cylinder Details:
1. Mounting type: trunnion, flange, earring, according to your demand;
2. Seal: use Parker, NOK and other famous seal parts to ensure the quality.
3. Piston rod: 20#, 45# steel with high frequency quenching;
4. Buffer function: you can choose to design with adjustable buffer to avoid impact of cylinder;
5. Size: bore:20-500mm(7/8"- 20"); stroke can reach to 3000mm;
6. Usually, it is easy and accurate to make samples according to your drawings, you can also send us samples for reference and for reproductions for your final approval.
hydraulic cylinder for engineering
1. Max stroke: 190" or 10000mm
2. Max bore ID: 32" or 800mm
3. Various structure form
Custom hydraulic cylinder (OEM):
Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers,but also we could make a design according to
customers’requirements . If you require our engineer to make a design , please advise us the
following specification :
1. Rated pressure
2. Working pressure
3. Test pressure
4. Working condition and environment ,for example ,temperature ,working frequency
5. Pulling force ,and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements .For example , brand ,seal material etc .
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example
Characteristics:
- Larger diameter, more lifting capacity.
- Max working pressure reaches 250 bar, better anti-pressure ability.
- Special material with high quality, high-precision, better anti-bending ability.27SiMn alloy steel, Chromed 30um thickness, hardening and tempering
- New model guide ring combined with lubricating material, guarantee smooth lifting.
- Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
- Maintenance-free support, longer working life.
- Integrated design, easy to maintain.
- 100% tested, guarantee high quality.
Company Profile :
Dallast Technology Co., Ltd established in 2002, Ours factory has been focused on hydraulic cylinder and power unit for 15 years. Ours hydraulic cylinder has been sold around the world. We mainly produce telescopic hydraulic cylinder for dump truck, hydraulic cylinder for trailer and other Machinery hydraulic cylinder. We can also produce hydraulic cylinder according to your drawing.
Parameters:

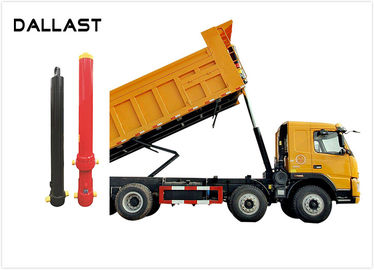

Front tipping telescopic hydraulic cylinder for dump truck related parameter:
Model | working pressure | Lifting capacity | Truck body | Lifting time |
129-3-3880 | 3000PSI | 33~54 tons | 4.6m,4.9m,5.2m | 13s |
149-3-3700 | 3000PSI | 48~71 tons | 4.6m,4.75m,4.9m | 17s |
149-3-4280 | 3000PSI | 50~73 tons | 5.2m,5.45m,5.7m | 21s |
149-4-4280 | 3000PSI | 36~55 tons | 5.5m,5.6m | 18s |
149-4-4640 | 3000PSI | 36~55 tons | 5.9m,5.95m,6m | 20s |
169-4-4280 | 3000PSI | 53~73 tons | 5.5m,5.6m | 22s |
169-4-4640 | 3000PSI | 52~82 tons | 5.6m,5.85m,6.1m | 19s |
169-4-5000 | 3000PSI | 50~83 tons | 6.2m,6.5m,6.8m | 22s |
169-4-5180 | 3000PSI | 50~83 tons | 6.2m,6.55m,6.9m | 23s |
169-4-5390 | 3000PSI | 51~82 tons | 6.2m,6.8m | 24s |
169-4-5460 | 3000PSI | 51~82 tons | 6.5m,6.9m,7.3m | 25s |
180-4-4280 | 3000PSI | 53~73 tons | 5.5m,5.6m | 22s |
180-4-4640 | 3000PSI | 52~82 tons | 5.6m,5.85m,6.1m | 19s |
180-4-5000 | 3000PSI | 50~83 tons | 6.2m,6.5m,6.8m | 22s |
180-4-5390 | 3000PSI | 51~82 tons | 6.2m,6.8m | 24s |
180-4-5780 | 3000PSI | 51~83 tons | 6.9m,7.3m,7.7m | 27s |
180-4-6000 | 3000PSI | 50~79 tons | 7.3m,7.8m,8.2m | 29s |
FAQ:
1. Are you a factory trading company?
Yes, we focus on the hydraulic industry for 15 years.
2. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send us your specifications and drawings.
3. Can I get samples to test before starting cooperation?
Of course.We would like produce sample hydraulic cylinder for your confirmation.
4. How many days will samples be finished?
Generally 5-7 days for samples making.
5. I want to see your hydraulic cylinders,where is your factory?
Our factory is located in Qingdao City,Shandong Province.
6. What’s your cylinder PPM?
5000 PPM. We do 100% inspection before delivery.
7. Have you been exported to overseas?
We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.
8. What is your warranty?
Our products are all available for one year free warranty and product lifetime consulting service.

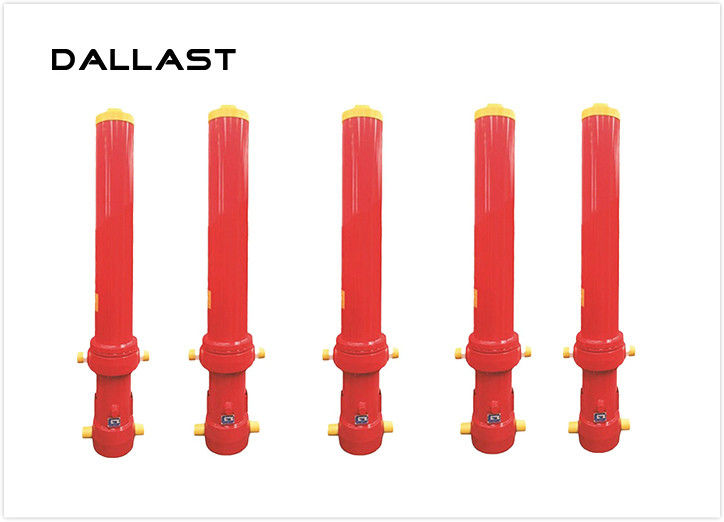

Product Show:
